In fact, this original more than 1 year ago to write a beginning, but unfortunately it is too lazy has not been completed, was to help my colleagues change a screen, I thought we could send reference to everyone, their own change screen is cheaper than the repair shop too Many, if the internal screen is in good condition, it can be recycled to get back part of the money. It's happiest to save money or something. Later, because someone saw someone send an original screen-changing screen, they never wrote it again. Why did you start writing this time? Because my colleague's 6P is broken again. . . This time, a new skill was added--a straight man bent on this, and we began to save the straight man.
1, replace the iPhone6Plus screen assemblyThere are not many photos for the second screen change. Originally, I would like to find the other friend who posted the original stickers. I think the most useful part is how to remove the screws. This part is the most valuable reference. Our approach is also basic. As a matter of course, the value friend is better than the picture I draw. . . However, I did not find that article, I will paste it again.
Since the popularity of large-screen mobile phones, more and more broken screen, Apple began to introduce 2.5D screens from the 6th, but also makes the probability of broken screens has increased a lot, since ancient times, more life-threatening. . . Fortunately, we have a omnipotent X treasure and do it yourself.

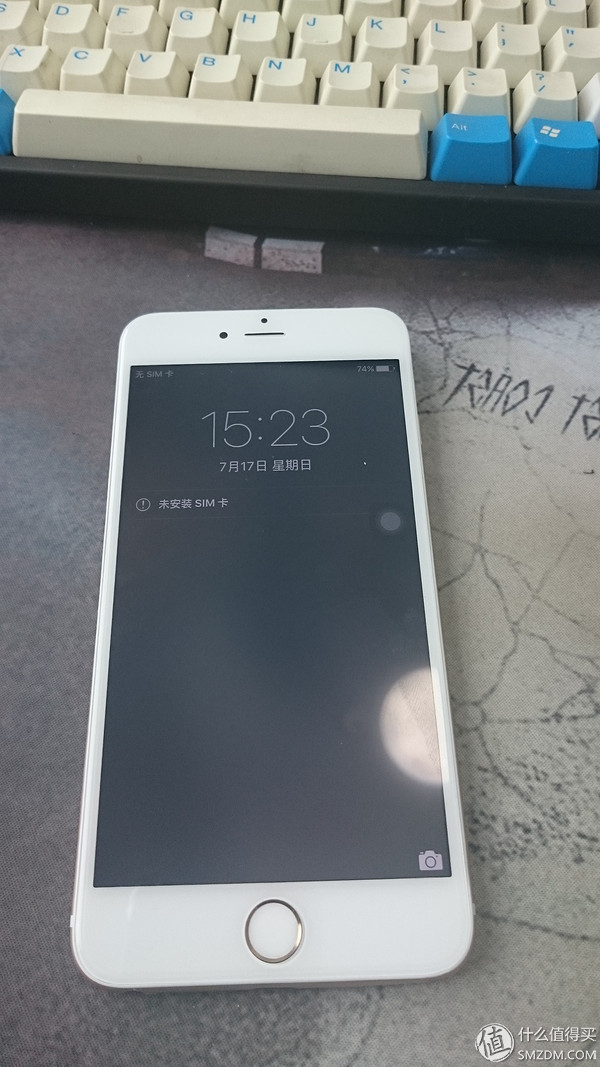

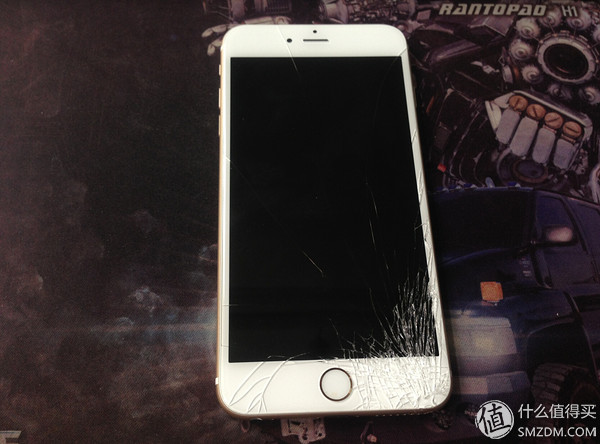

Today's protagonist

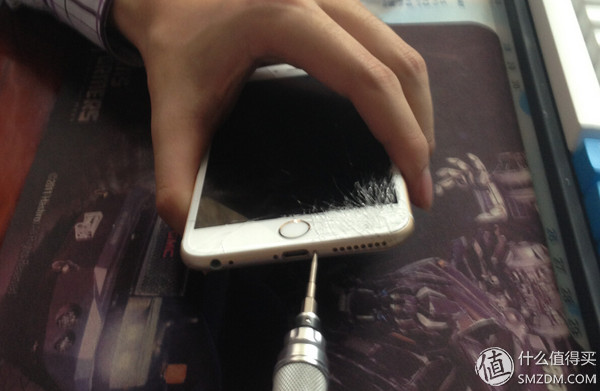

Demolition first and then say

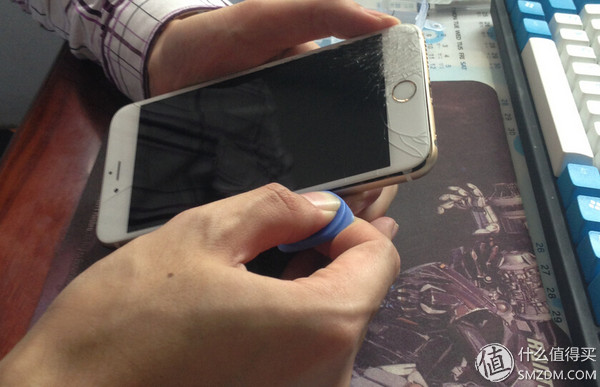

Because you did not bring a suction cup, you opened the screen from the crevice with a cymbal.

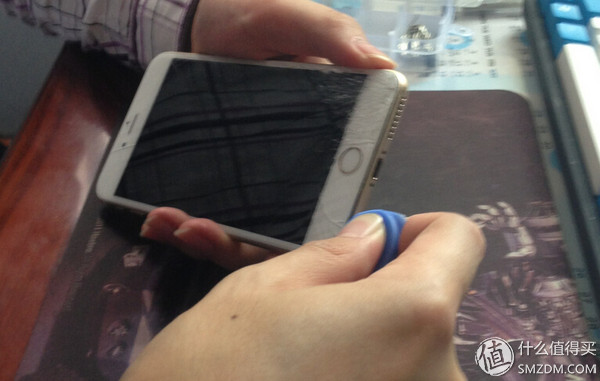

Extending both sides

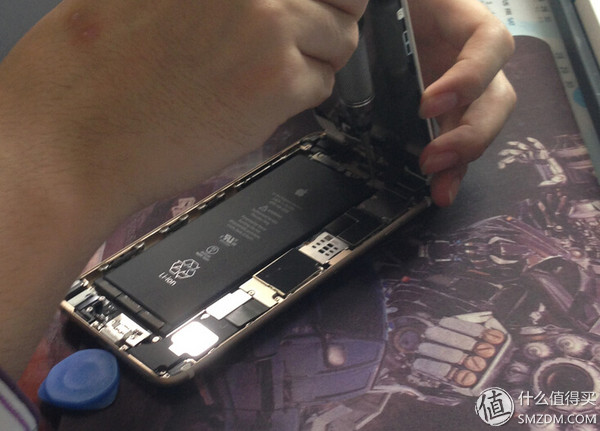

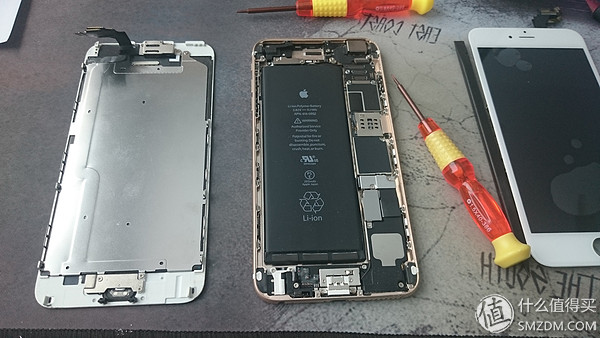

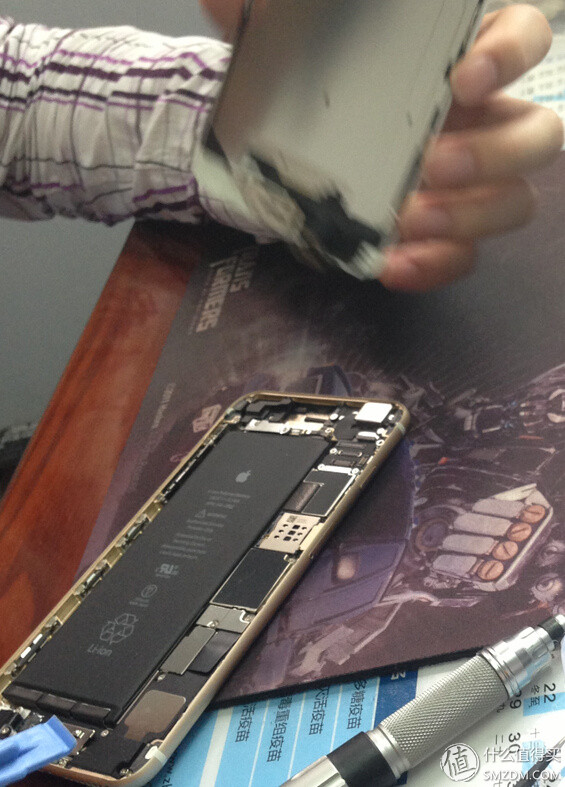

After opening, we see the internal structure.

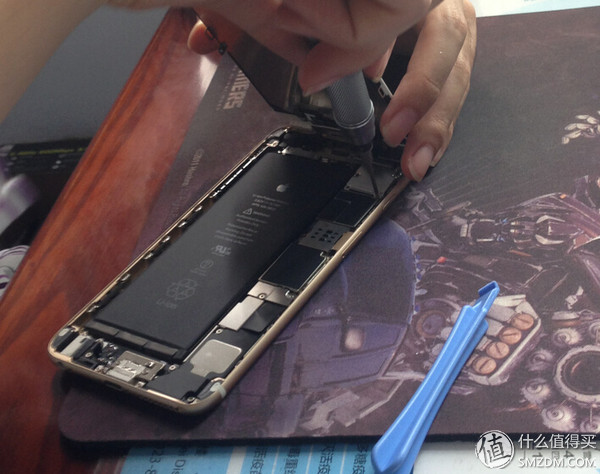

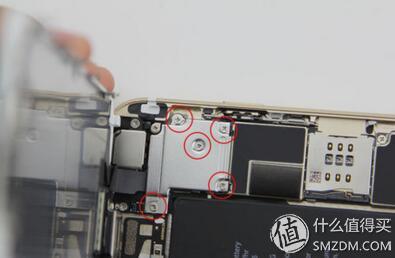

Removal line cover, a total of 5 screws

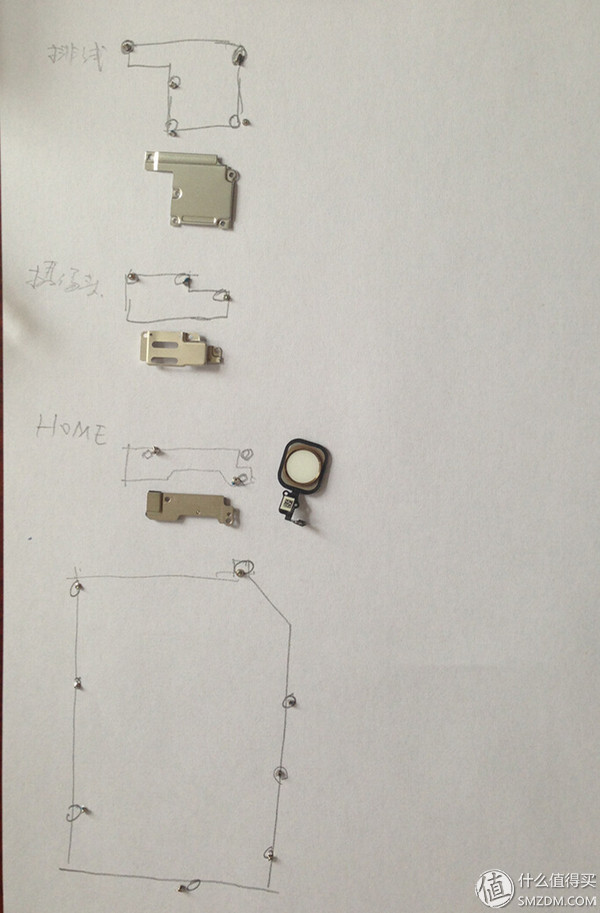

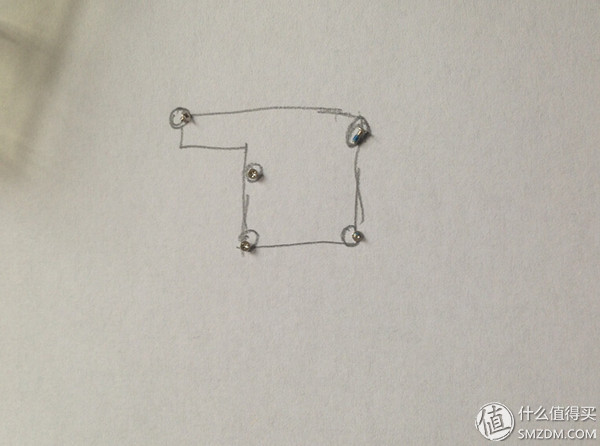

Draw a picture and put the screw in place to avoid confusion
Use a crowbar to open the cable, a total of 4 interfaces, to avoid the use of metal crowbar , anti-static ↑

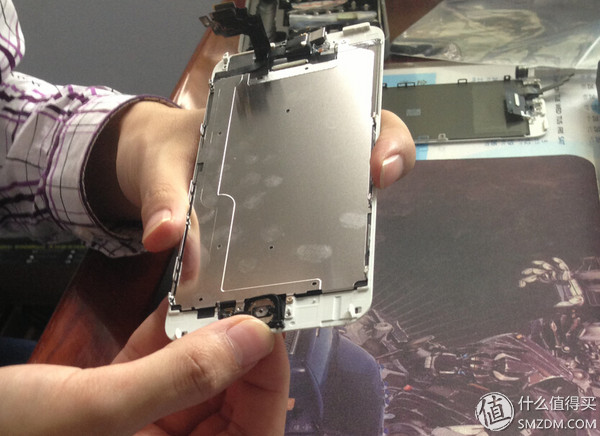

You can get the screen off when the cables are open.

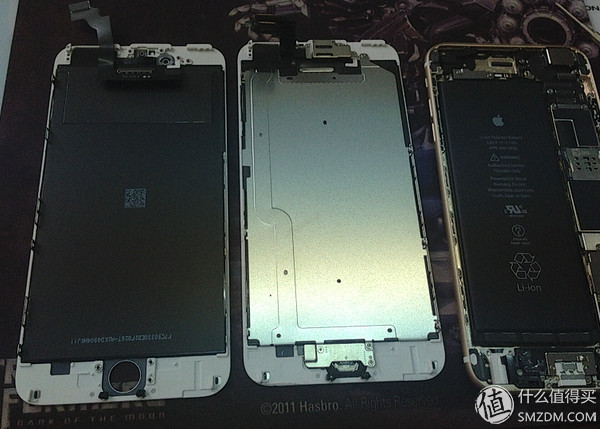

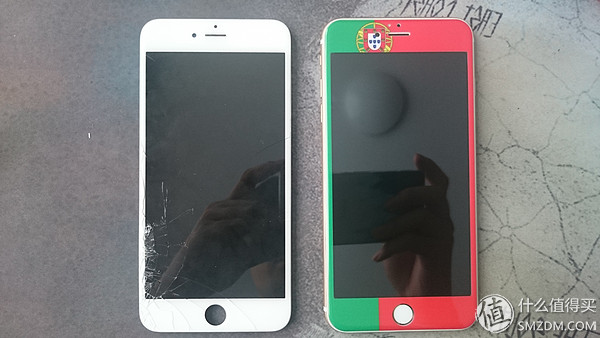

On the left is a new screen, and in the middle is a broken screen.

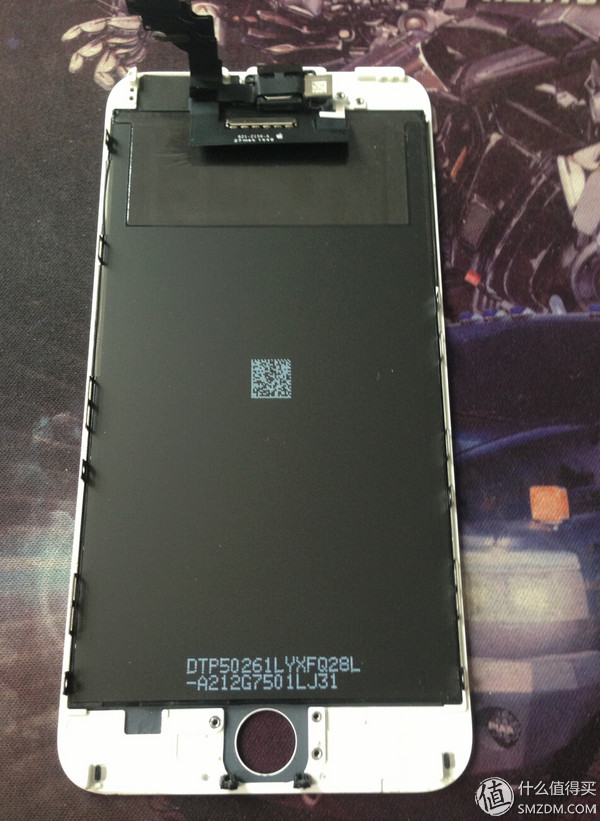

This screen assembly is without accessories, you need to remove the front screen camera, earpiece, and HOME button

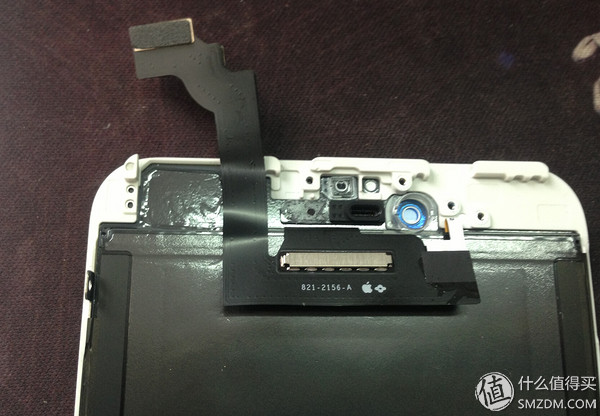

New screen handset

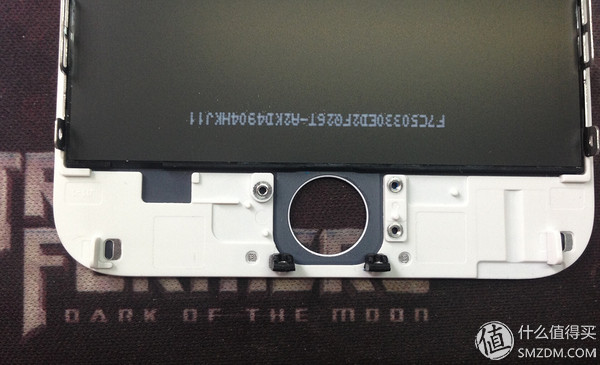

New screen HOME button

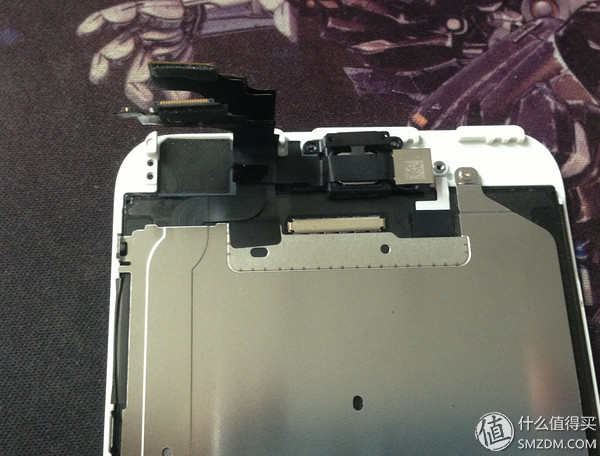

The original screen camera part of the handset

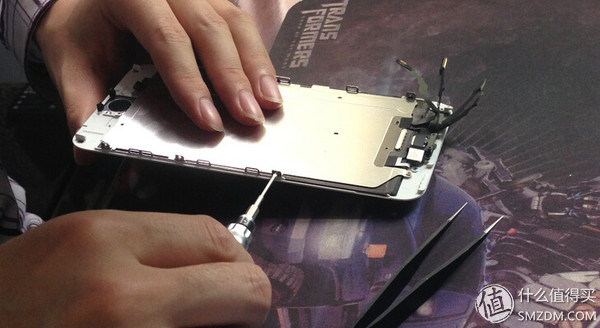

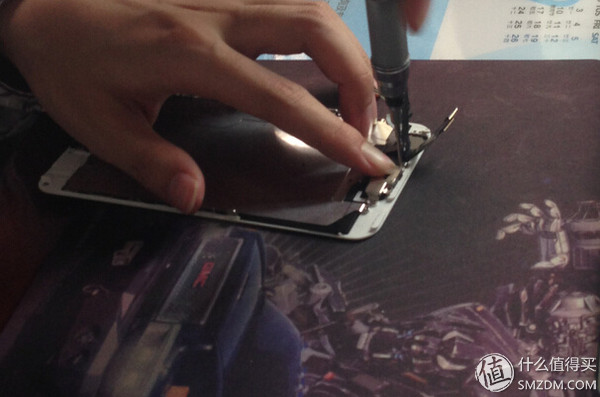

Started the split HOME button with two screws ↑

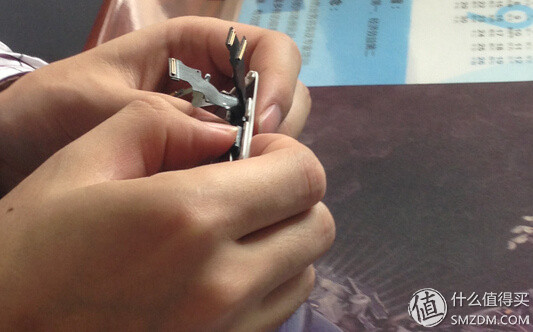

After removing the screws and covers, open a cable connector and press HOME to remove it.
The HOME button is glued. The action is lighter and the cable is finer. You can use a crowbar to smash the cable.

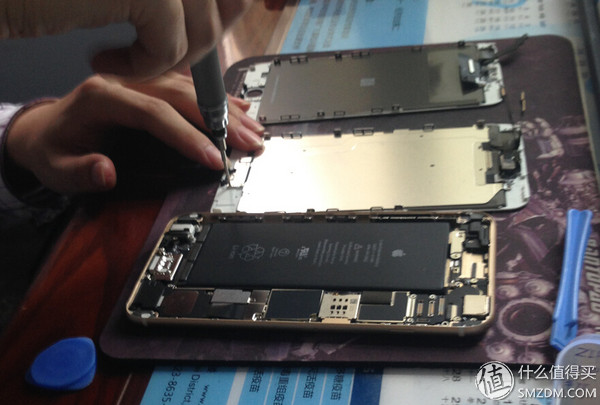

The photo of the camera cable was forgotten to be taken. It was not difficult. Just remove it and install it directly on the new screen. All screws are placed in this way to prevent mixing.

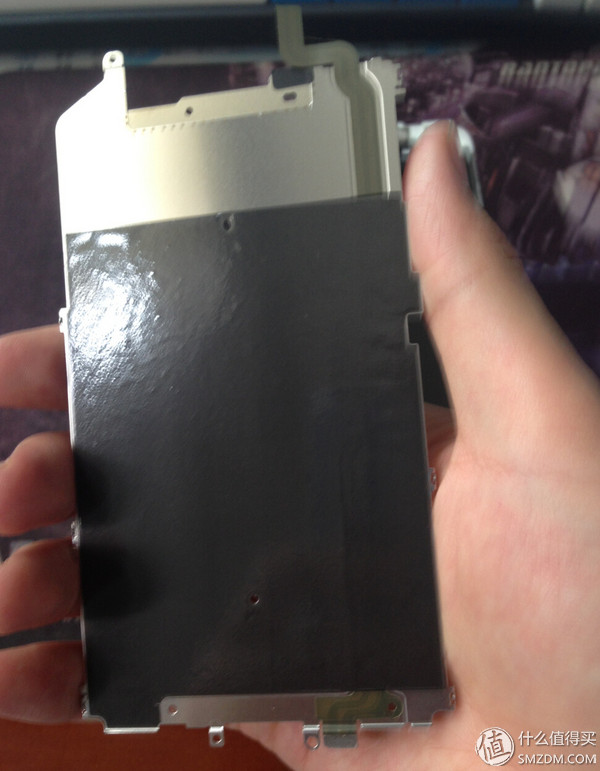

The screen protector is also removed for mounting on the new screen.

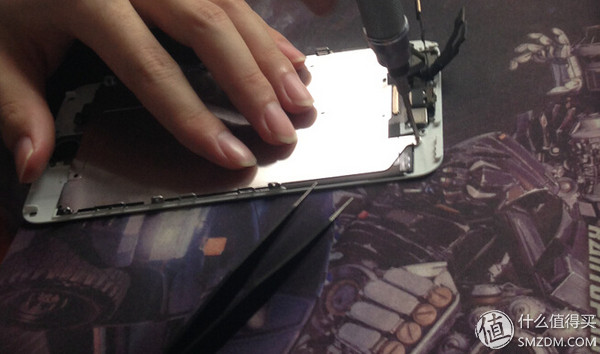

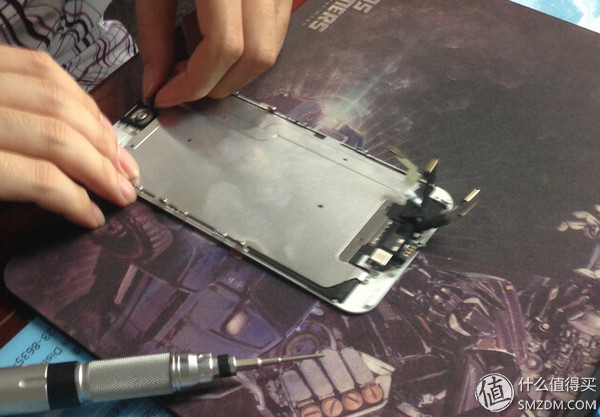

Screw on
Install HOME key ↑

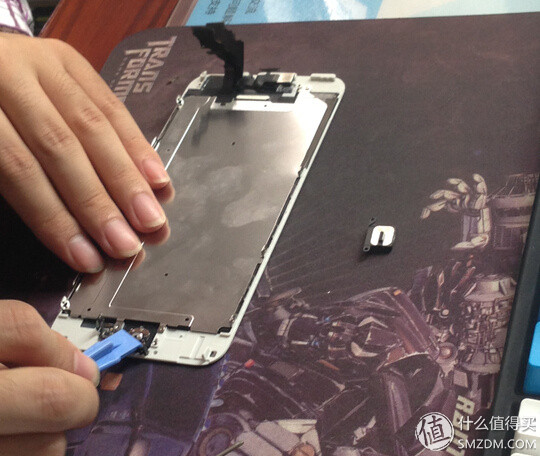

Organize cables
Mounted on the top of the camera
Connect the screen and the machine to restore the cable, start the screen to see if the screen is lit, no problem, install the iron ↑

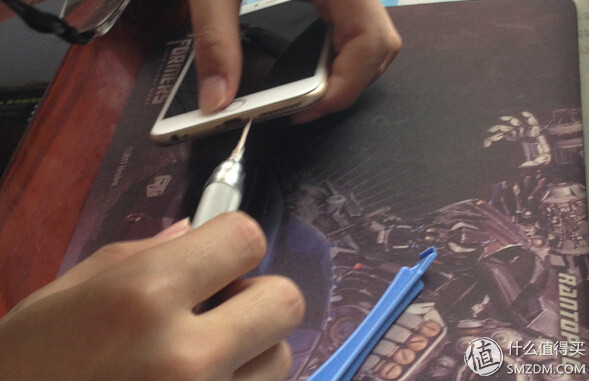

Screws on the bottom of the machine

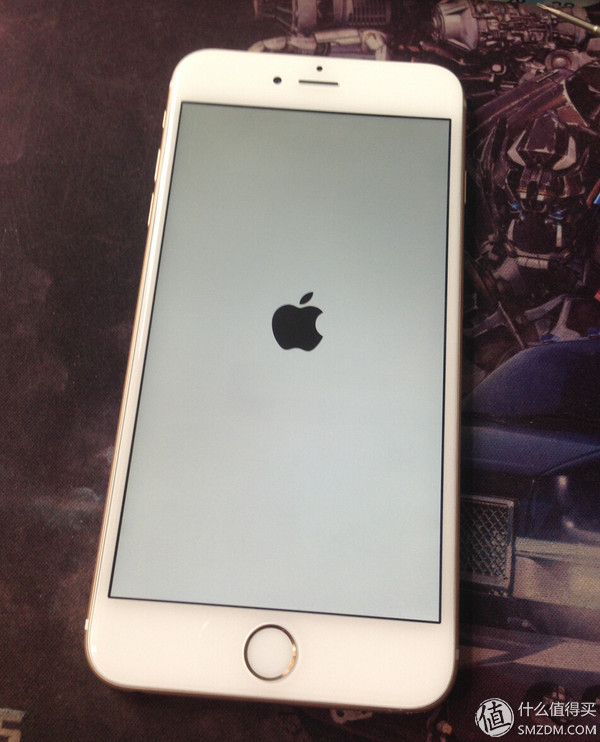

Boot, perfect recovery
Benks Covers Tempered Glass Films
2, bending repairColleagues call back: "The screen is broken again."
"Oh. I'll buy another one."
"There is still another thing... Also bent..."
".."

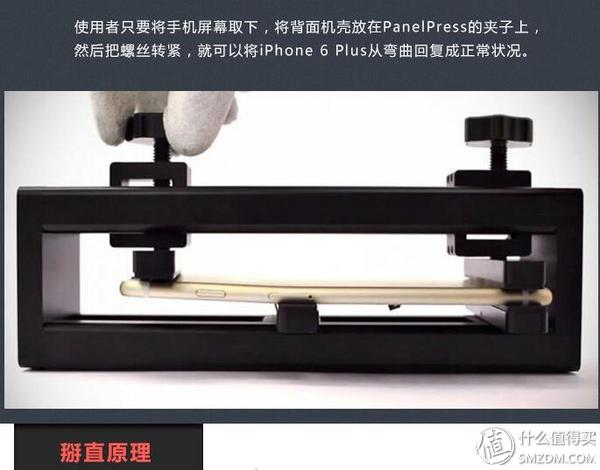

Although I have heard all kinds of bent doors, it is the first time I saw it. Fortunately, it is not very powerful. After receiving this call, he began to consider ways to make 6P "straight" back. 1. Hard clams. 2. Use wood clips. At the beginning, I thought of two ways. I would like to help Amanda. There are not many examples that I can refer to. I only found one artifact:
But the price of hundreds or thousands of Taobao still made me give up this idea.
Still first bought the screen assembly to say, X treasure search iphone6p screen assembly
Looking for a store that feels a bit more reliable, this time I chose the screen assembly with accessories (can I say that I have forgotten that the last change was without accessories?) A lot of money, friends, I'm sorry for you... The meaning of accessories means that all the accessories other than the HOME button are already on the new screen. Just remove the HOME button from the old screen. However, if you spend 60 yuan, you will need to remove a few screws. I feel unworthy.
Change the screen also have to be on the film, always with Benks, continue to search
Then found that Benks had a new film in the European Cup, just colleagues like Ronaldo, just buy a Portuguese, on the link
When the preparations are over, they wait for something to arrive.

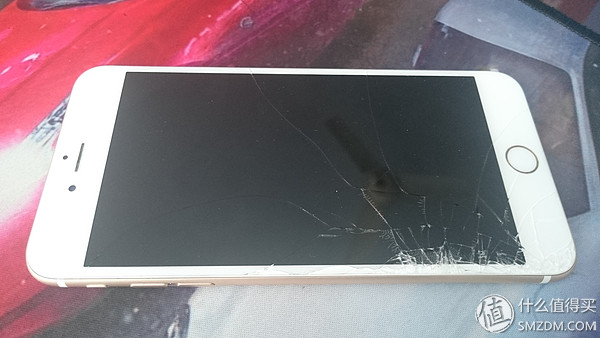

It is again, it is broken again.

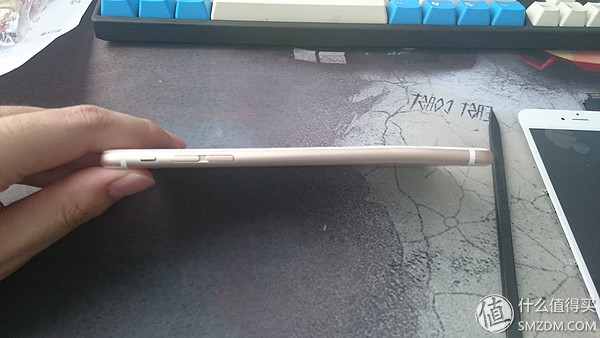

The bending is not obvious but it is enough to break the top of the screen.

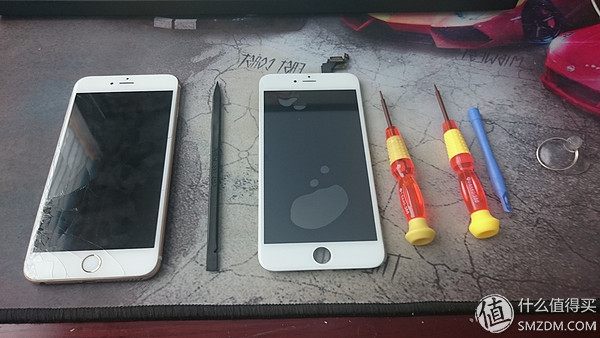

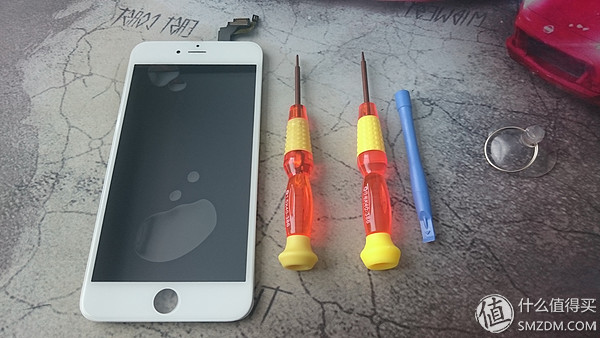

The new screen assembly received, and several disassemble tools, two screwdrivers, a cross, a five-star mouth, a crowbar, and a sucker.
Family welfare
Open the door

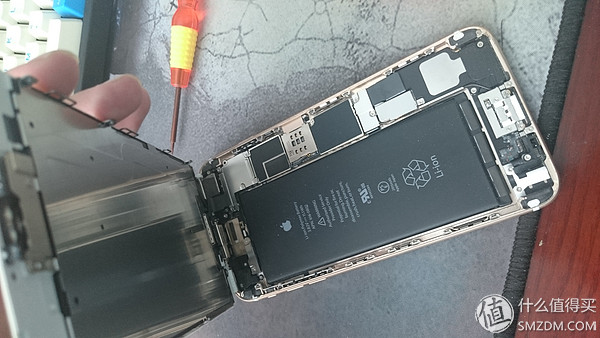

Remove the screen ↑

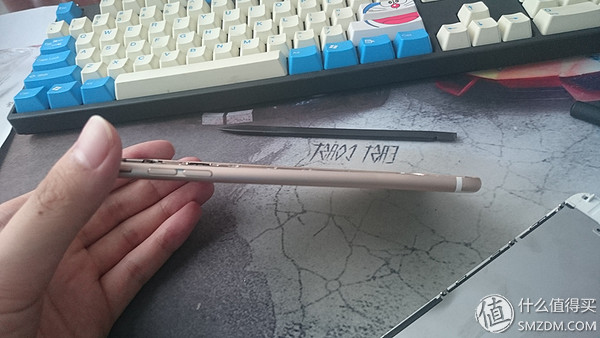

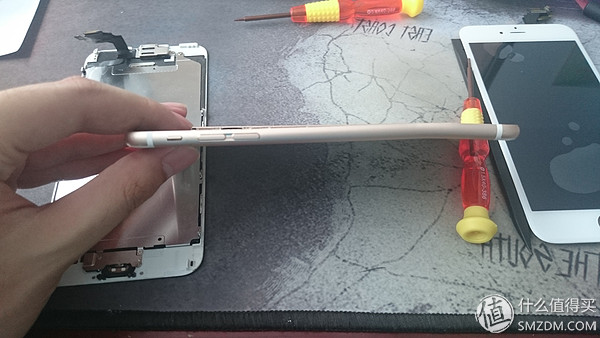

Looking at the bending situation, this is still quite obvious.
The biggest problem came when the previously planned handcuffs and wood clips all came back without success (because I had not even filmed and I had no brains), today's project is in trouble. It's so easy. It's so hard to get straight back. . . Later I tried the following method:
The corner of the bend was placed on the edge of the table and pressed against a wooden board to form a lever. The stencil was pressed downwards. The forgotten camera was forgotten. The brain should be no problem. This method is slightly effective, but it is not very obvious. It is considered to be a good effect. To do this, the screen can be normally mounted on the back shell, but the lower left corner is still a bit alice. One is not beautiful, and the other is what the water into the ash, have to continue to engage. In the end I decided to let go and go for an artifact!
Hammer towel combination ↑
Or the corner that is tilted above is on the table.

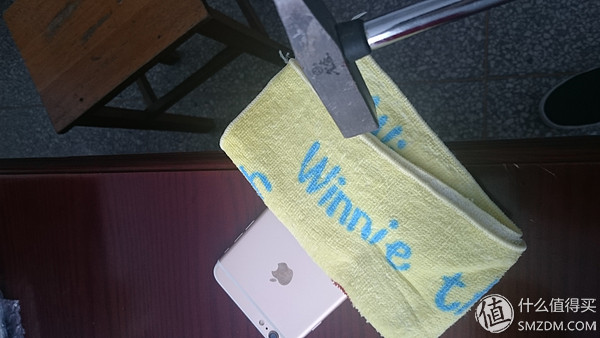

Pad a towel is afraid of a hammer hit the back shell ↑
☆ There is a need to pay attention to the strength, and do not use too much force. . . Injury to the motherboard will not be worth the loss. After a few knocks, it was found to be basically flat. Then place the phone on the table top and put it on the back. Put a towel on it and use a hammer to knock the edge of the phone. ☆ Note two issues here: One is to knock at the edge, the edge is thicker, and the anti-strike ability is stronger. Knocking to the middle part may cause the back shell to be recessed; the second problem is that the back is also down. , but pay attention to the camera is protruding, pay attention to protection.

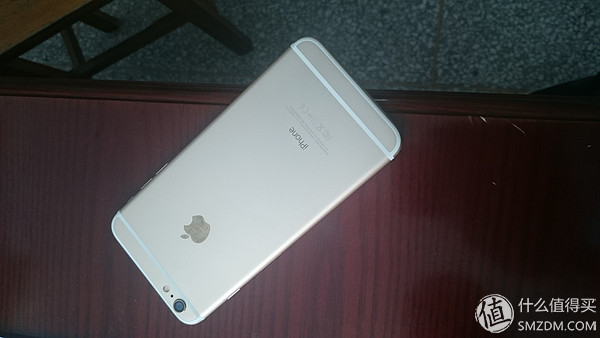

Knocked a few times to see, basically can't see it.
We can start to recover right away. There is a problem here. The two black pads below the HOME key of the buy assembly are not available, and can be moved from the removed screen. The process did not shoot, detailed or see the above first screen change process. Do not rush to install the cable, first try to turn on the power can not light.
but. . . Again, there is a problem. . . So I asked the seller
What?! Motherboard. . . How many hammers have you scrapped the motherboard? I can not be reconciled, but also to find Du Niang, Du Niang do not know what the situation, I go, this whole. . . For the old screen is not bright, is it really a motherboard problem? This is going to the repair shop. I don't know how to do it. . . Please forgive me for always thinking about the bad guys. It was actually being pitted too many times. . . Consider a long time, will it be a battery problem?

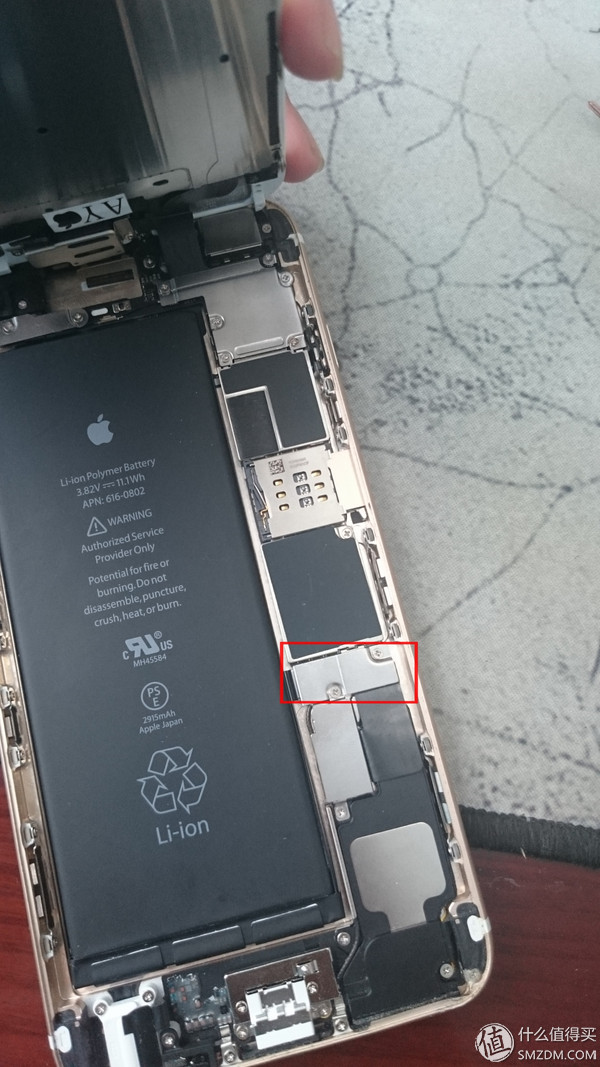

Remove the 2 screws from the cover of the red box. After opening, you can see the battery cable.
Remove the cable and then plug it in. The following is the moment of witnessing the miracle. The screen is bright, everything is normal, restore, and screw.

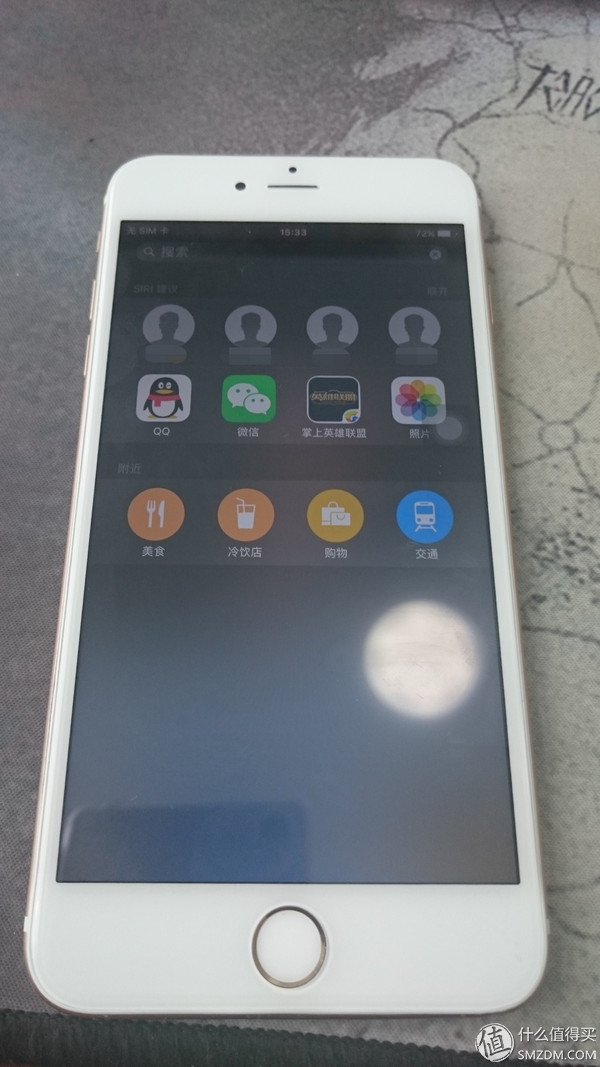

Test camera, earpiece, HOME, fingerprint identification, everything is OK
The last procedure, film.
This is not much to say, click on the line on the line, this film is a resin material, soft, borrow an official map we can intuitively feel

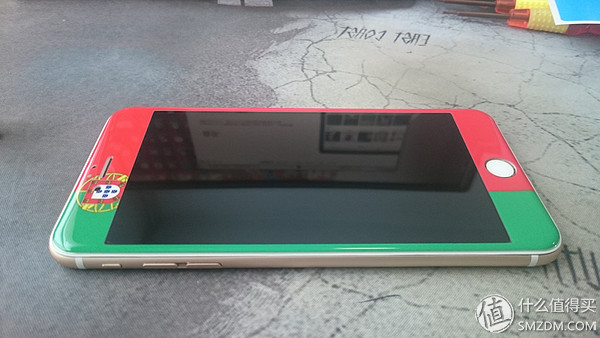

The film is still quite affixed, there are arcs on the edge, it fits the screen, just do not know how to protect, there is no big God to a crash test
3, summaryThere is also a cure for the bending of the screen, and it is not difficult to say. It may be mainly fear of breaking. I was very cautious when I exchanged for him for the first time a year ago. I followed the video step by step. Look, in fact, changed once is just the case, is nothing more than a screw to install screws, it is four words, bold and careful.
  This is the choice of accessories and no accessories, we still according to their own circumstances, it is worth a few dozen dollars, of course, no hands-on ability is good enough accessories, the first time more worried about the use of accessories, but also You can save a lot of things.
This original to this point, value friends can leave a message, we must know everything.
