Many users already know that the Zhipai system produced by Kexin Optoelectronics has four models, namely the experience version S1, the standard version S2, the enhanced version S3, and the flagship version S4; in fact, there are other customized versions of the model products. I won’t introduce too much here.

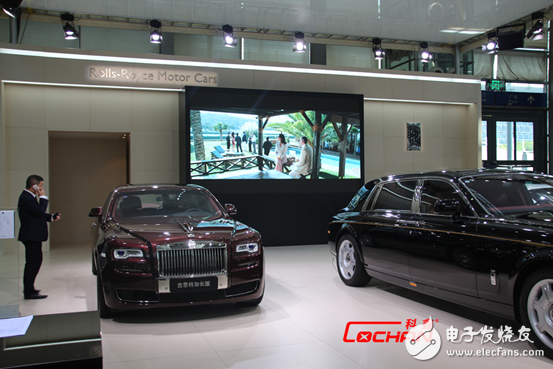

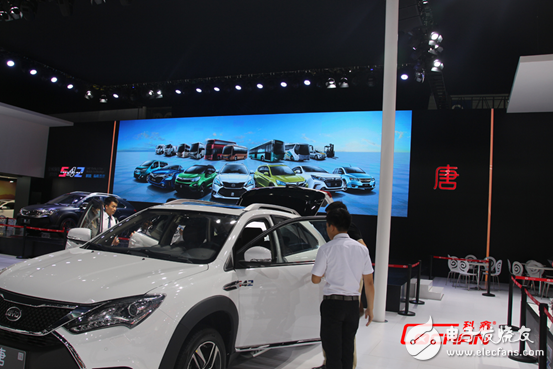

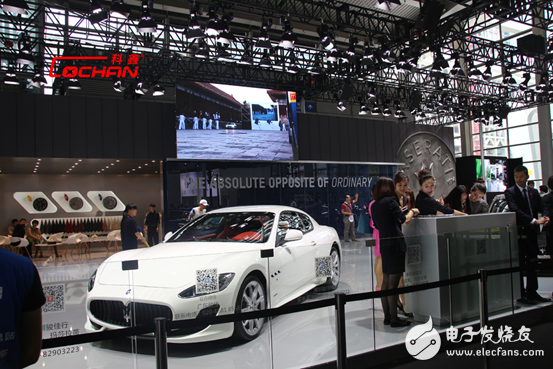

For the first time, users of the Zhipai system, in addition to the product features, most of them pay more attention to how large the area of ​​the display can be controlled by IPAD? Here we still use the most widely used large-screen products on the market: LED display as an object, give you a brief introduction.

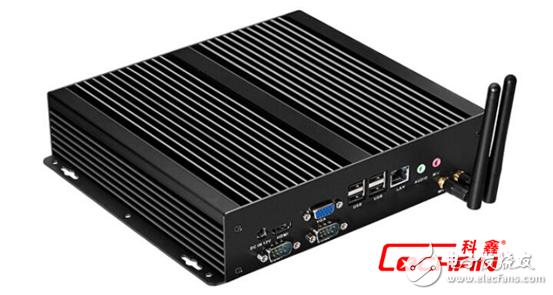

From the product parameters of the S1 model, we can see that the maximum resolution of the motherboard VGA/HDMI video signal output is: 1920 points X1080 points. Then let's calculate the P2.5\P3\P4 model commonly used in LED display, and use ipad wireless control to control the screen area of ​​each area.
PH2.5 model products
(1920 points X2.5mm) X (1080 points X2.5mm) = 12.960m2
PH3 model products
(1920 points X3mm) X (1080 points X3mm) = 18.62m2
PH4 model product
(1920 points X4mm) X (1080 points X4mm) = 33.178m2
The above is the size of the screen area that can be controlled by these three models of LED display with the ipadled.com product. The calculation method is actually very simple, as long as it is within the corresponding model and corresponding size. Use the smart S1 wireless control. Other types of LED display products and so on, the above formula can be used.
