For a variety of reasons, it is necessary to install a desktop machine.
small
Can alone
The first defines the itx motherboard first. Then start picking the chassis. If you don't think about independence, the popular Yingbaek/Chobon in the original area is a good choice. It is compact and comes with its own power supply. However, considering the demand for certain games (ass), there is still room for independence.

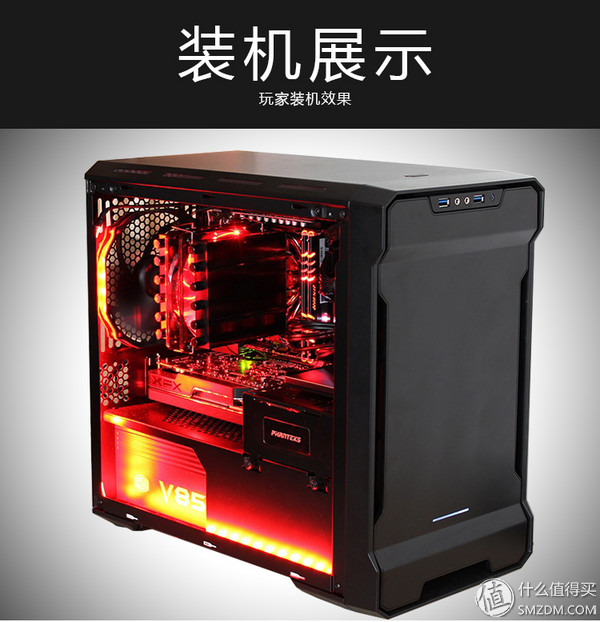

There are usually two kinds of itx chassis that can be displayed alone, one kind of fat: retain the tower chassis structure, power front or bottom
Hercules 215p Picture from Jingdong
Another kind of fatter: motherboard tapping

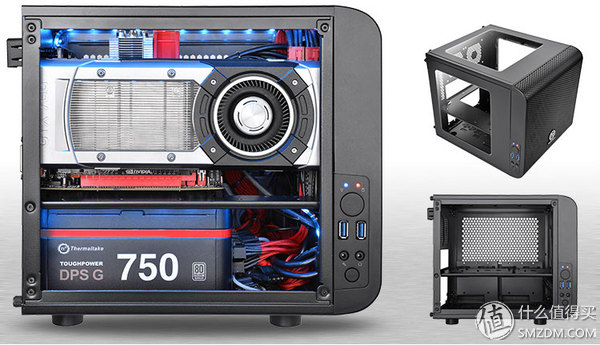

Tt core V1 picture from Jingdong
I bought a small chassis to put a table on it and I didn't take up too much space. There is a difference between a wide chassis and a wide chassis.
Fortunately not all itx chassis are so fat

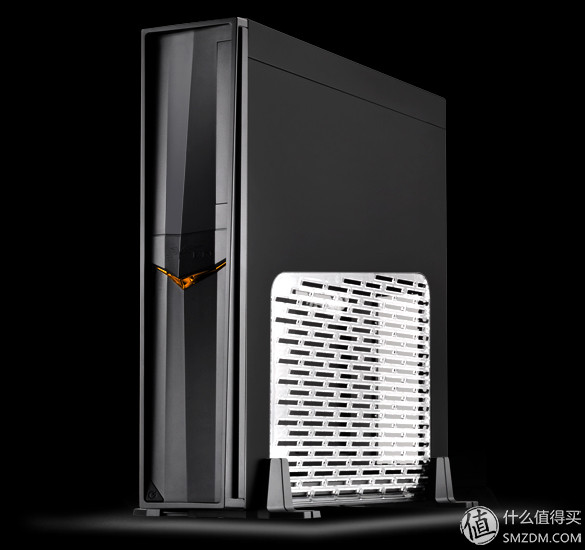

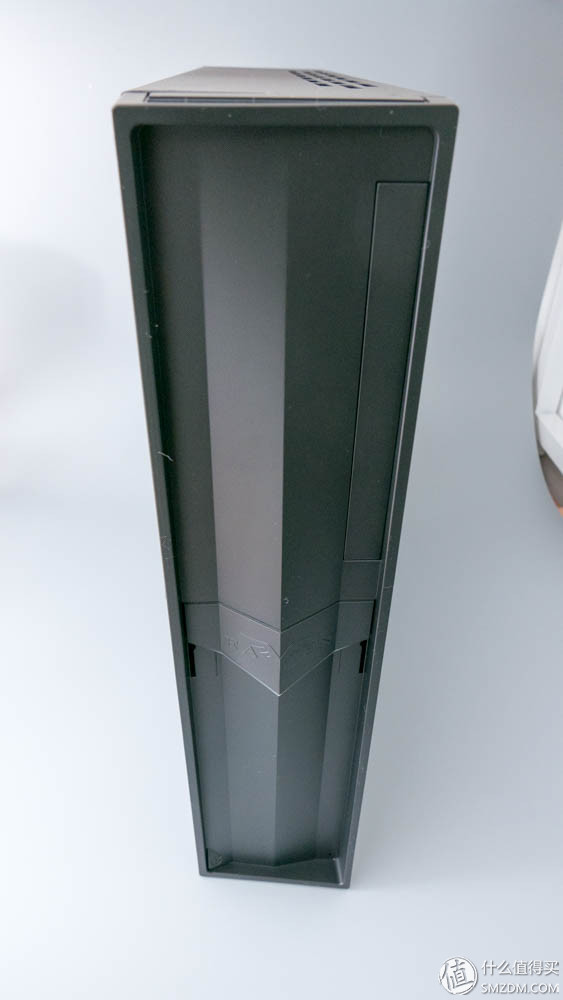

Yinxin rvz02, ultra-thin design, only one circle bigger than the alien x51
Then there is this ultra low cost computer

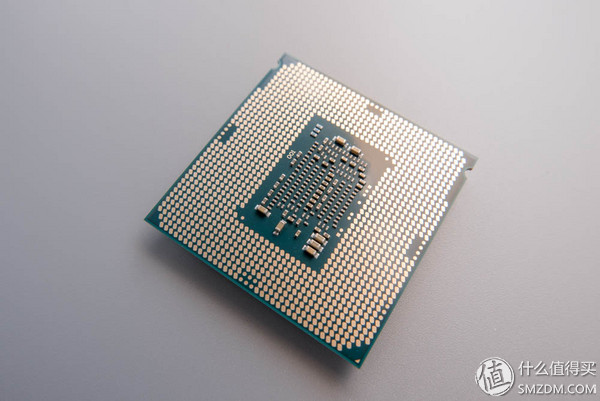

Cpu:i5 6500 bulk

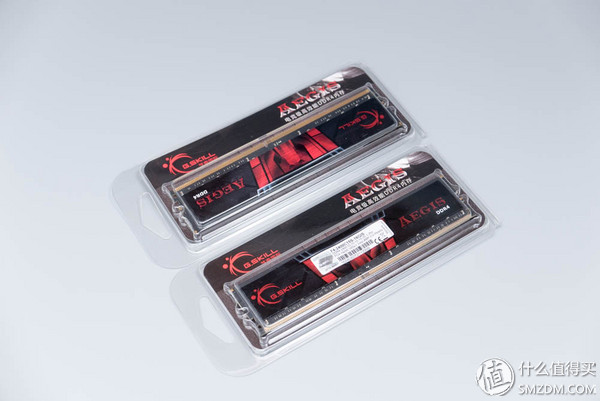

Memory: Zhiqi 16g 2400 2
Motherboard: Gigabyte B150N Phoenix WIFI
Hard Disk: Samsung sm951 256g; Samsung 840evo 500g msata
Chassis: Yinxin rvz02
Power supply: Yinxin SX500-LG
Radiator: Limin axp100 muscle

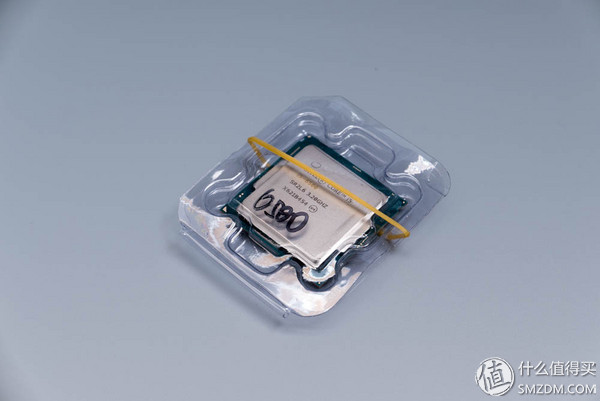

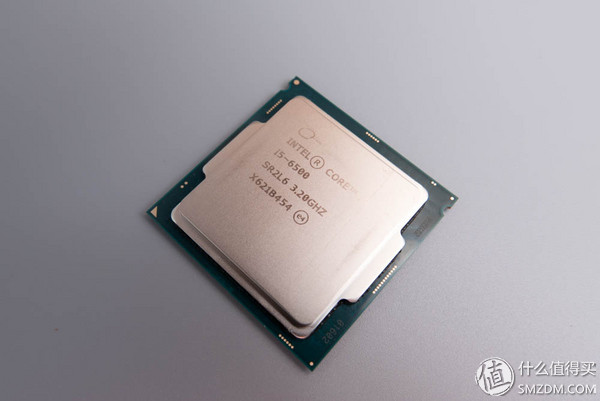

Cpu nothing to say, tb piece less than 1200
One of the biggest improvements to the skylake platform, memory support for ddr4, progress from 1333 to 2133

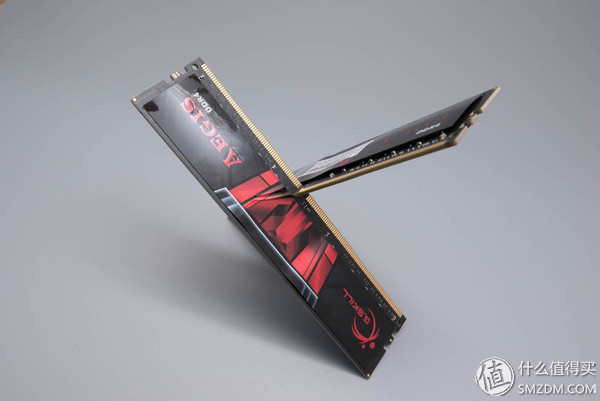

B150 motherboard can not be ultra memory, like to buy cheap

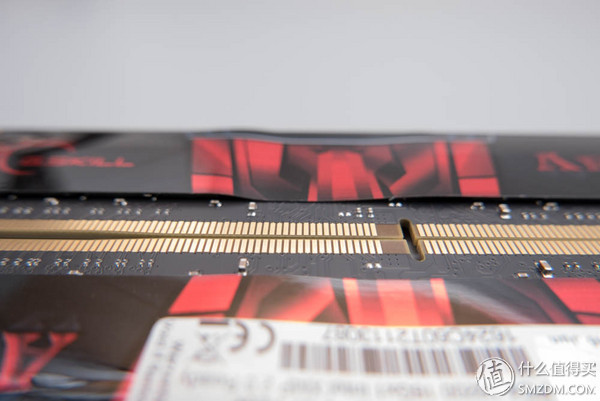

See no, the above two are stickers are stickers are stickers! ! ! ! ! Bargains can not be so provincial ah, but also affect the heat.
Gigabyte Phoenix Edition, b85 accumulated a good reputation. It's more appropriate to choose to go.

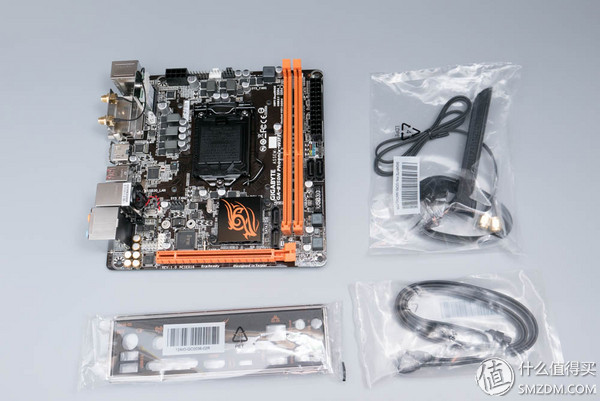

After all, it is not a high-end product. In addition to the bezel and the sata line, the motherboard only has a wifi antenna.
Cpu slot. Don't take the cover yourself now.

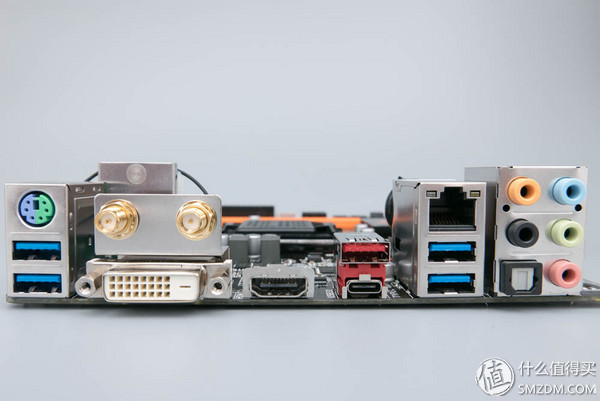

Io mouth

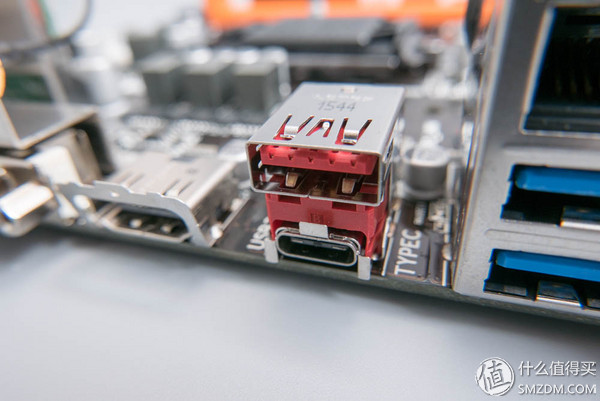

Usb3.1 and type-c are not used for the time being

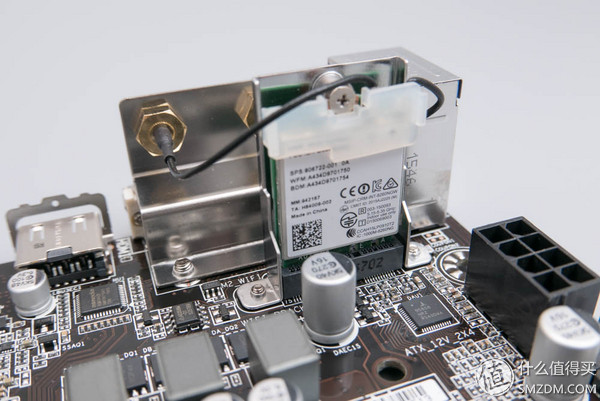

Wireless network card, this location will not conflict with the radiator.

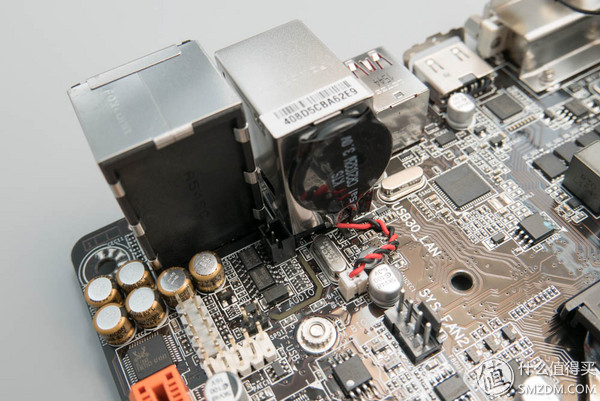

Bios battery, directly stained with double-sided adhesive. This did not consider the need for battery replacement.

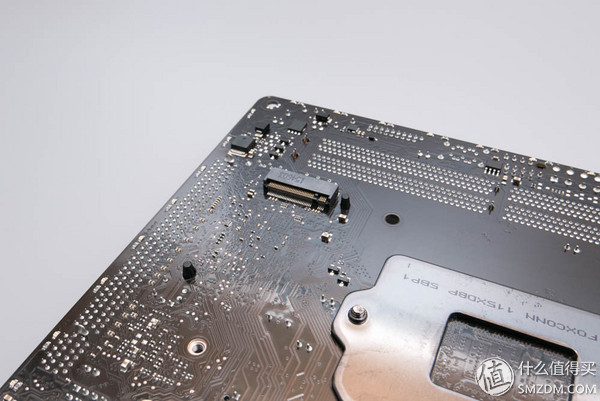

The back of the m2 hard drive.
The skylake platform's biggest increase in the second, better m2 pcie-X4 support, ssd do not grab bandwidth and graphics card friends

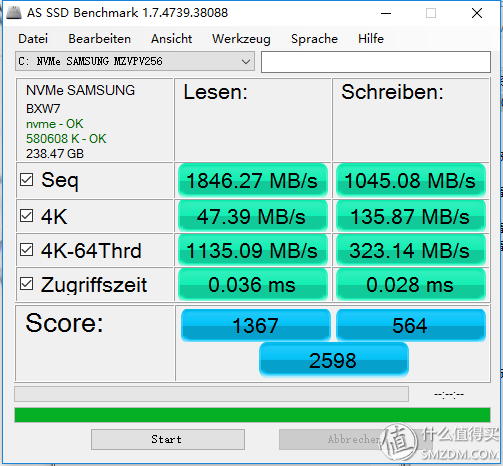

Sm951 nvme, run easily break 2000

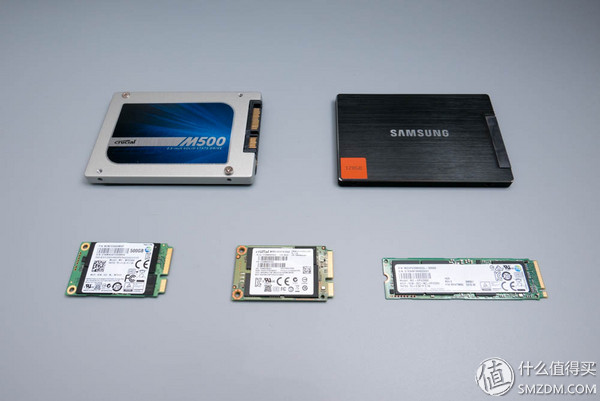

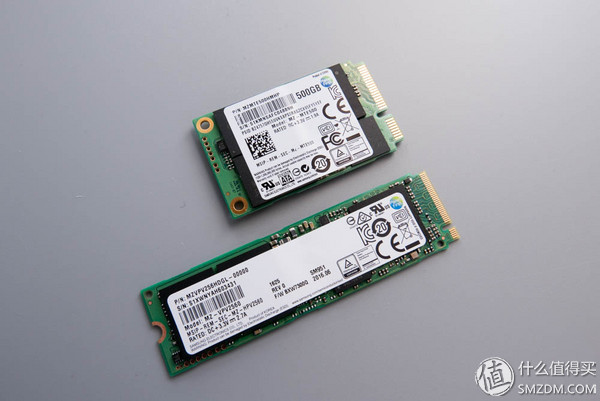

Comparison of the volume of m2 and msata
With emotion, ssd really can't go back.

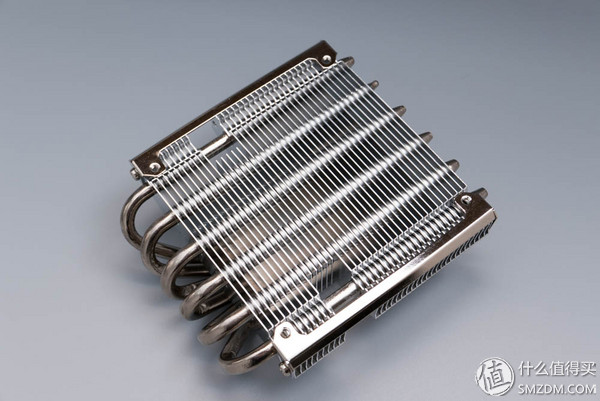

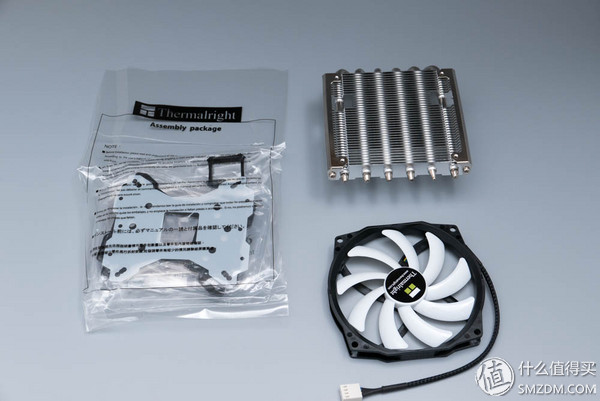

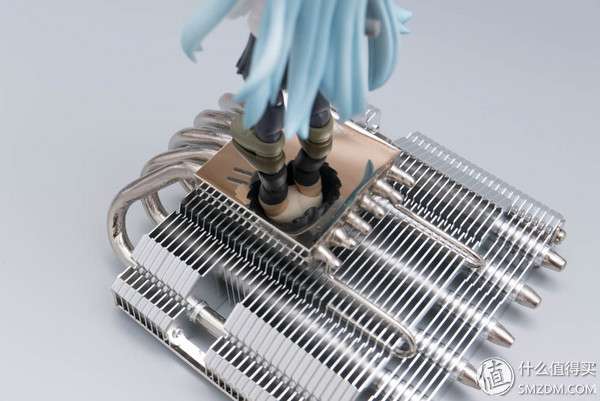

The rvz02 radiator has a height limit of 58mm and the axp100 is just 58mm.

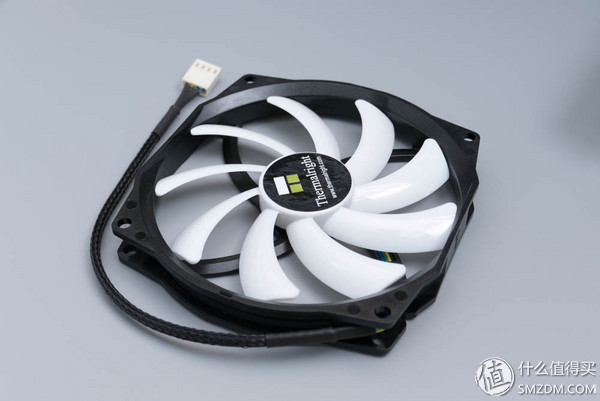

Original 9cm hole, 10cm diameter thin fan.
Mirror base

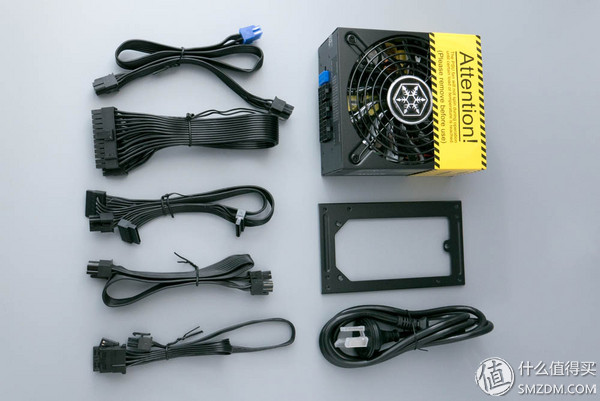

There was no choice of space for the power supply. After all, it was on the Yinxin ship.
Gold medal, full model, big fan, expensive.

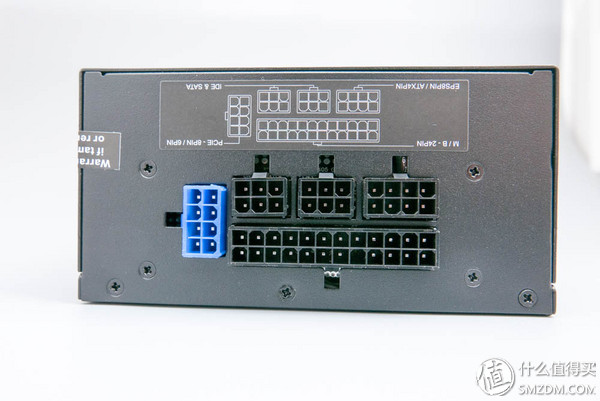

Standard interface, it is easy to change custom lines.
Not so soft original silicone line

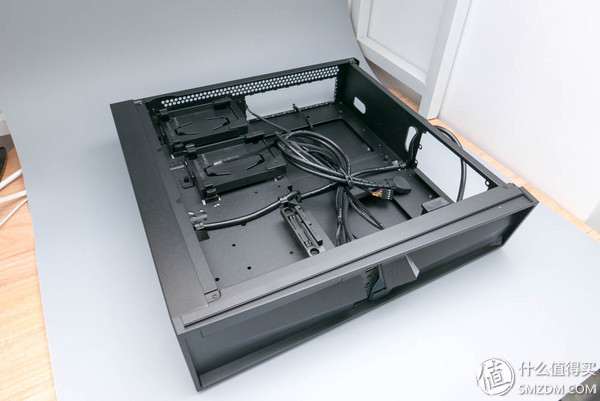

The protagonist debuts

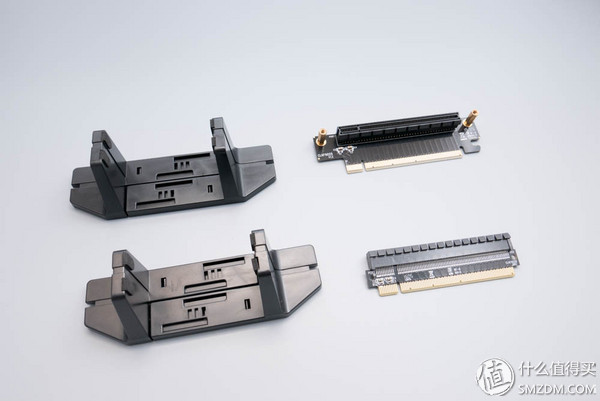

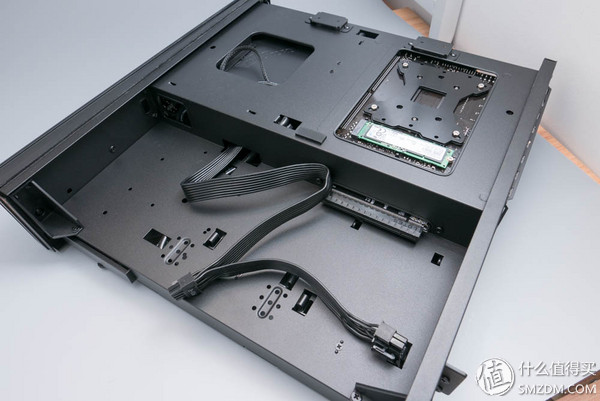

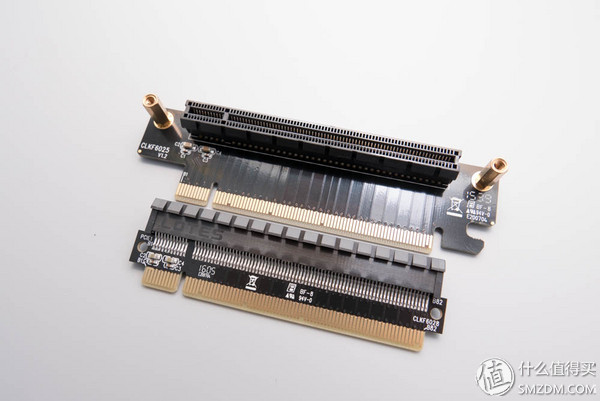

Brackets and graphics adapters
But when I wrote about it, I discovered that I had forgotten the process when I was installed.
Originally wanted 480, but also poor heat dissipation is burning the motherboard, or so 1060 Well

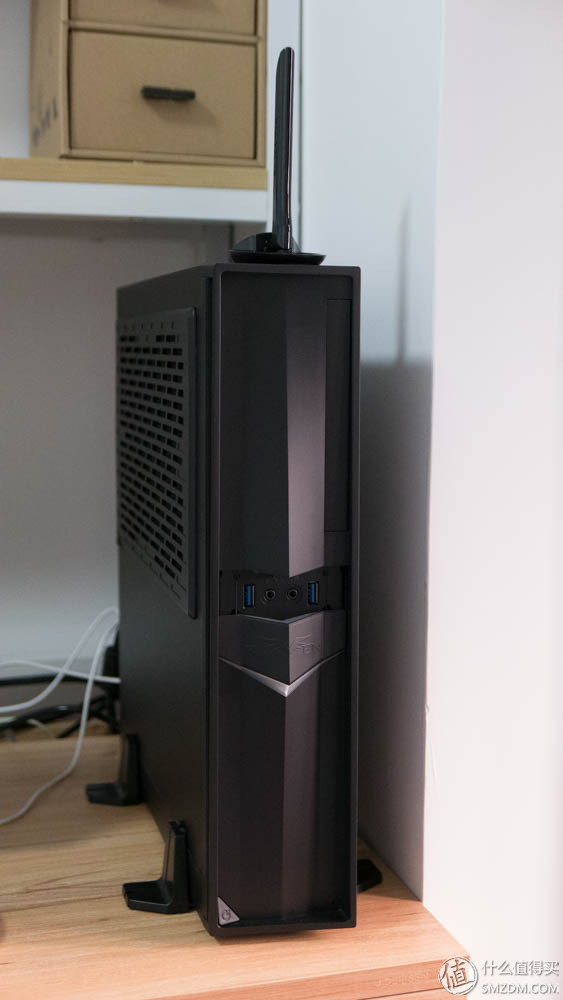

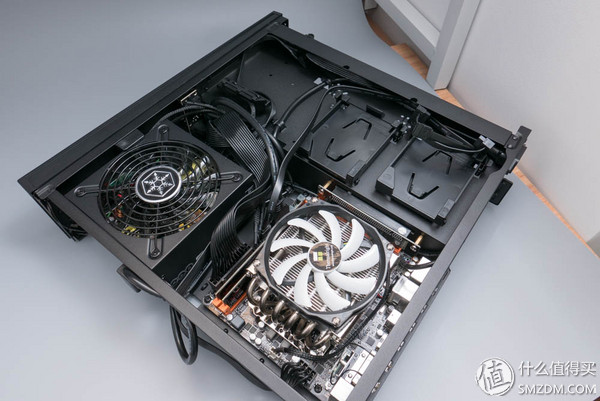

Installed look

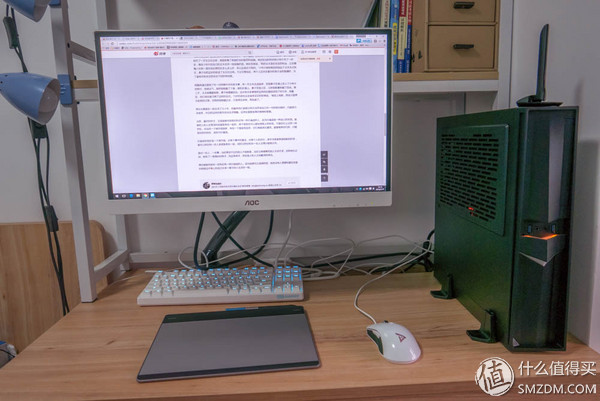

Orange power light

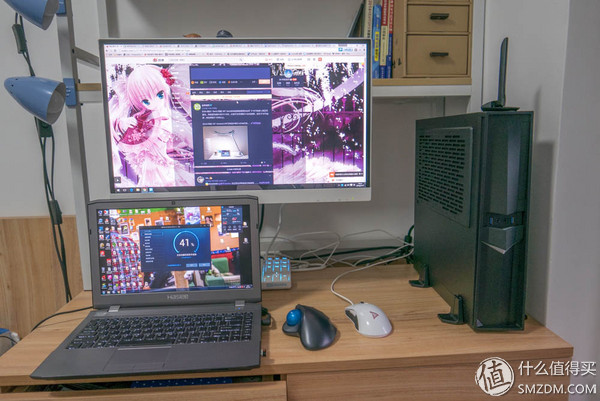

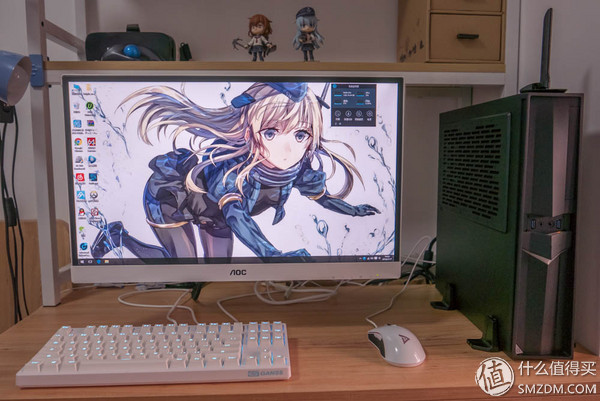

Make the best use of desktop space
Can take the board to retouch the art
Or two forced double open
experience feelings
The notebook is a ShenZhou k350, i7 4710mq + gtx765m performance and heat are very prominent (standby 60 heavy load 96), the phenomenon of occasional Huaping after a year and a half later, so it was installed this desktop. However, compared to laptops, there is currently no advantage in the performance of this computer. Cpu running points at the same level, the game because it is not worthy of being alone is a second street, play watch pioneer pioneer 720p low, the average number of frames is less than 30
The benefits are greater desktop space, more hard disk space, quieter environment and no longer hot keyboard

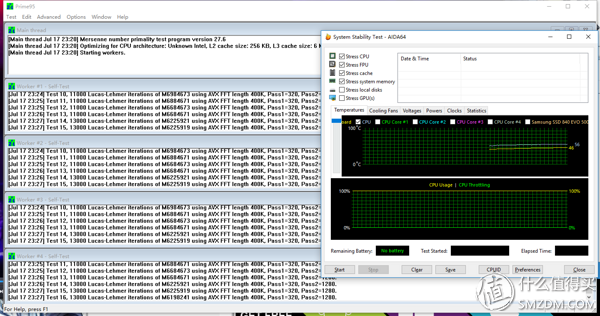

Baking machine test, indoor 26 ° air conditioning, cpu basically stable 55 °. Vaguely can hear the fan sound.

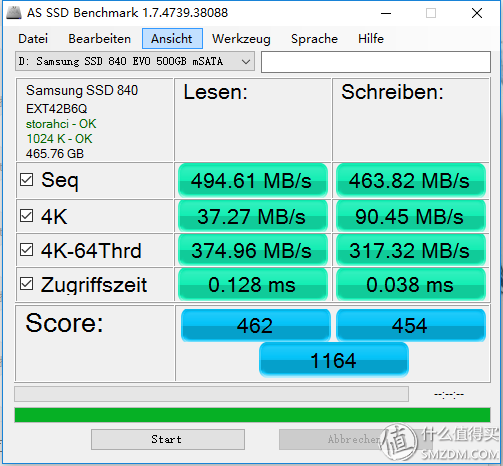

Running two hard drives
to sum up
1. The current cpu performance is serious and the old platform is more cost-effective.
2.nvme hard drive has improved? Have. Is it big? There is no hdd to ssd. If you want to eat fresh, you can worry about what the warranty is.
3. It will also be used for office work and play alone.
4. Yin Xin used materials to work in general, the front of the plastic panel does not say, behind the steel plate feels less than the level of 200 pieces of the chassis, installed after the machine has found trace of paint. Please consider carefully
Ps: It is estimated that some people will say that memory is so big, it is better to reduce memory i7.
My answer is:
Tmd I just discovered! ! ! ! ! ! ! ! I knew I had been on it! ! ! ! ! ! !
