[IT168 evaluation] When it comes to Lenovo's new series of notebooks, perhaps many consumers are not unfamiliar, can be said that Lenovo's new series with its good performance and high cost performance has been recognized by many users. Perhaps precisely because of this, Lenovo's new series of product updates are also very fast. Recently Lenovo Xiaoxin will launch new products - Lenovo's new outstanding version of 510S, November 22 November - November 24 opening appointments, November 25 - November 28 officially opened panic buying. Before we had the honor to receive the latest evaluation of Lenovo's outstanding version of the 510S, let us look forward to it!
In terms of configuration, Lenovo's excellent new version of the 510S, which was accepted for evaluation, was equipped with the latest seventh-generation Intel Core i7-7500U, and the Intel i5-7200U version, suitable for users with different needs, with Intel HD Graphics 620 core graphics card. 14-inch IPS high-definition display, and FHD high-definition display options, resolution of 1920x1080, providing speed 512G SSD large-capacity SSD, pre-installed Windows 10 Home Edition, and Office 2016 Home and Student Edition. Let's take a look at the specific performance of the new Lenovo Shinchan outstanding version of the 510S.
The advantages are summarized:
1. Light metal body appearance light fashion
2. Excellent heat dissipation
3. Balanced performance
Lenovo's new outstanding version of the 510S appearance: light and stylish
As a member of Lenovo’s Shinsegae, Lenovo’s Shinsei’s excellent version of the 510S has extended its style of simplicity and style before it is incorporated into the light and thin concept, which also gives it a good first impression.
Thin body
l The product adopts metal body design. Through anodizing treatment process, the body is more sturdy and wear-resistant. Although it is a metal body, it is only 19.3mm thick and weighs only 1.7kg.
l Here we have got a silver version of the Lenovo Shinchan excellent version of 510S, in addition to nebula powder and Haoyue white color options, full of fashion sense, a variety of color combinations can provide users with more choices for the fashion Daren brings a colorful look to the selection.

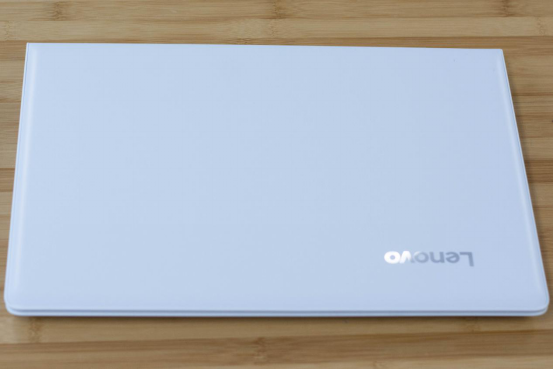

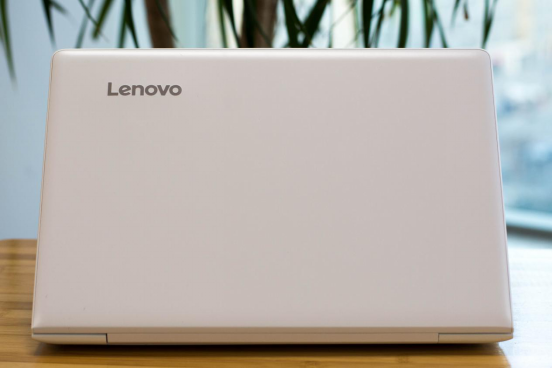

In addition, Lenovo's A-side design of the outstanding version of the 510S is very simple and clean, with nothing but the Lenovo logo in the upper left corner.

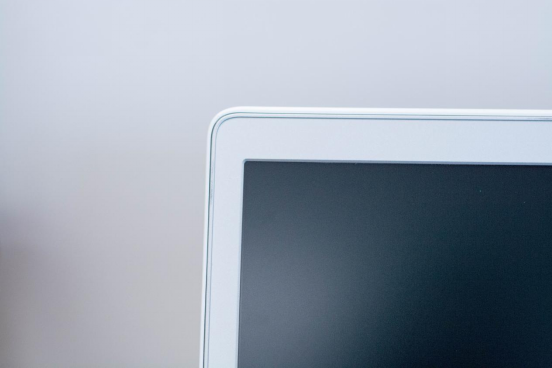

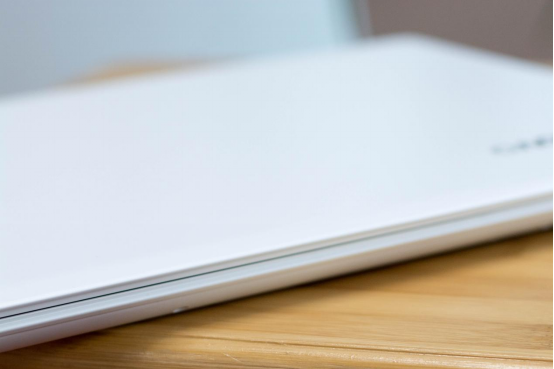

There is a groove design on the top edge of Lenovo's excellent new version of the 510S, which increases the overall aesthetics and strength and opening and closing.

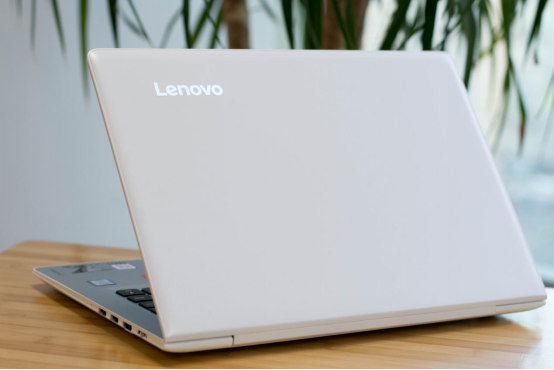

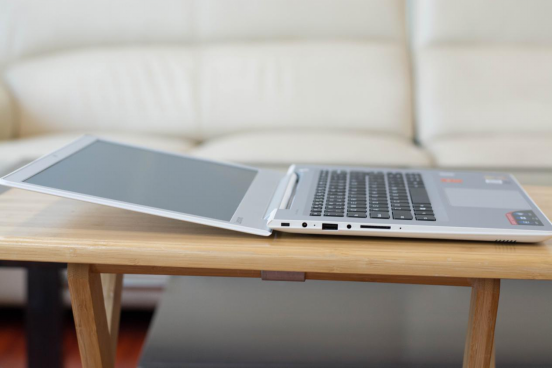

Here Lenovo's excellent version of the 510S can do a large angle opening and closing.
Narrow border design

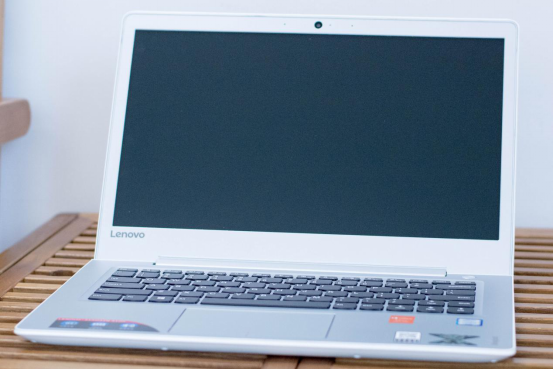

Open the top cover we look at Lenovo's new outstanding version of 510S B-side design, small new outstanding version of 510S has a full HD IPS wide-angle screen, FHD high-definition display, can give users a more clear and moving picture. It can be seen that the aircraft B-side frame is relatively narrow, the overall proportion is good, which also won a smaller size for it.

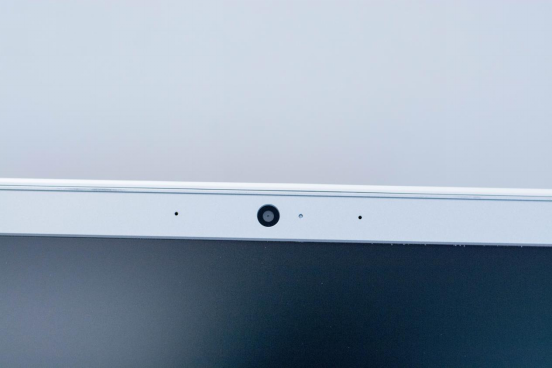

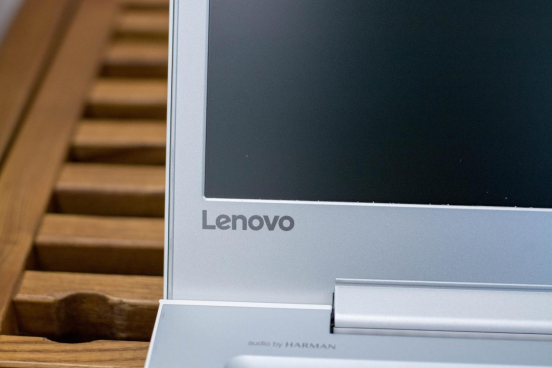

At the top of the screen there is a camera. In the bottom left corner of B, we can also see a Lenovo logo. This is also our more common design.

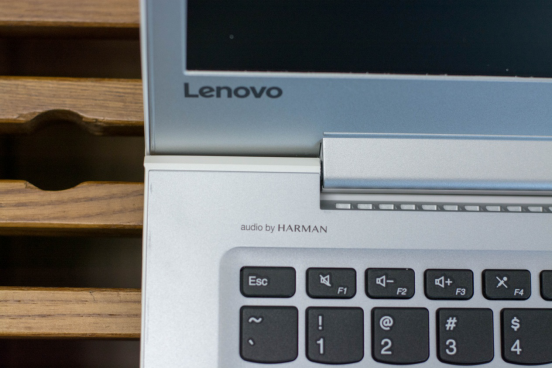

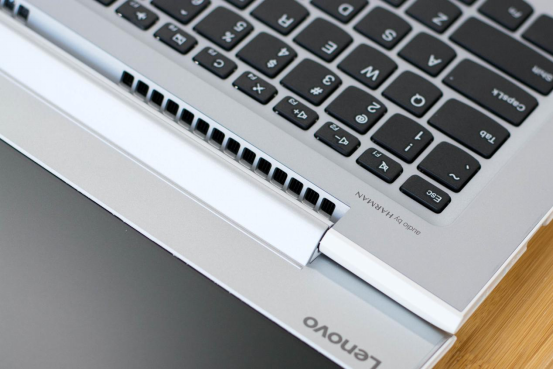

For C-side design, we can see a Harman logo in the upper left corner. Harman International is the world’s leading manufacturer of audio products. This means that Lenovo’s excellent new version of the 510S has Harman’s sound effects, which can bring users the ultimate Sound experience.

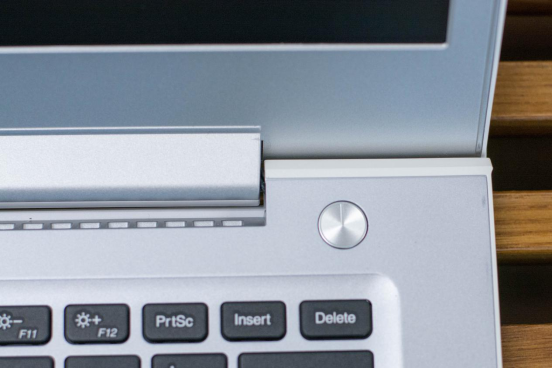

The key is on the top right corner of the C surface.

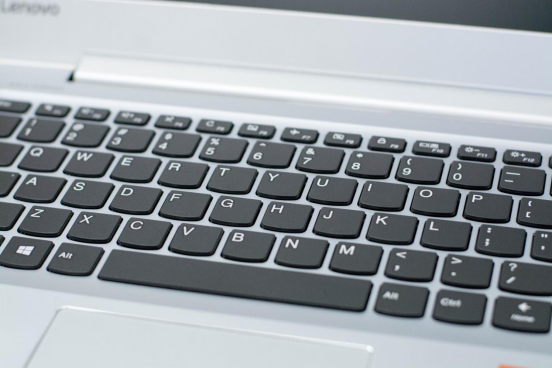

The keyboard, Lenovo's new version of the excellent version of the 510S keyboard key process is deeper to reach 1.5m, keyboard feedback force is moderate, feel comfortable, more comfortable to use.

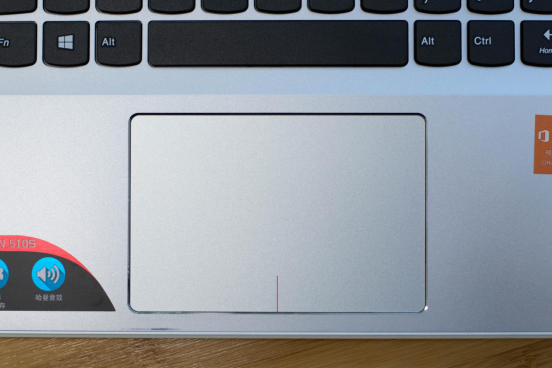

In addition, on the C surface Lenovo's new small version of the 510S has a one-piece touchpad, touchpad area is larger, support multiple gestures operation, the actual use is very comfortable.

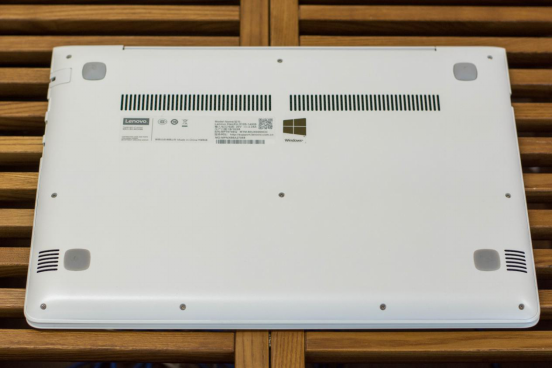

On the D side of Lenovo's new outstanding version of the 510S, we can see the four large floor mats and a full row of cooling windows. The other speakers are also on the D side, divided into two lower left and two lower right.

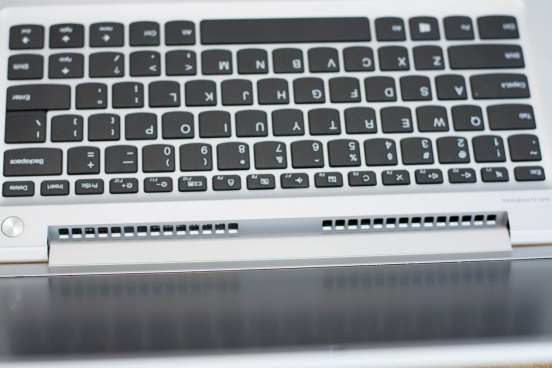

Radiator fan opening on the rear of the fuselage
Here Lenovo's new version of the excellent 510S cooling main fan opening in the back of the two, this design lays a foundation for the cooling of the aircraft, later we will do a systematic evaluation of the cooling of the machine in the later article.

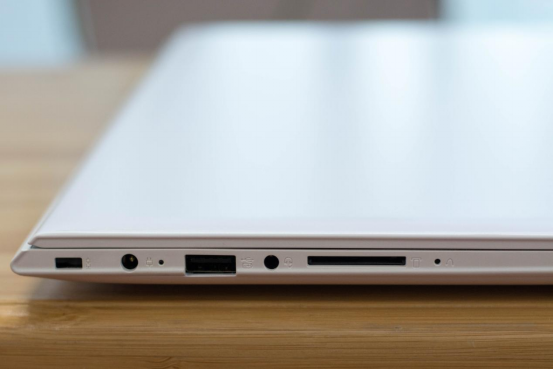

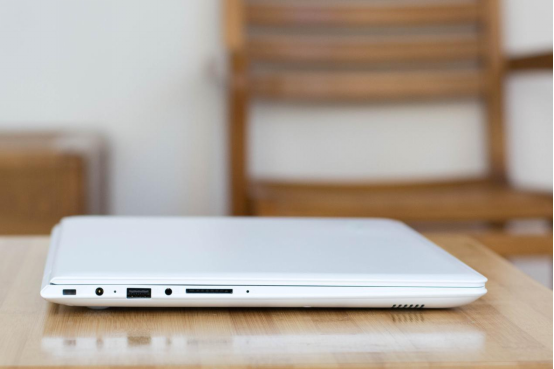

Right side interface: power jack, 1 USB port, 3.5mm headphone microphone jack, and card reader

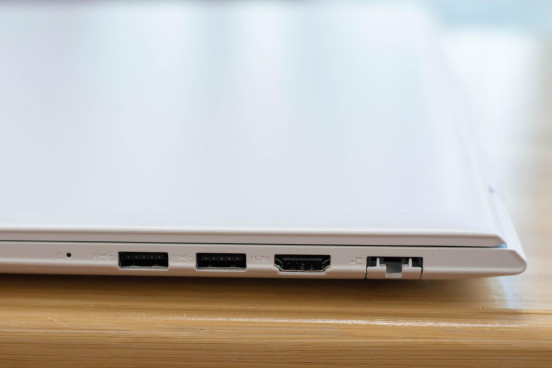

Left interface: Includes 2 USB 3.0 ports, HDMI port, and RJ-45 Ethernet port. The interface is relatively complete, enough to meet the needs of users.
Summarized from the design point of view Lenovo small new excellent version of 510S, fashion, simple, lightweight is its main style, details of the metal shell, anodizing process makes it quite texture, high-definition wide-angle screen, easy to use keyboard, no It does not reflect the quality of Lenovo's excellent new version of the 510S. At the same time, the rich interface is enough to meet the daily needs of users.
Lenovo's new 510S thermal performance test:
Before we introduced Lenovo's new version of the excellent version 510S has a large area of ​​the cooling window opening, as well as the rear side of the dual cooling fan opening, in this link we will specifically look at the cooling performance of the small new outstanding version of 510S. Here we will let the body GPU and CPU work under a higher load for a period of time, the internal core temperature and the body surface temperature of the specific performance.
Before the machine
After the machine

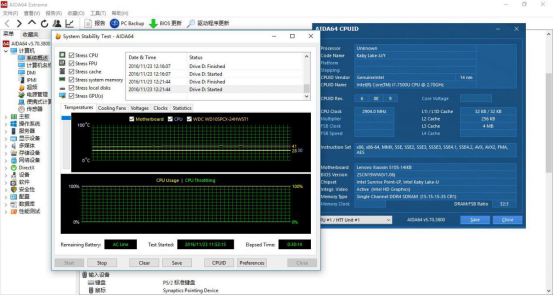

Here we use the test of the copying machine by the Furmark copying machine. The Furmark will run the CPU and the graphics card of the two heat-generating components. In order to let everyone see the heat dissipation of the tester in a more intuitive way, We also use the FLUKE infrared thermal imager to let everyone see the temperature of each location more intuitively.

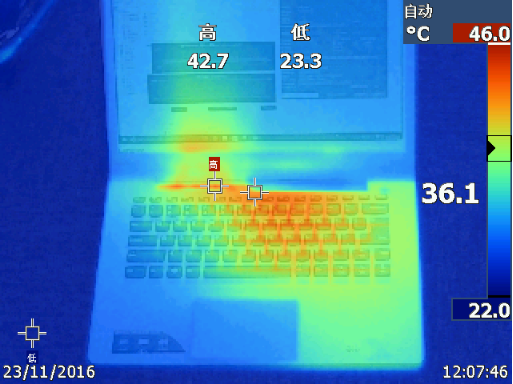

Positive temperature

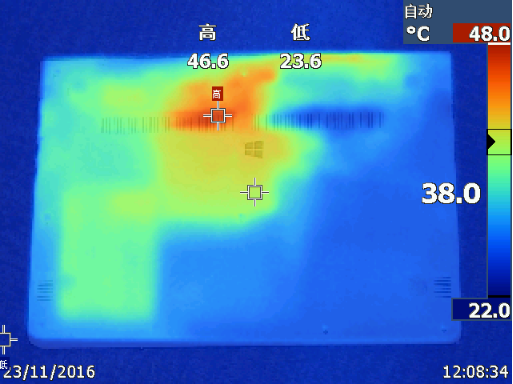

Back temperature
After the copy machine software test, Lenovo's new version of the excellent 510S performance is very good, the highest temperature of the front of the machine is about 42.7 °C mainly concentrated in the C surface of the keyboard on the left near the heat vent near the location, the low temperature area in the right body temperature About 23.3 °C. The maximum temperature on the back side is about 46.6°C and the low temperature range is 23.6°C. Here we can clearly see the location of the heating body, heat discharge with the fixed channel, the overall can give praise. Generally speaking, this full load will not be reached when the user uses it, so this heat dissipation performance can still be evaluated with excellence.
Lenovo's new outstanding version of the 510S machine performance test:
As a useful and cost-effective notebook product, Lenovo's new version of the excellent 510S equipped with the latest seventh-generation Intel Core i7-7500U, with Intel HD Graphics620 core graphics, let's take a look at his running performance.

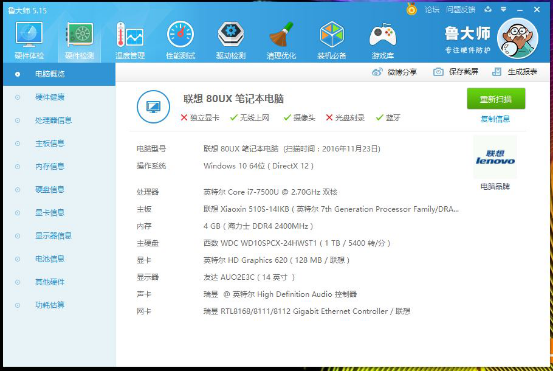

Master Lu:
Master Lu's configuration

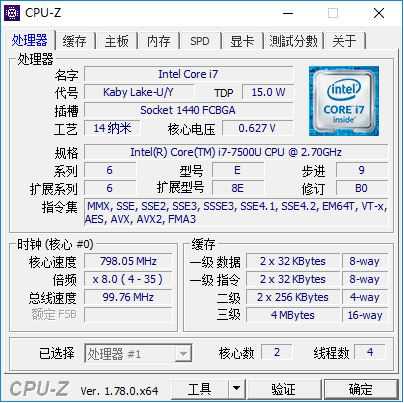

Can be seen, Intel Core i7-7500U processor dual-core four threads, with 4M cache, clocked at 2.7GHz, the highest Turbo frequency can reach 3.5GHz.
Here we test the CPU with CINEBENCH:

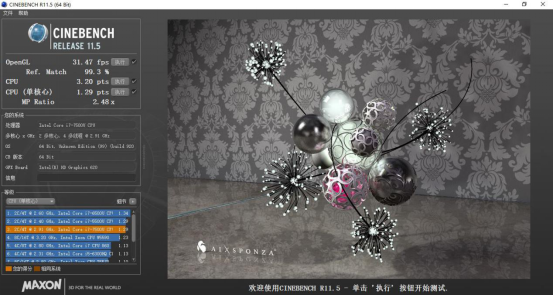

CB11

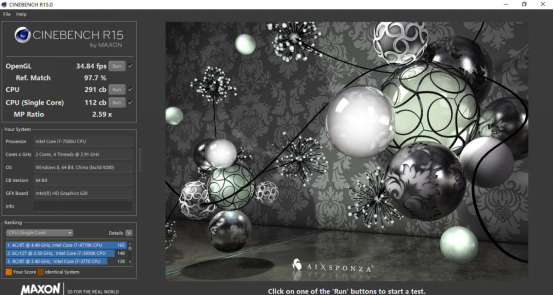

CB15
CineBench R15 can support up to 256 logic cores compared to up to 16 cores in CineBench R11.5. In addition, the investigation of shaders, anti-aliasing, shadows, lights, and reflection blur was strengthened, and the detection of CPU performance was more accurate. In the tests performed on the processor used in this machine with CINEBENCH R15, the scores were single-core 112CB, multi-core 291CB, and OpenGL 34.84fps.

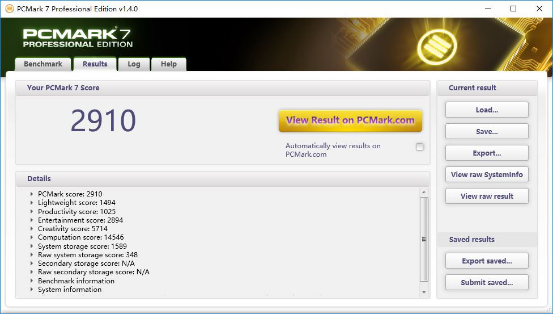

Here we use PCmark7 to test the use of the whole machine:
From the PCMark7 test, the aircraft scored 2910 points. This score is a reflection of all aspects of the aircraft.

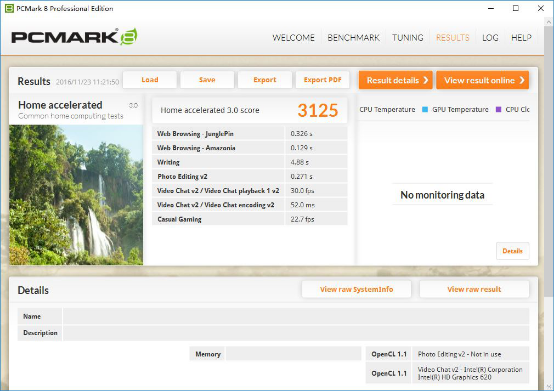

At PCmark8, we tested its home performance.
PC Mark8 home scoring performance performance is still very good, got a 3125 high score.
Here Lenovo's new version of the excellent 510S although not equipped with discrete graphics, but equipped with Intel HD Graphics 620 core graphics, performance can meet most of the needs of users. Because here is the seventh-generation i7 processor, the code for the core graphics card has also changed from 520 to 620.

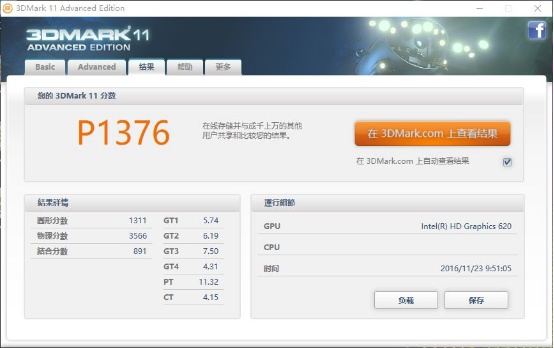

The score of 3D Mark 11 can still be very objective to evaluate the performance level of the graphics card. And to test the 3D performance of the machine from different grades. The P score for this aircraft is 1376.
From the results of various running points, Lenovo's excellent performance of the new version of the 510S is still very balanced, it can be said that it can fully meet the daily needs of users, running most of the current mainstream games are not to mention.
Evaluation summary:
From this Lenovo's new outstanding version of the 510S notebook, we can once again feel that Lenovo keeps up with design trends, ultra-thin body design, the color of space silver, Haoyuebai and nebula powder makes it look very high, but also to provide users with more choices. The seventh-generation Intel Core i7-7500U processor, together with the 512G SSD solid-state drive, can provide users with a rapid use experience and good performance. According to different configurations, this model's price ranges from 4399-5799, l Lenovo's official store, Jingdong Mall, and Tmall flagship store all have sales. The user who wants to replace the computer in the near future and is in the budget may wish to consider it.
