At the beginning of August, Samsung brought the flagship mobile phone Galaxy Note7 in the second half of the year. Compared with the Galaxy S7 edge, Samsung has had more than the Galaxy S7 edge. Now, after the foreign media gets the Samsung Galaxy Note7, it will be dismantled to see Samsung. Whether the beauty of the big screen new machine is in the heart.
The Galaxy Note7 is a double-sided curved screen. When the screen size is increased, the body is not much larger than the Galaxy S7 edge, and the rounder and more refined design has a high overall value.

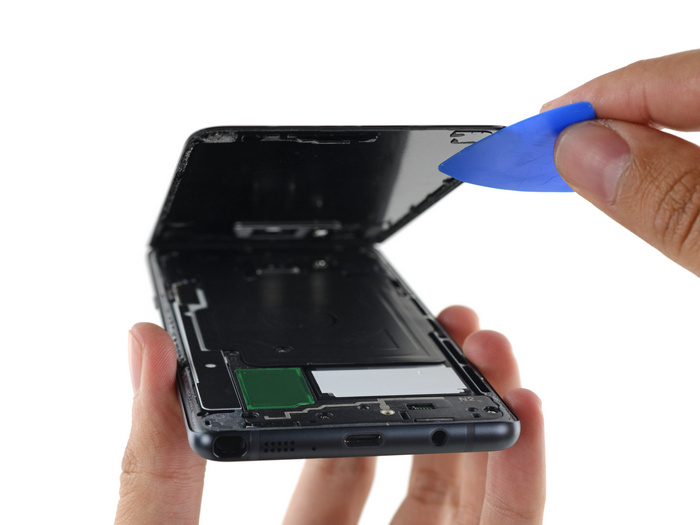

iFixit sacrificed black and thick heat for a period of time, and then separated the 2.5D glass cover with a tool. You can see that there are no parts on the rear glass cover, and the glue is glued to the body, which seems to be simple and rough, but the Galaxy Note7 is With IP68 anti-dust water capacity.
This part is a wireless charging coil that supports fast wireless charging and is compatible with the original Galaxy S7/S7 edge charging base. In addition, the NFC antenna also seems to be inside.
This is the connection cable of the battery. The battery is glued to the middle frame with a strip of glue. The battery capacity is 3500mAh, 13.48Wh. In fact, this is slightly smaller than the 13.86Wh on the Galaxy S7 edge.
The main board is L-shaped, the camera is connected to the main board, and the important chip part has a barrier cover.
The Galaxy Note7 has two front-facing cameras, but one is for iris recognition (the one on the right) and the self-timer is 5 megapixels.
The large module placed next to the SIM card slot is the rear camera, which is the same as the Galaxy S7/S7 edge. It is a 12-megapixel camera based on the Sony IMX260 module and supports the Dual Pixel technology camera.
In the motherboard part, the red box is Samsung 4GB LPDDR4 memory, the Qualcomm Snapdragon 820 processor is placed below, the orange frame is Samsung 64GB UFS 2.0 flash memory, and the others are some audio chips, RF radios, NFC controllers, etc.

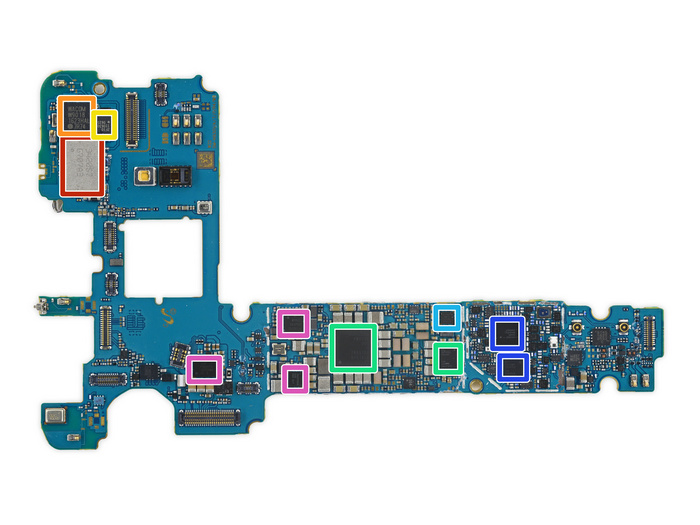

On the back of the motherboard, the red box is a Wi-Fi module, which appears to be provided by Broadcom, the orange is the touch control IC of Wacom, and the others are some tracking chips and power management.
The middle frame has a heat pipe design for the motherboard to dissipate heat, which appears on the Galaxy S7/S7 edge.

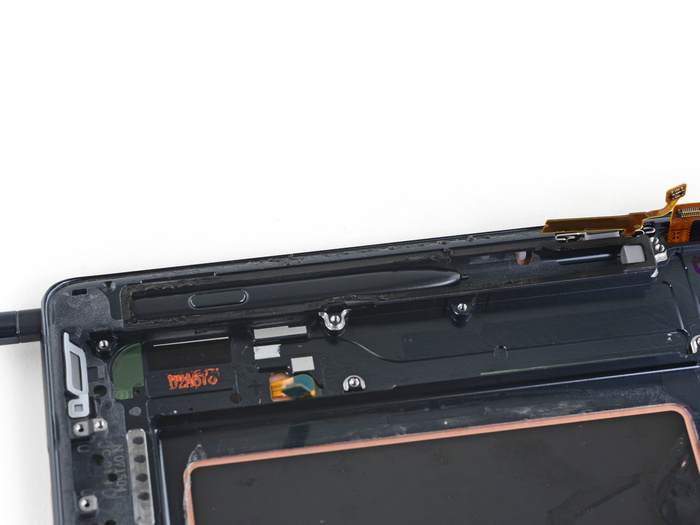

The USB interface, headphone jack, S Pen pen slot, and side buttons all have a waterproof design.
iFixit gives the Galaxy Note7 only 4 points of repairable score, the battery is not easy to replace, the back glass can not be installed properly, and the existence of the double-sided curved screen makes it almost impossible to replace the front glass panel without damaging the screen. .
