In the past year, the company’s sisters, Auntie and Auntie, have all replaced their smartphones. As a result, the company’s weaker Mercury route, which was used for ap, became even more unreliable and often dropped, Kakaka. We wanted to propose company to change one and was cut by reason that WiFi was not bad and did not delay work. Helplessly, several colleagues in the office raised a hand for their wifi fluency. Taking advantage of Suning wayward pay for the first time to use the minus 40 spring breeze, into the millet route 3. The intention is that I want to buy newifi, after all, almost configured, the price is a lot cheaper. But I couldn’t stand the company's rice flour. I can only surrender.    Â

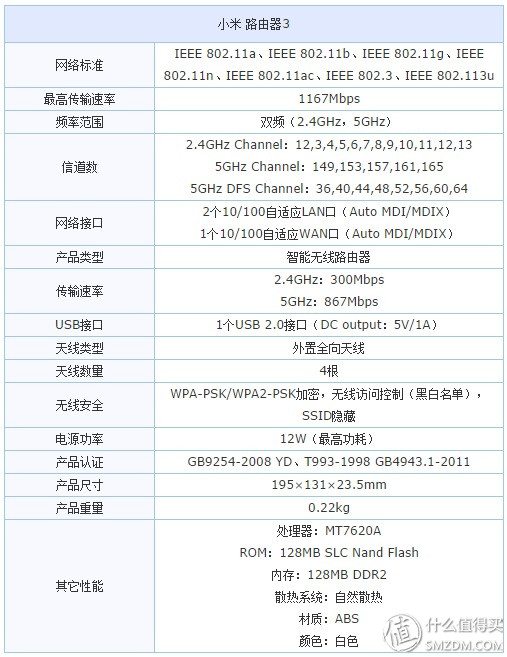

The parameter map comes from the internet and thanks to the people who made the map.
Popular dual-band wifi, 128mb ram/rom. MediaTek solution, USB2.0, 100Mb. Unfortunately, it is DDR2 (millet router mini or DDR3).
No surprises, but it's also law-abiding.
Xiaomi uses SF Express for shipment, and it is very fast. I like logistics.
Well, no environmentally friendly packaging

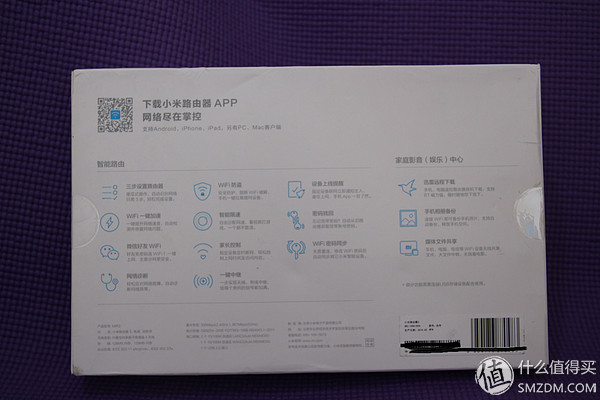

The main functions are clearly marked on the back of the package.

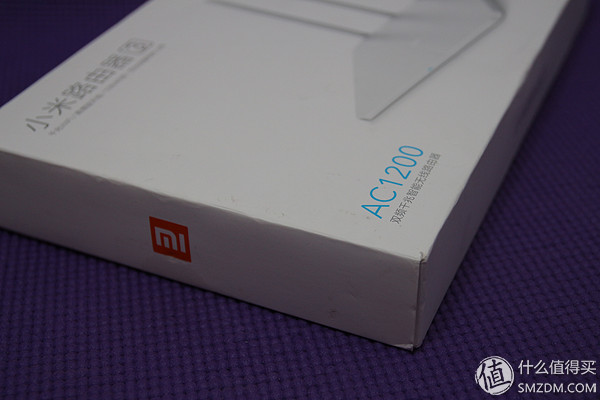

Ac1200, this everyone looks like. Mobile phone tablet support ac/5G more practical, bring greater internal network bandwidth. As for laptops or desktops, ac NICs are not cheap.

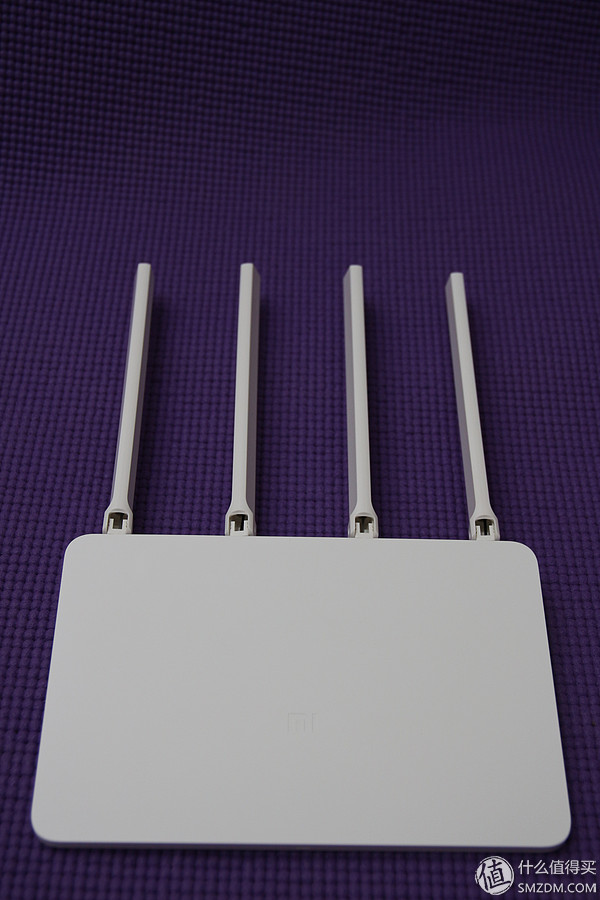

White plastic shell, simple shape. Only one indicator. Yes, this is Jobs.

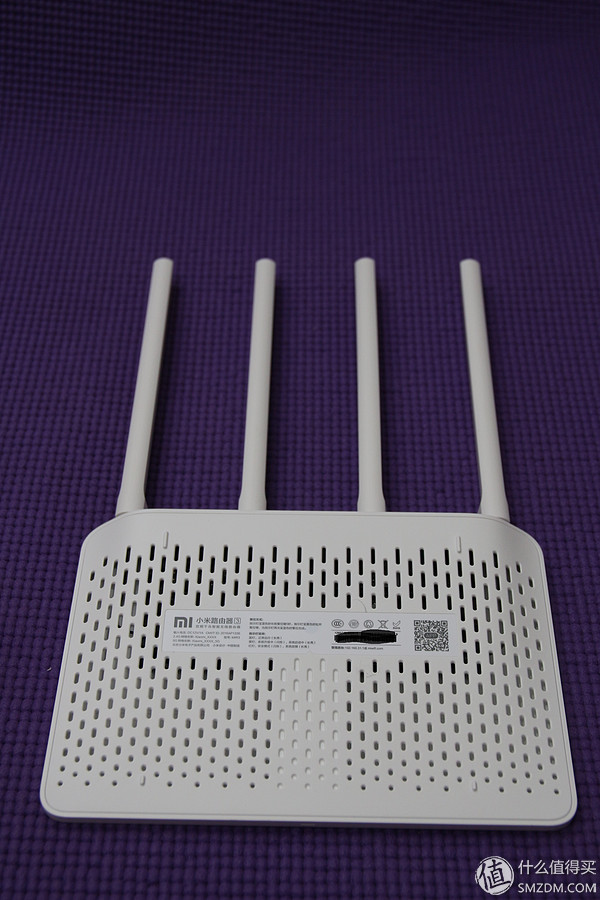

On the back of dense cooling holes, four fixed antennas.

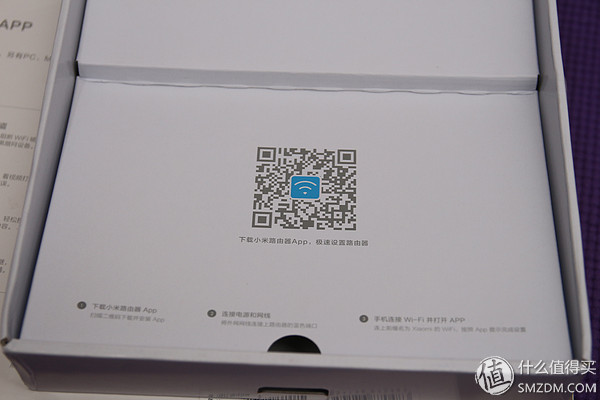

The paper jam inside the box almost made me think that it wasn't Xiaomi's product. I didn't have the kind of solid feeling I had before.

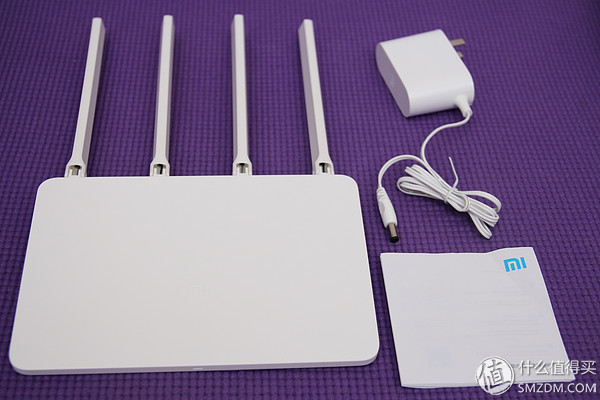

Family portrait, the adapter is pretty. The instructions are simple, but the introduction is detailed enough.

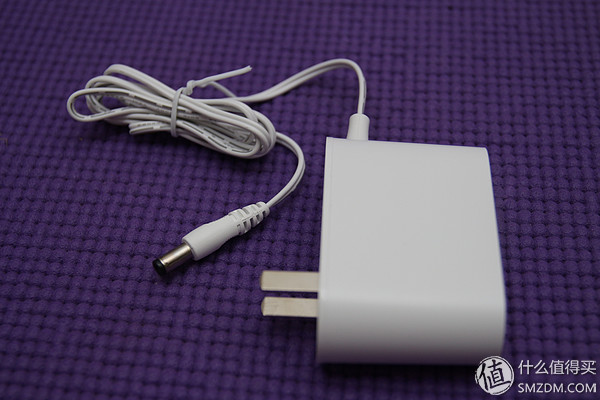

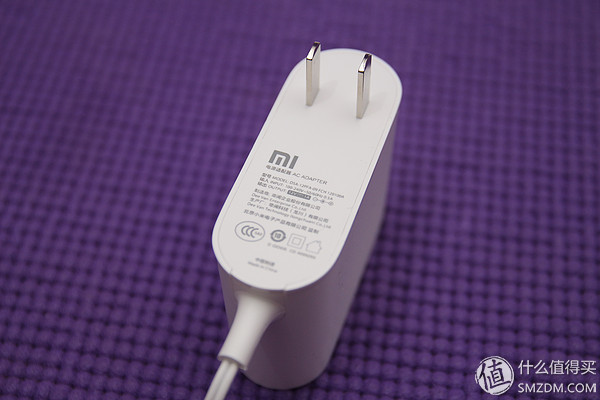

The adapter is very compact and does not occupy much space on the patch panel. Ultrasonic welding, very beautiful treatment. Heyuan's Taiwanese enterprise Tesing Technology production, millet adapter suppliers seem to be quite a lot.

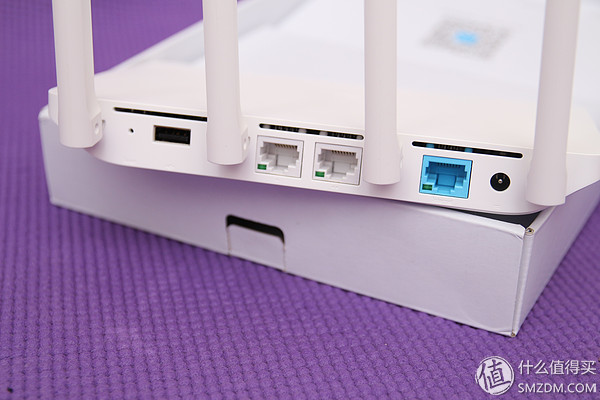

List of back interfaces. No matter how you say it, more than a hundred routes, two LAN ports are really too stingy.
One hundred megabytes with indicator lights. Eight full needles, Europe is also (does not have any soft use).

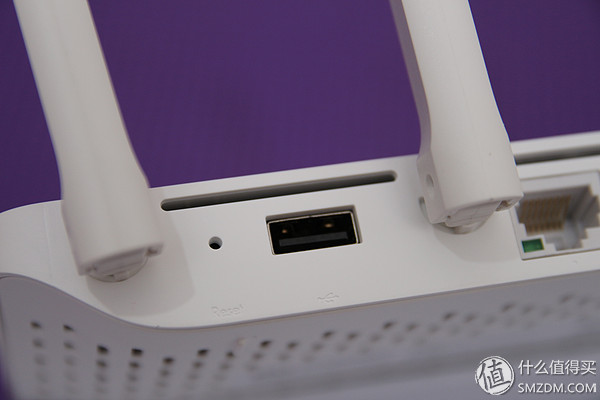

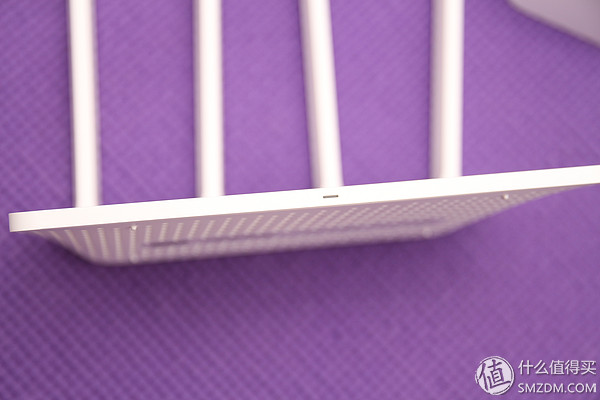

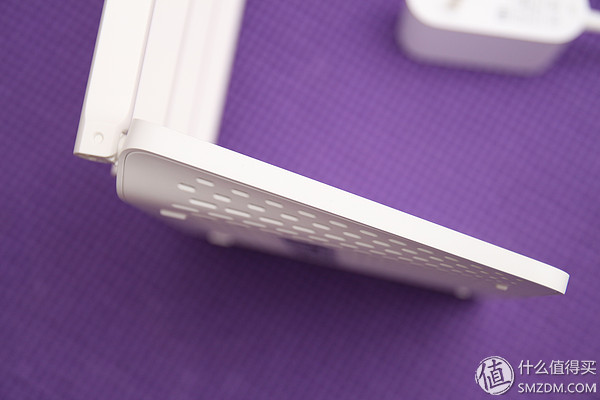

The leftmost hole is the reset port, and then the usb interface. The 5W power with a removable hard disk is estimated to be a bit sturdy, and the U disk is still fine. . There are several thin openings on the back of the router to expand the cooling space.

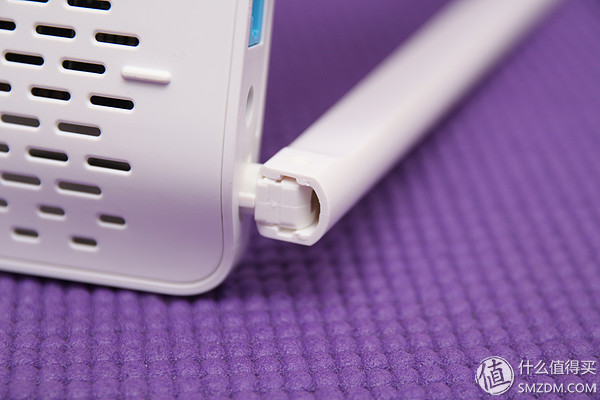

Fixed antennas can save a lot of costs. Of course, there is no need for this price to be detachable.

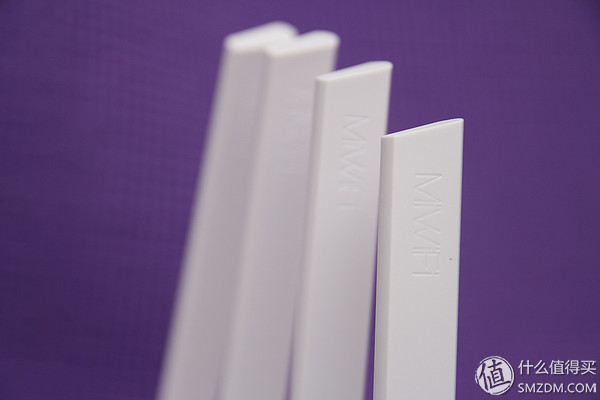

The antenna details are pretty good, and the imprint of miwifi is everywhere.
There is also a curve design.
The only one indicator.
The shape is very slim and the appearance is still very beautiful. The mold is very good and smooth. The buckle is compact but easy to disassemble.
Of course, if you are so thin, pcb should not be very big.
When things are in hand, don't take a look and I will feel uncomfortable.

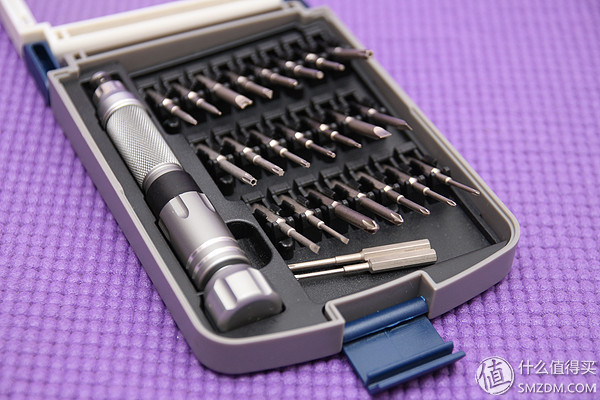

Workers must first sharpen their tools in order to be good at their deeds. Nanqi this suit has always been my good partner.
The buckle at the edge of the routing is easy to remove. A thin card is enough, but Xiaomi still has a screw for everyone. At the red circle, a friend will say this, and if you open it, you will break the label. Nonono, everyone forgot about the means of profiteering in the computer city, we have a hair dryer Dafa ah, 100% non-destructive!

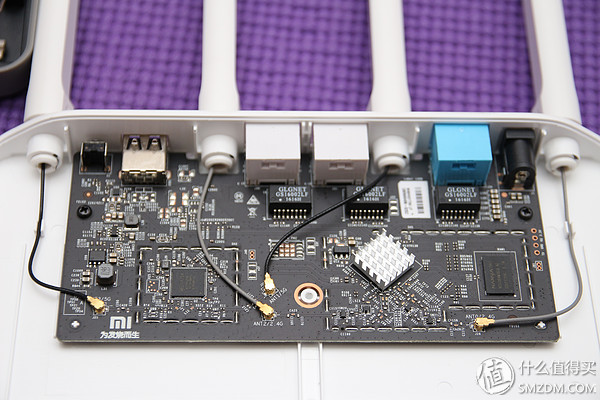

Set off the cover, this board is much smaller than I thought. The antenna has two more than the mini version, but the material is indeed a lot worse.
There is no thermal patch, no mask, no heat plate. Although MediaTek's plan is not too hot, millet also means a heat sink. But this shabby cooling configuration. I am not optimistic about the performance of the summer, because for the sake of signal coverage, we put the route in an air-conditioned place. It looks like I have to find a few heat sinks in the electronics market. If it is not good enough, the warehouse should be able to pull out a few notebook radiators that colleagues have lost.

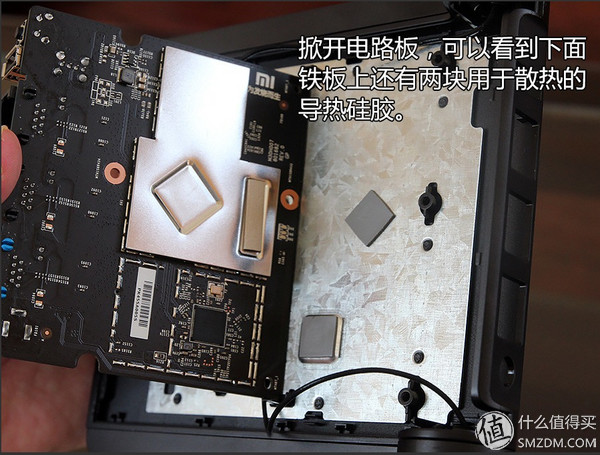

Mini version of the cooling configuration, this picture from the bubble network, thanks!
It is true that Xiaomi did not mention the relationship between Xiaomi Route 3 and Xiaomi's mini route. But the price is similar, I generally like to compare it. See what's more and what's missing.

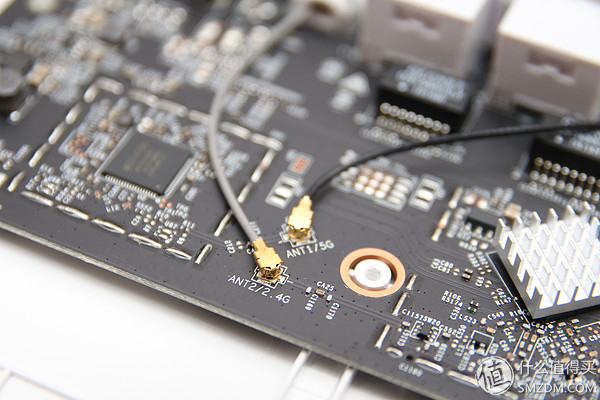

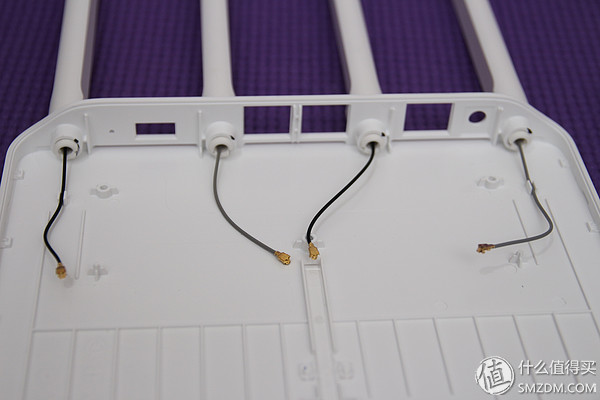

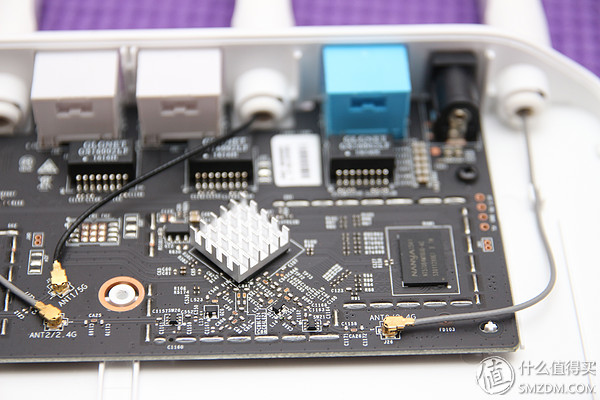

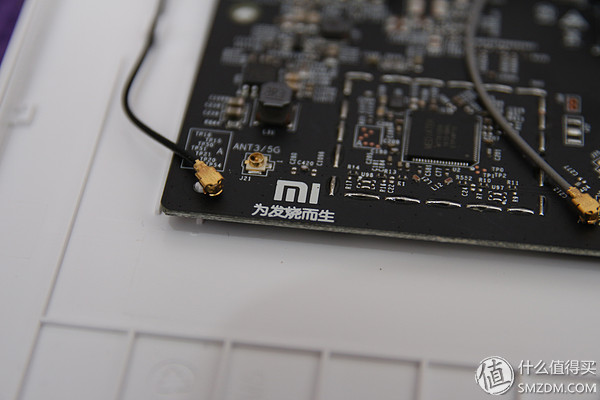

The i-pex connector is very easy to remove. 2.4G2, 5G2

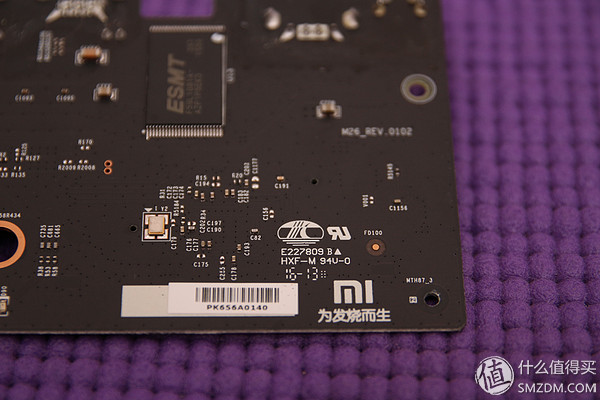

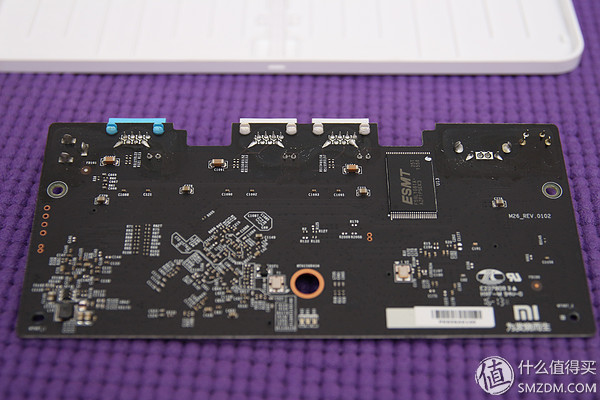

On the back of the pcb, the fixing of the pcb on the housing is accomplished by two screws and two fixing holes. Some locations still have to wash with a wash plate to make it cleaner.
Pic on ic is 128MB slc nand
Ideal is full, the reality is very skinny. Millet really did not forget the beginning of the heart, born for fever?

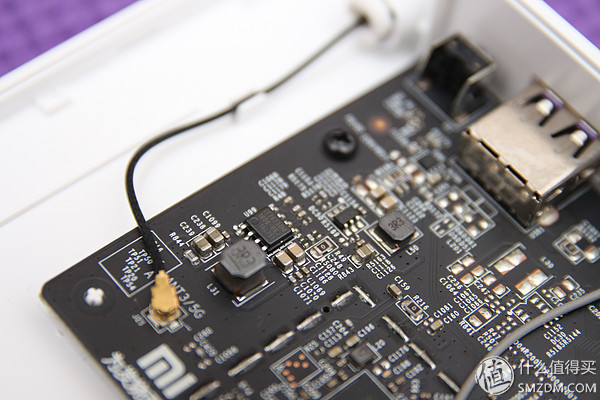

The 8-pin chip is the ITE power management IC, and the USB port processing is also OK.

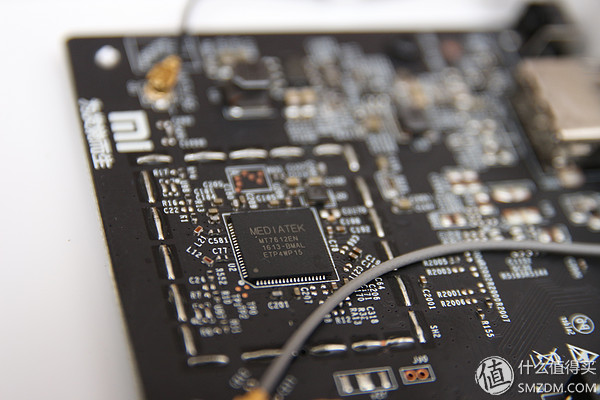

MT7612EN chip, supports 2x2 MIMO and 802.11ac, is responsible for 5G frequency band, surround the power amplifier circuit.
The heat sink covers the MT7628AN chip, and the frequency of 580 is responsible for the 2.4G frequency band.

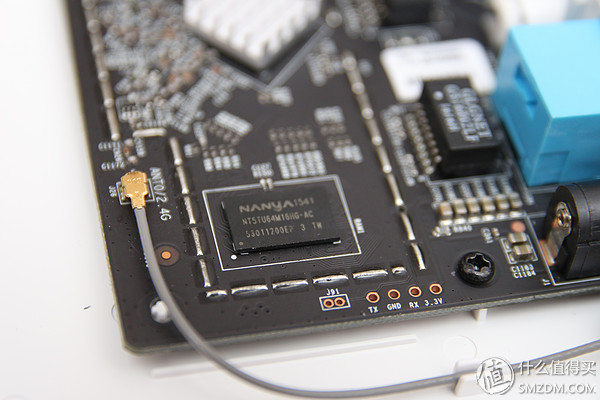

South Asia Technology's 128MB DDR2 memory, TTL pad is there, do not know if it is useful.

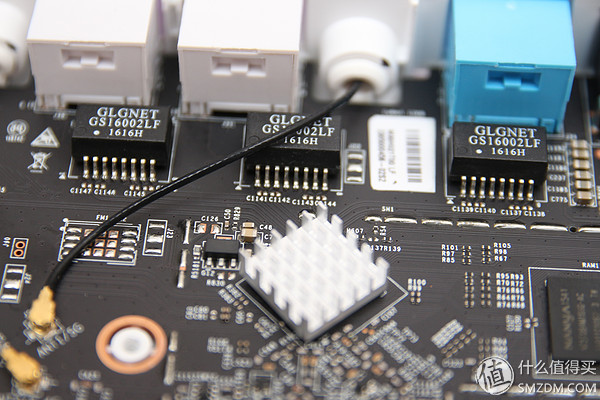

Each port has a separate mesh change.
Only use the network transformer of Shenzhen direction electron, RJ45 mouth estimate is this one's products too.
The antenna did not adopt the design of welding die, this is good. Pcb is full of slogans for fever
Overall, there is still nothing to be done with the work. That is, the use of materials has shrunk a lot. It is hard to think of a product that is full of sincerity.
Feeling a trick with tp, playing are dark down tricks.
It is nothing more than connecting the power supply and connecting the cable. But my switch is with dhcp, in order to test this route I'm too lazy to change settings. Follow the flow and use your mobile phone for related settings.

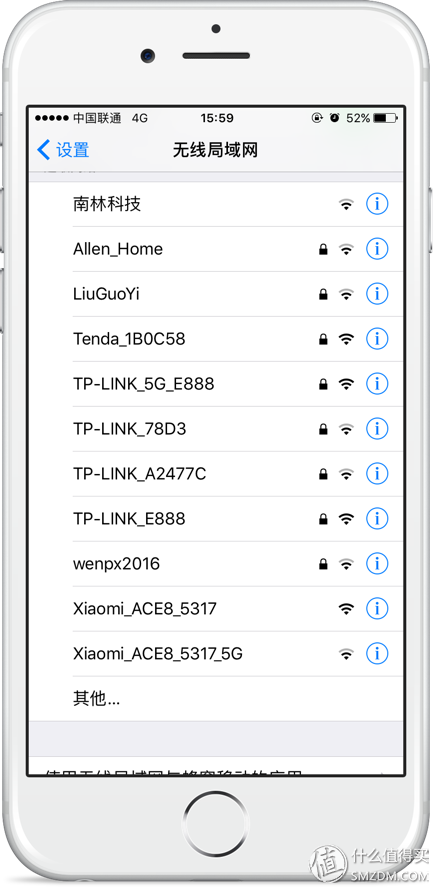

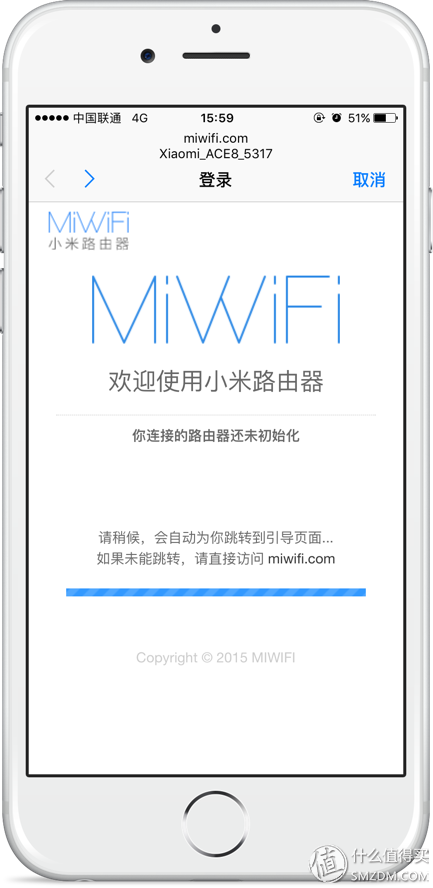

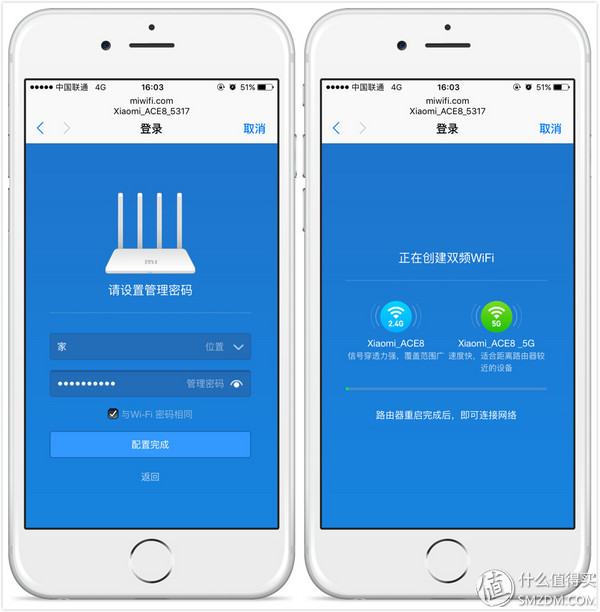

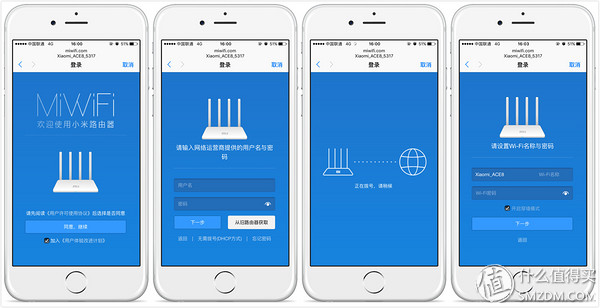

Do not need to enter a password. Click on the two wifis linked to the Xiaomi logo. Will automatically jump out of the authentication interface.
The rest is to enter a broadband account, set up wifi password, management password and the like.
The web version is still not easy to use, so the code is downloaded.
Landing binding millet account, finished.
The main interface of the app, I have already sent a 8G flash di cool bean to usb.

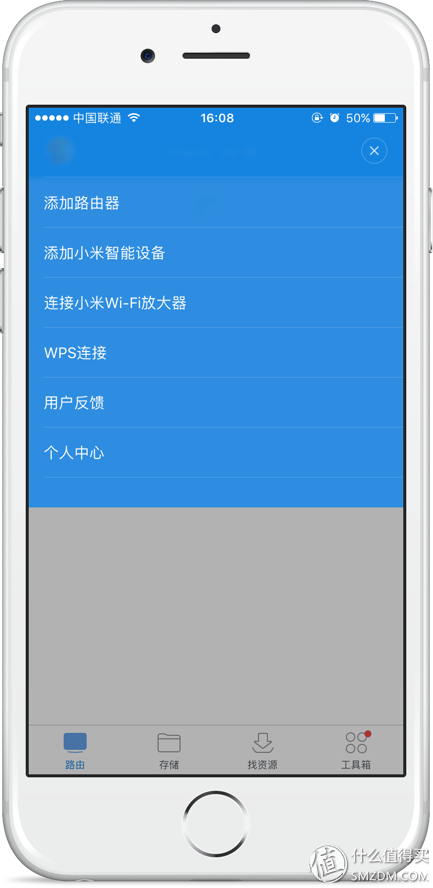

Routing interface menu

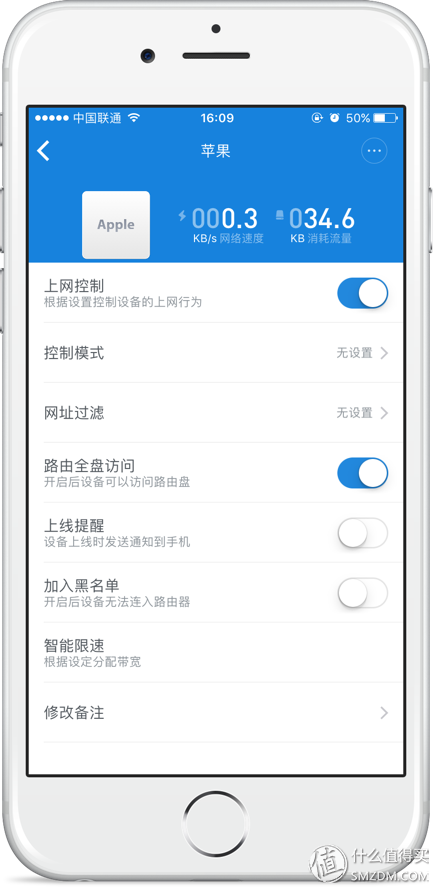

For devices that have been connected and attempted to connect, blackout and other operations can be performed.

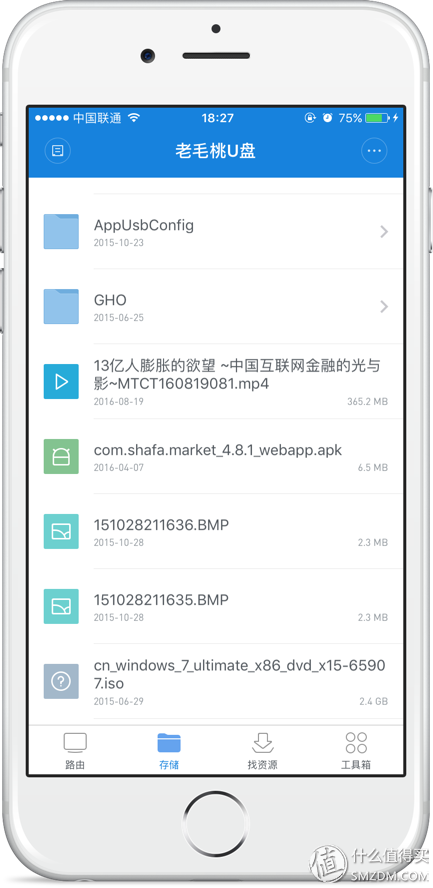

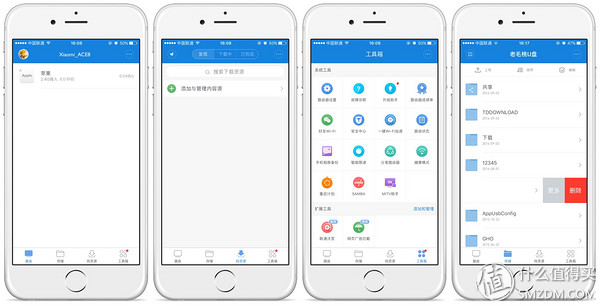

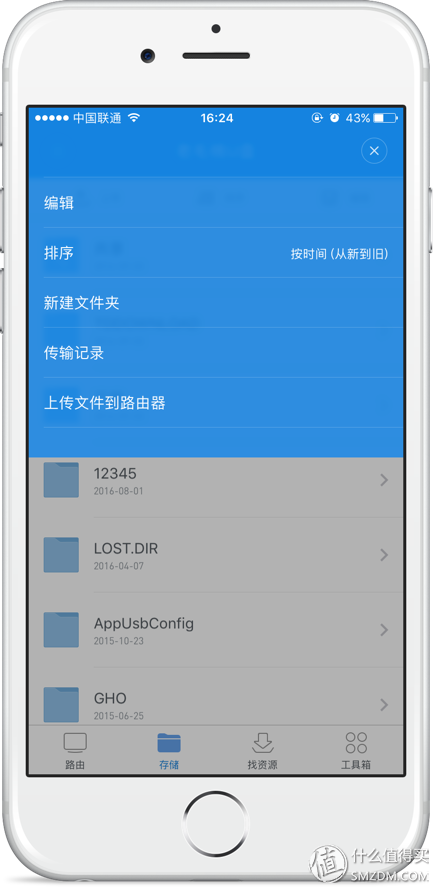

File management menus are simple, but they are good enough.

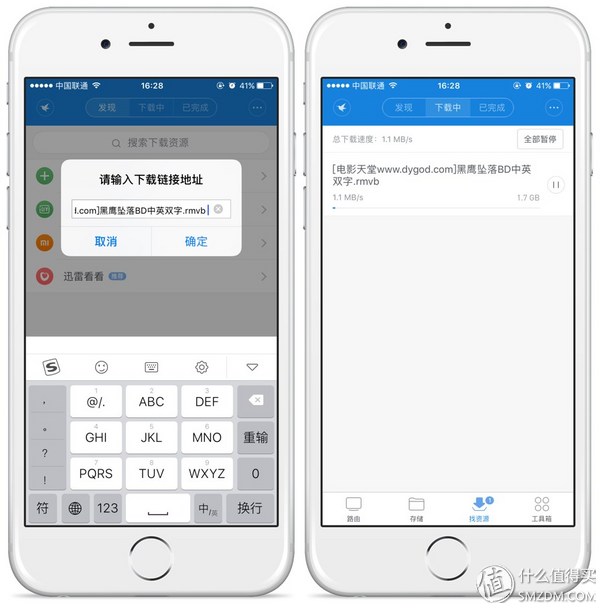

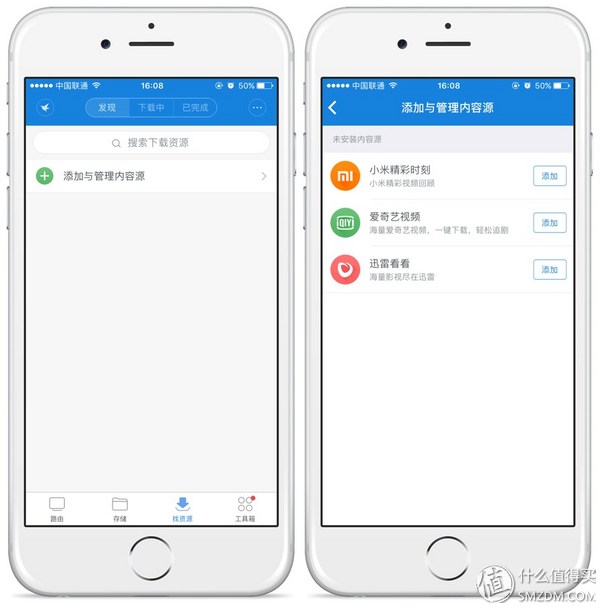

Resource Management Here is a download service, but you need to manually enter the download link, and the speed is very general. You only have to bind a Thunder member to give you acceleration.

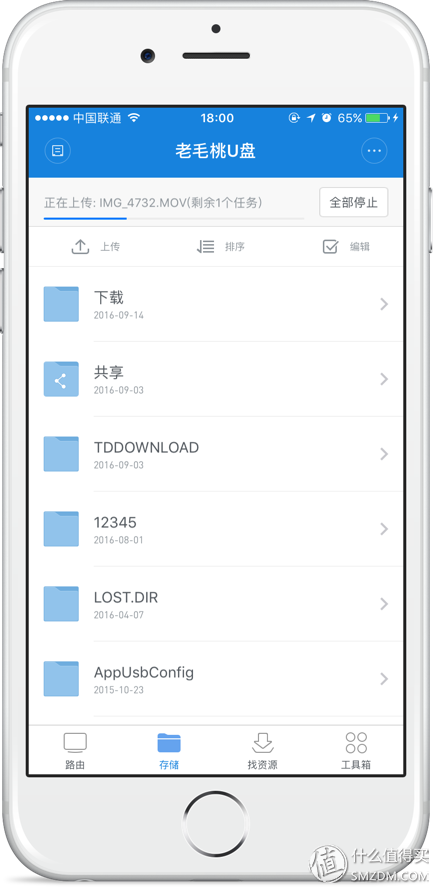

Mobile phone files are uploaded to the router at an average speed. Millet basically only solves the problem for you. Those who have a great deal of hope are still buying a nas and honestly. There is tossing psychology, black skirt is not bad.

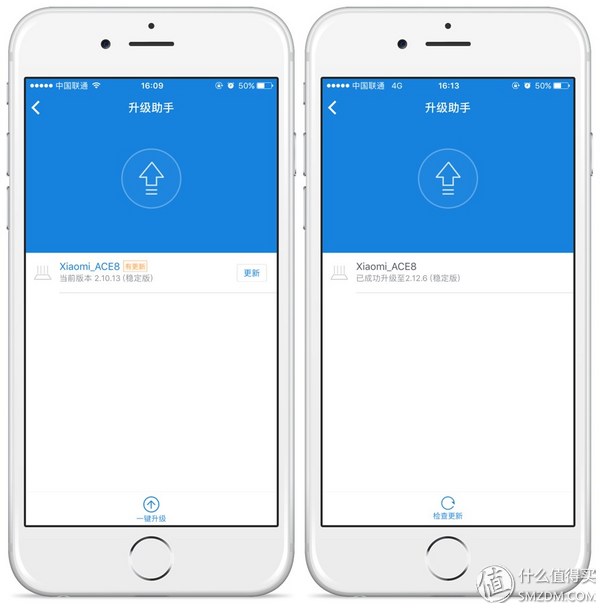

Can not be excused is the boot with new firmware, you can, this is a millet.
Some commonly used setting items are more feature-rich. Wifi dual frequency one very useful. Automatically backing up photos is also very good, but the small USB flash drive does not estimate how long it will take. NAS backup is the right way.

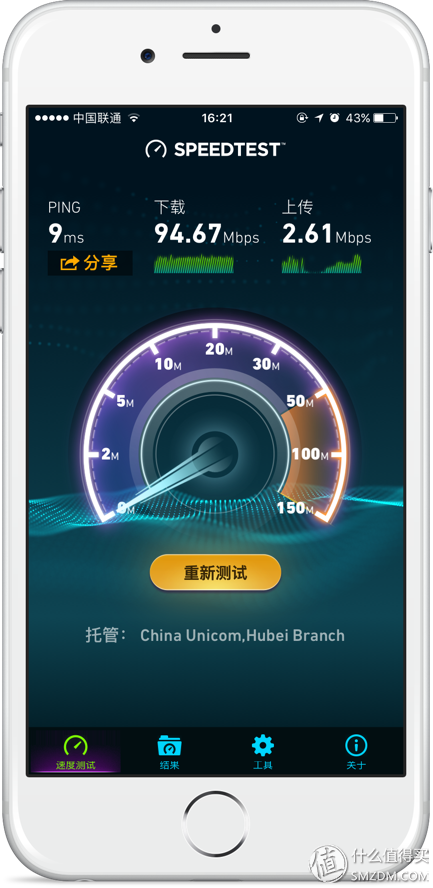

I do not know how, under 5G speed is also not satisfied. The test under r7000 can be uploaded with 100 downloads and 20m uploads.
Can not avoid the need to manage the password, I set the same as the wifi password, easy to remember. Anyway, other colleagues in the company will not toss routing.
Millet gift package came here, it is estimated that it contains controversial insert ads and the like.

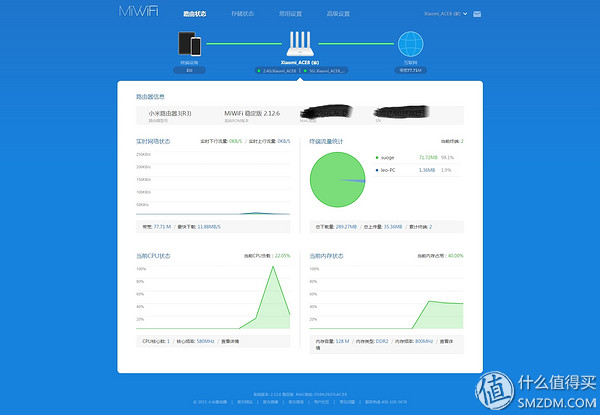

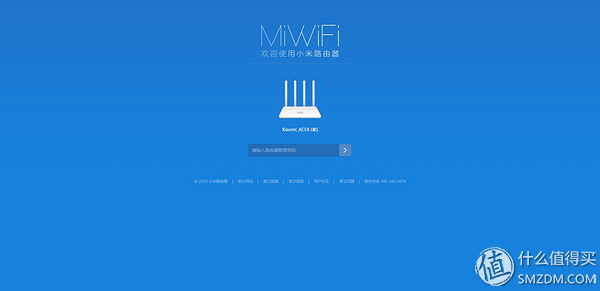

The home page shows the current status of the router. The information is still very rich.

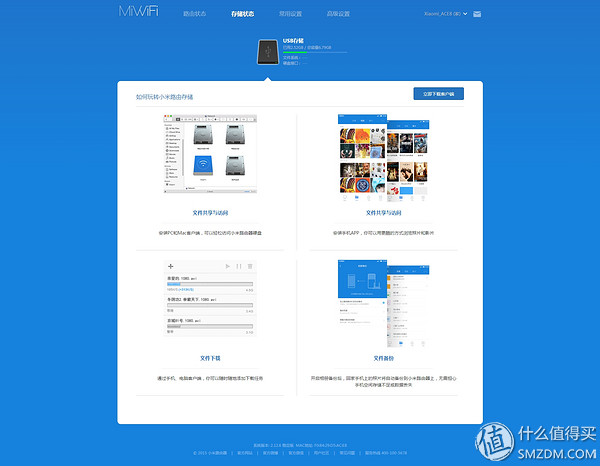

Storage status here can not directly manage files, you need pc version millet router software management. This we wait to say.

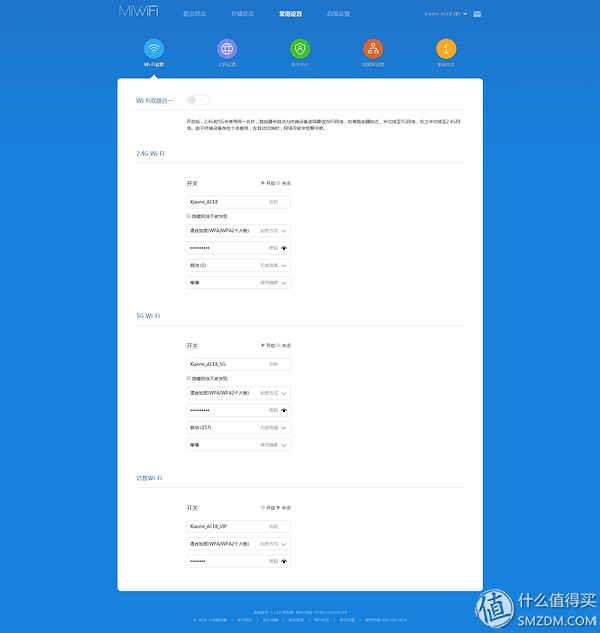

WiFi settings are very clear.
Internet settings, basically set once will not come again.
Access control, like the app side, can limit speeds and other management devices.

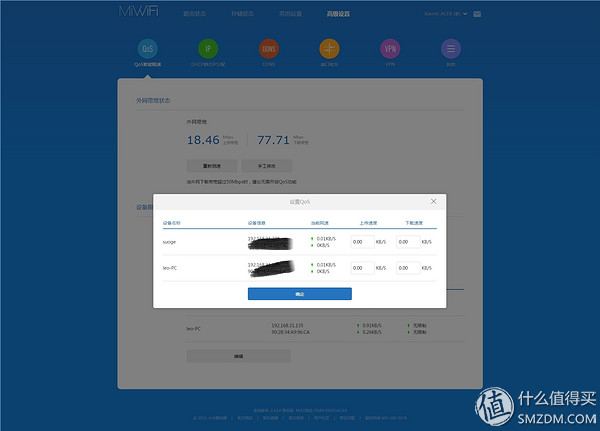

Qos, there are still many role.

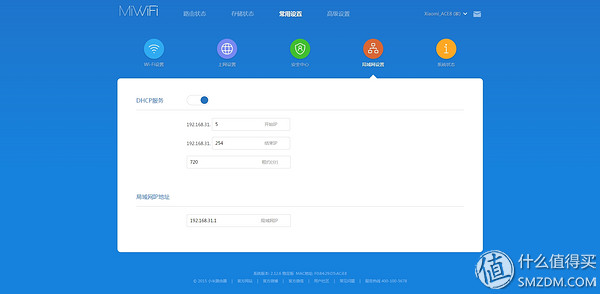

If everyone is using 192.168.1.1, it would be better to save a lot of things by trying a new router.

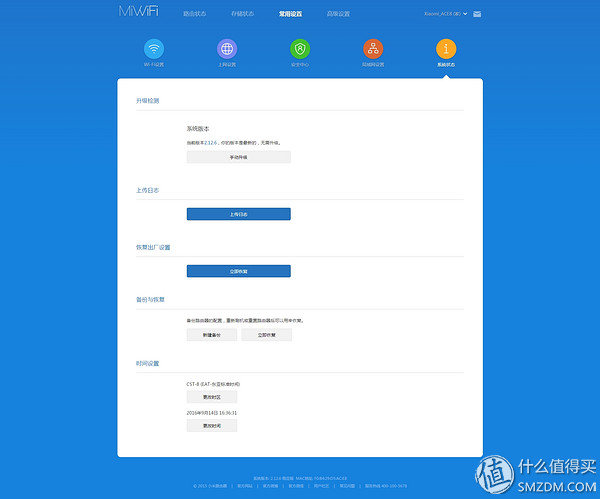

System State Here, I think this page is to encourage you to see if there is a firmware upgrade.

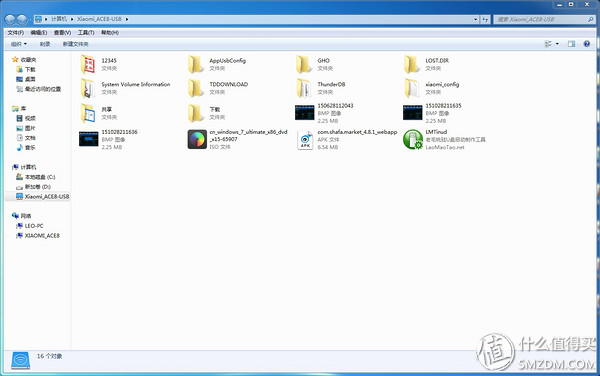

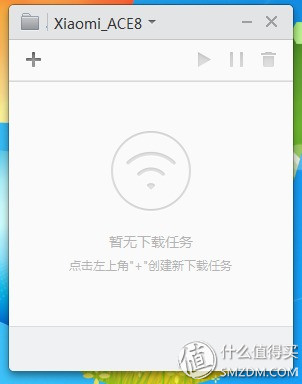

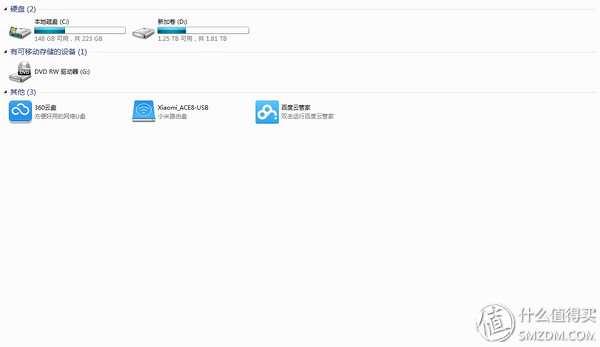

Surprisingly, the pc client is really not portable and the functionality is simple. Almost designed for downloading and managing files, clicking on the folder icon in the top left corner automatically opens the Explorer. Over the remote management U disk files on the router.

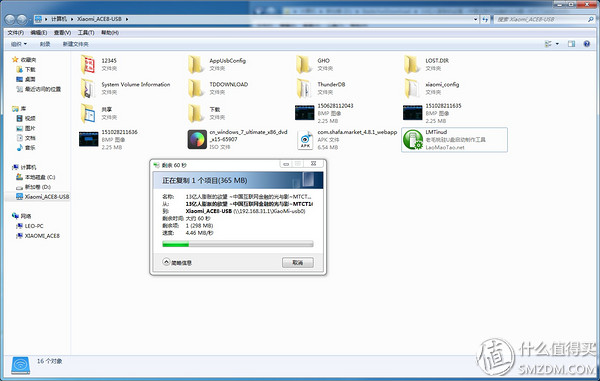

A few hundred megabytes of video files were selected and copied to the router's file management. The speed of the graphic is very gratifying, and bad reviews are unnecessary. Anyway, you can use it.
After the copy is complete, you can see the video in the app's file management. Click to play, buffering for a while to start, drag is the same. Constrained by the constraints of the usb interface, and then optimization, nothing can be improved.
Signal coverage Because there is a laptop to go home, so Huawei temporarily went into battle, made a test for the improvise.

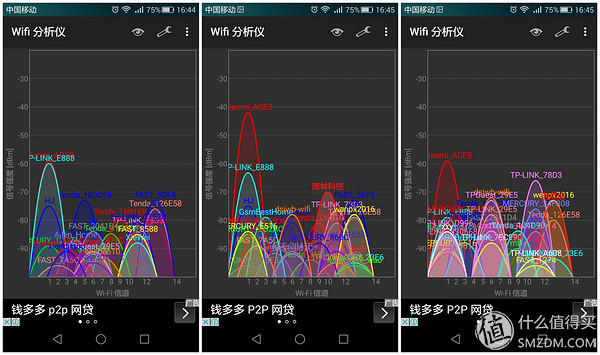

This is a measure of the three corners of the home, and the signal strength is OK. The router is centered in the living room. One hundred flat areas, 2.4G coverage is no problem, 5G cut in a wall.
After tossing the house for a day, she lost it to the office. Office 2 notebooks, 7 mobile phones, 3 tablets. Not yet out of the box. In general, this route is OK, it is worth buying after dropping 30 or 40. The current price is still a bit high, and there are no outstanding highlights. For those used in the summer without air-conditioning environment, or add a few heat sinks. As for buying a file service, I think it is better to wake up.
