[PConline evaluation] mentioned Gengsheng, we should first think of the high-end "G soul" series and the familiar "Three Kingdoms" series; 2016 Gengsheng has made a comprehensive upgrade of all product lines, not only we are familiar with. "G soul" series graphics cards, "Three Kingdoms" series of graphics cards are all changed its name to "Wind" series; I heard that "Wind" series of video cards have become as cheerful as the wind generally shocked, today we come to feel the feel of this storm-class player - cultivation GTX1050 Storm EX strength.
Gengsheng GTX 1050 Storm EX Reference Price: Loading... Image Reviews Quote Parameter Overview
â— Appearance: Continuation of the "Wind" series dressed in red, the frequency is very awesome

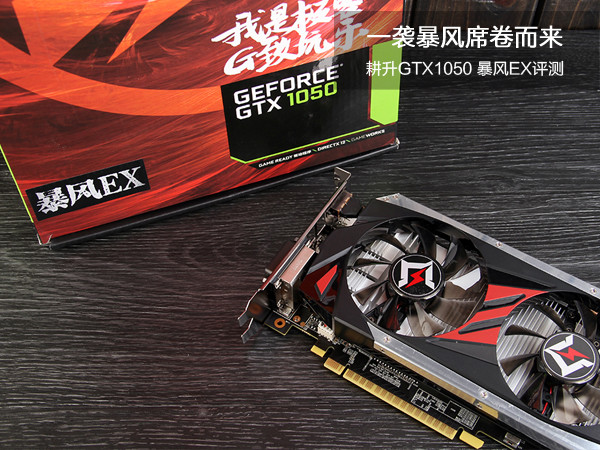

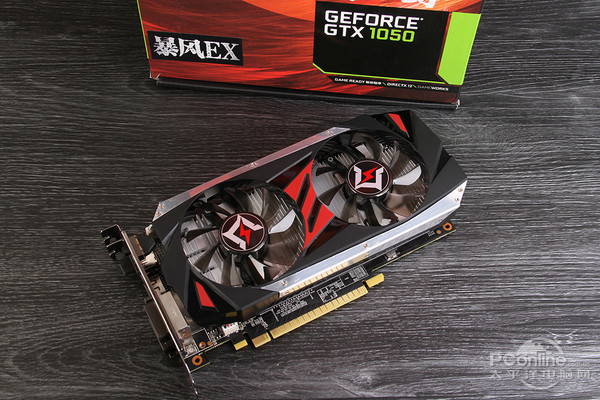

In the appearance of the continuation of the "wind" series of dressed in red, the box is quite dazzling red, marked in the lower left corner of the storm identified as Storm-level products EX, the entire card in the design also follows the red element, Still in the middle of the two fans put a huge "wind" clarification series.

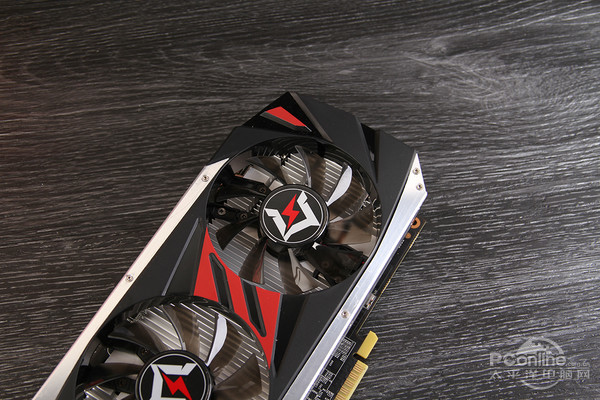

Gengsheng GTX1050 Storm EX adopts a wind blade XE radiator, and the 2×80mm blade is still relatively awesome. The biggest feature is to increase the cooling efficiency while allowing the fan to operate with low noise, which can give you a quiet and comfortable gaming environment.

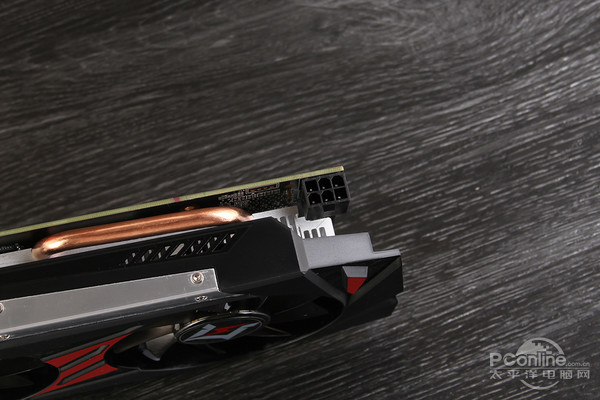

Although the external power supply is 6Pin, GTX1050 can meet the power consumption requirements even though it is powered by PCI-E alone. The external power supply with a single 6Pin is also used to better stabilize the frequency at a higher level.

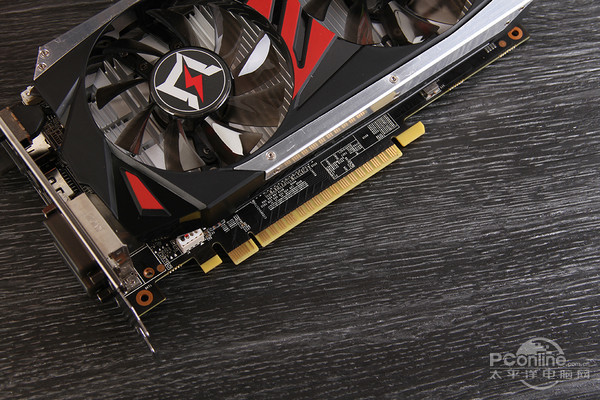

PCIe gold finger
This generation of GTX1050Ti, GTX1050 is for this kind of discontinuous *8 PCIe golden finger, anyway these two cores are running dissatisfied with PCIe 3.0*16 bandwidth.

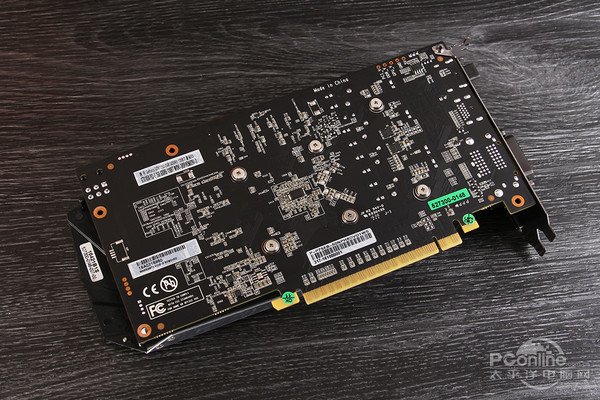

Gengsheng GTX1050's entire card size is 242mm x 126mm x 39mm. Based on the positioning of the GTX1050, this card has no backplane.

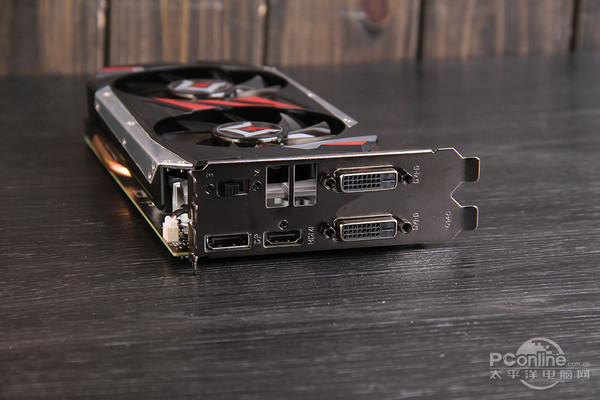

The GTX1050 GTX 1050 with this cultivating windstorm is still quite sufficient in the video output interface. It is equipped with two DVI interfaces, and it is also equipped with one HDMI and one DP interface, which can basically meet the interface requirements of most users. It also supports Multi-screen output.
â— Gengsheng GTX1050 Storm EX specifications:

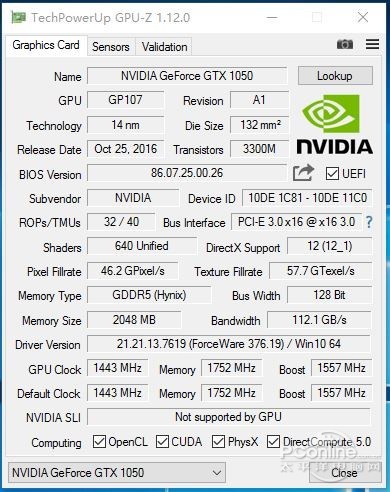

GPU-Z screenshots
Specifications Comments: GTX 1050 Storm GTX1050 higher than the public version of GTX1050 100MHz, in the non-public version of the commercial GTX1050 is the highest frequency of a mute, the price side Well, electricity providers offer around 949, high with high frequency of 1050 this price Still quite competitive.

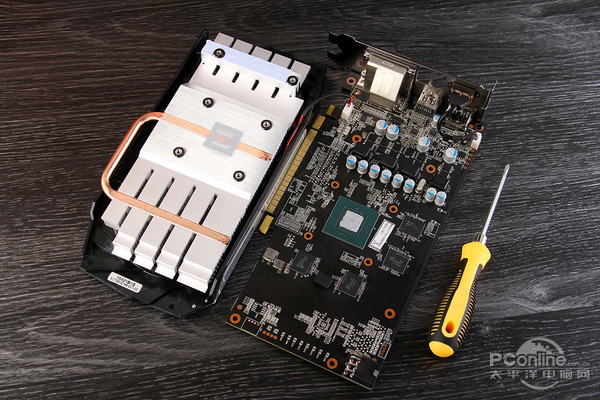

Radiator workmanship is excellent, suppress GP107 more than enoughThe entire card is fully backrested with 6 screws, without the presence of a back plate, which is quite easy to remove.
A heat pipe is enough to suppress the GP107 and it is neat and tidy.

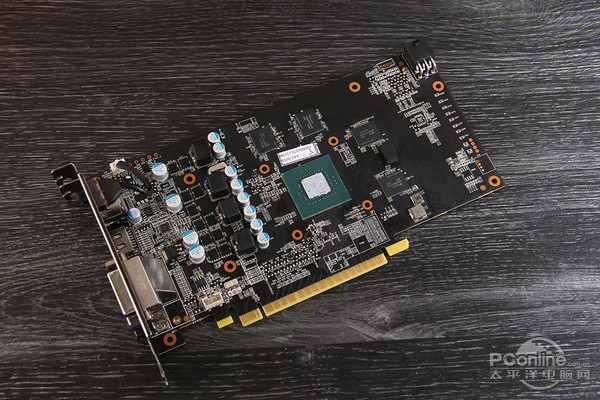

PCB board body

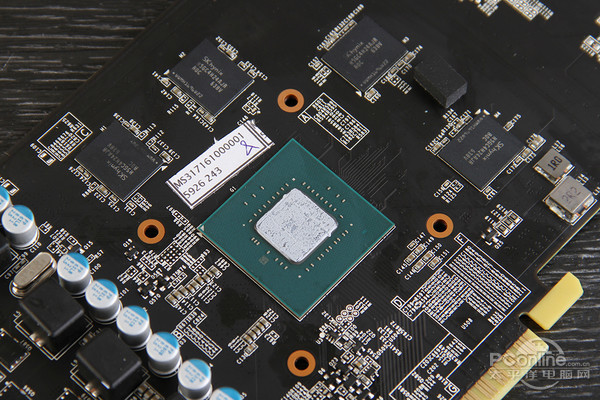

Four memory + GP107

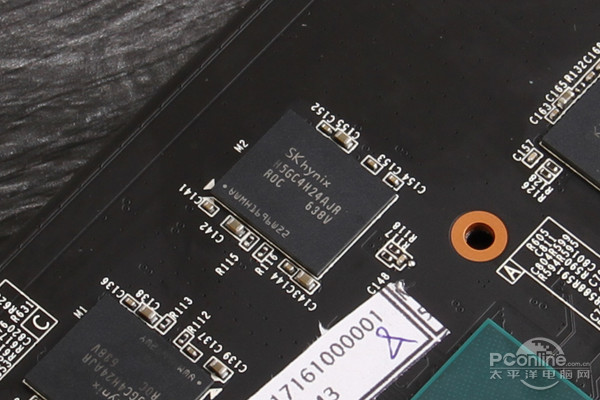

Hynix Memory
Memory is still still four Hynix 512MB GDDR5 memory, memory bit width of 128bit.

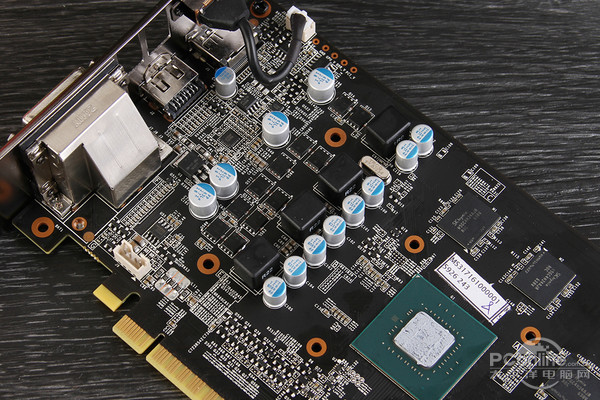

The power supply has adopted a 3+1 phase power supply design. The core power of the GP107 that handles low power consumption is more than enough.
3DMark Theory Test and Game Performance TestTest platform description:
NVIDIA GTX 1050Ti
Gengsheng GTX1050 Storm EX
AMD RX460
AMD Crimson Edition 16.11.3 WHQL
Platform Description: The test platform is still the old rule, consumer-grade platform Z170 + 6700K top-matching, this test used a total of 4 video cards for comparison testing, mainly to compare it positioning + positioning the following two models, the driver is Is the latest version of the two camps.

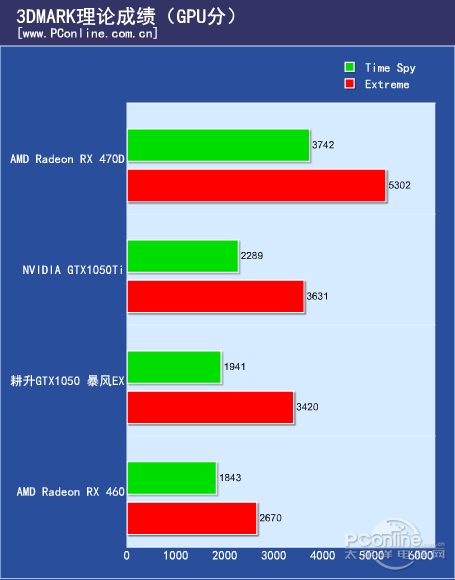

3DMARK theoretical performance test:
Since the GTX1050 only has 2GB of video memory, Ultra will not run. We only test Time Spy and Extreme.
Theoretical Test Summary: GTX 1050 storm EX performance slightly lower than the GTX1050Ti, but above the RX460, in the non-public version of the GTX1050 is still quite high, the high frequency of the improvement or the GTX1050's skill is still a certain increase.
â— Game performance measured:

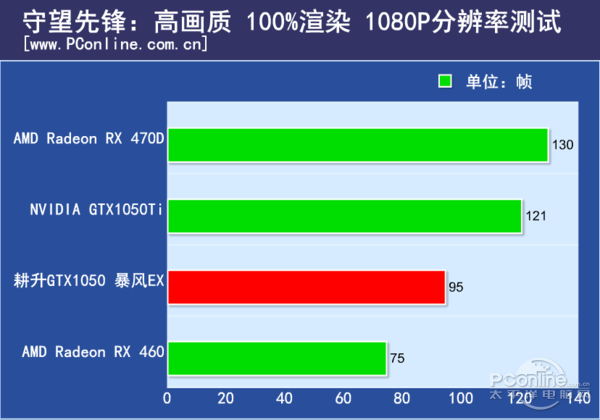

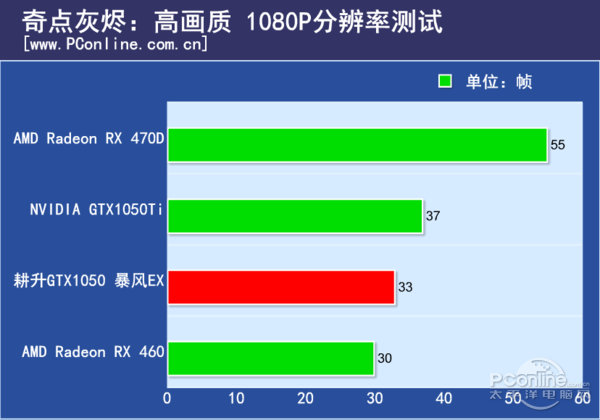

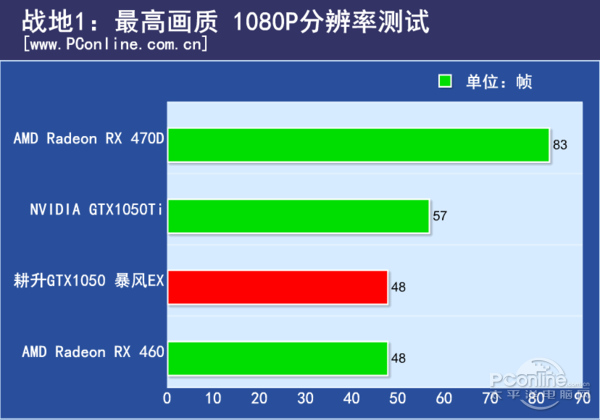

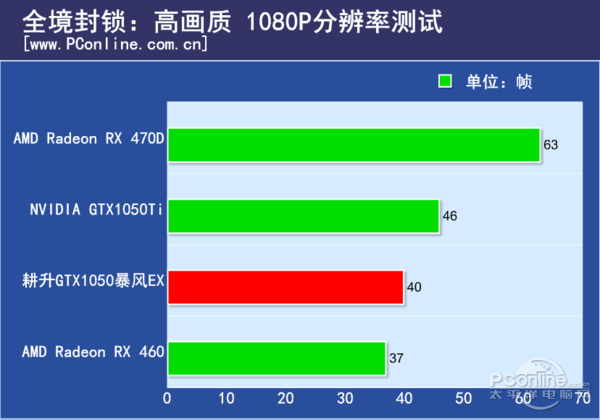

In terms of games, we use the currently popular five games to test, namely "Tomb Raider 10", "Singularity Ashes", "Watching Pioneer", "Blocking the whole territory", and "Battlefield 1."
Game Test Summary: Since we are testing relatively large stand-alone games, this GTX 1050 Storm Glow can basically run smoothly under high-quality images. Watching the pioneer can reach 95 frames. To eat online games that require slightly lower configuration, this high-frequency version of the GTX1050 still has certain advantages.

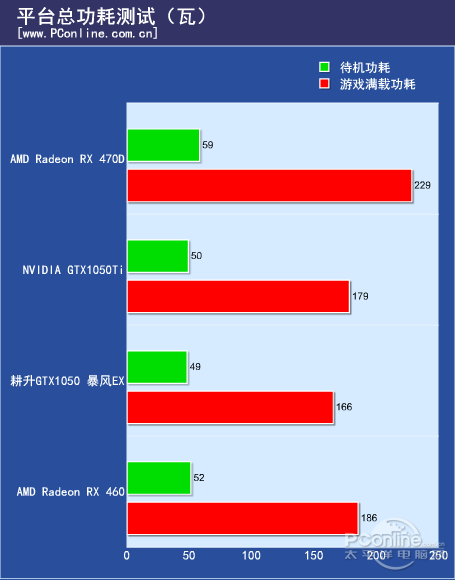

Platform power consumption, temperature, noise test and PConline evaluation room summaryâ— Platform power consumption test:
In order to simulate the player's real use scene, and the graphics card is positioned as a low-power gaming video card, we will use the power consumption of the standby idle and full-loaded games to compare the power consumption of the graphics card with other graphics cards. .
Power consumption test summary: non-public version of high frequency plus external 6Pin power supply design, power slightly higher than the public version is a must, but the overall power consumption is not high, it seems a 350W power enough to feed this Storm level GTX1050.
â— Graphics temperature test:

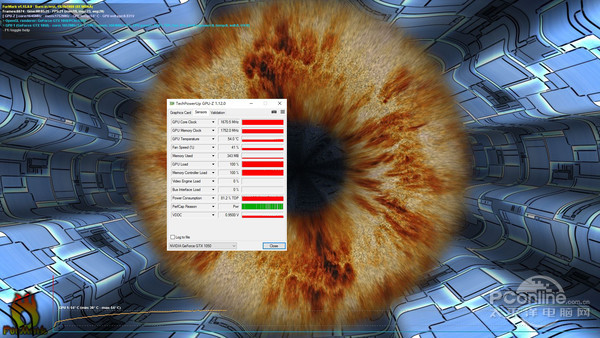

Full load temperature
Test summary: At room temperature 26°C, the GTX 1050 Storm EX's pager temperature is 54°C. This result is very cool in the high-frequency GTX 1050. This is because the GTX 1050 core itself is not very hot, and the wind edge radiator is excellent. It is quite cool, and it will not be over 70 degrees into the chassis. It is still very safe.
Test summary: When only 43.5 decibels were recorded, the wind blade heat dissipation was very quiet and there was almost no noise during operation.
About noise:
0 - 20 db: very quiet, almost imperceptible; 20 -40 db: quiet, like whisper; 40 - 60 db: normal general indoor conversation; 60 - 70 db: noisy: denervated; 70 -90 db: Very noisy, nerve cells are damaged. 90 - 100 db: Intensified noise, impaired hearing; 100 - 120 db: Unbearable, one minute or temporary deafness. 120 decibels or more: Extremely paralysed or fully paralyzed; 300 decibels or more: People with a radius of 20 km cannot repair deafness.

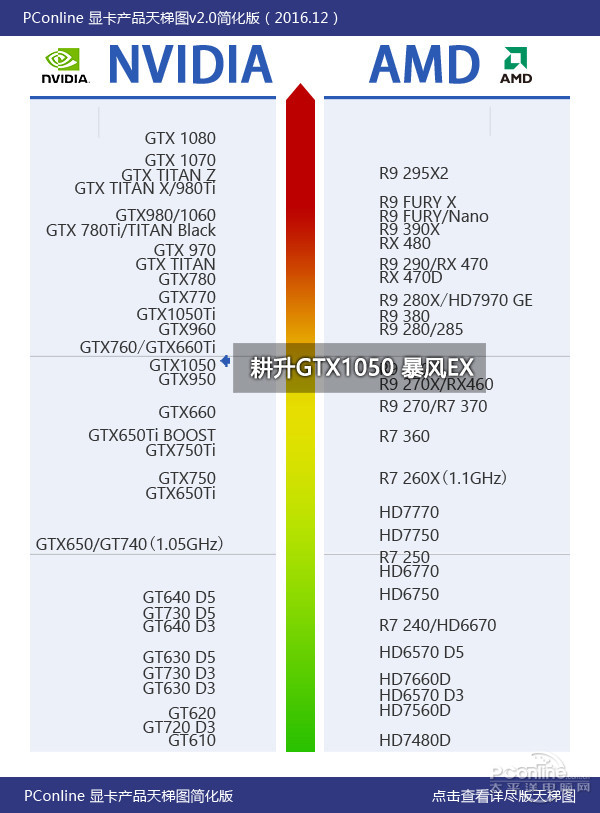

â— PConline graphics ladder diagram:
Ladder Diagram Description: Based on the higher frequency and thermal design, we placed the GTX 1050 Storm EX on the GTX 1050.
PConline evaluation room summary:
Performance: Gengsheng GTX1050 Storm EX 1557MHz high frequency, high frequency plus let this card in the same non-public GTX1050 performance can be a leader, play configuration slightly lower online games are basically no problem.
Look at the price: This piece of GTX 1050 storm GTX1050 price in the Tmall 949 yuan, high frequency + wind edge EX cooling + Gengsheng three-year warranty, the price is still relatively close to the people, after all, the frequency is lower 1050 are 899 Now.
In short, if you are preparing for the major I3+B150 online games, supplemented by stand-alone games, and with limited budget players, this card can really be considered.
1, 1557MHz high frequency, similar performance without flaws
2, 3 + 1 phase power supply, meet GP107, low power consumption
3, wind blade XE radiator, single copper heat pipe temperature control to force
4, three years warranty, worry-free after sales
NVIDIA GTX 1050Ti
Gengsheng GTX1050 Storm EX
AMD RX460
AMD Crimson Edition 16.11.3 WHQL
1, 1557MHz high frequency, similar performance without flaws
2, 3 + 1 phase power supply, meet GP107, low power consumption
3, wind blade XE radiator, single copper heat pipe temperature control to force
4, three years warranty, worry-free after sales
