Looks like my own rhythm is a slow one or two beats, when others sun RX470, I was in the sun IQ test card. . . Now that everyone has 1080Ti, I started tossing the RX470D. . . but. . If he takes a few beats at a slow pace, he will be happy. . .
Reasons to purchaseBefore the upgrade to the living room computer old Huang home 1050 (not 1050Ti) Basically, the living room computer to cope with the daily game is not a big problem, especially games that can be played on TV. . . However, after all, there are fewer opportunities to play games on TV. The main ones used are the desktops of the study (although the configuration is slightly worse than the living room computers). Before the video card was a colorful 650Ti, 1G memory version. . The mainframe that was installed at the end of 2013 is now 4 years old. In fact, it is not a big problem to cope with GTA5. After all, my monitor is just 1080. . The special effects are not the highest, and it's fun to play. . With more and more games being released, the 650Ti is a bit overwhelmed. With a limited budget, the overall upgrade platform is certainly not possible. Changing the graphics card is the most obvious and most economical option for short-term upgrades. . The dessert-grade graphics card is the target of this selection. Simply put, the choice is between 1060 and RX470, but the RX470 has a Chinese version of the RX470D. . Most of all, most of the designs of Dylan's R470D actually follow the design of the RX 470 4G X-Serial with 8pin power supply. . . By brushing BOIS, directly unlock the RX 470 4G X-Serial mode. . . How can this magical design not be irritating? . . However, in the near future, it may be AMD's vigorous push of the RX5 series. The RX470 Jingdong has been basically out of stock. Can it grab the luck? . No nonsense, out of the box. .
Jingdong speed is fast. . . The next day was served. . .
Open, packaging is very domineering from the front. . It is a fierce dragon. . .
The side is completely exposed. . . This domineering shell is actually only a cover. . .
Pull out the box. . . The first time I saw such an eco-friendly dessert-grade graphics card package. . . In addition, this HDMI is a ghost. .

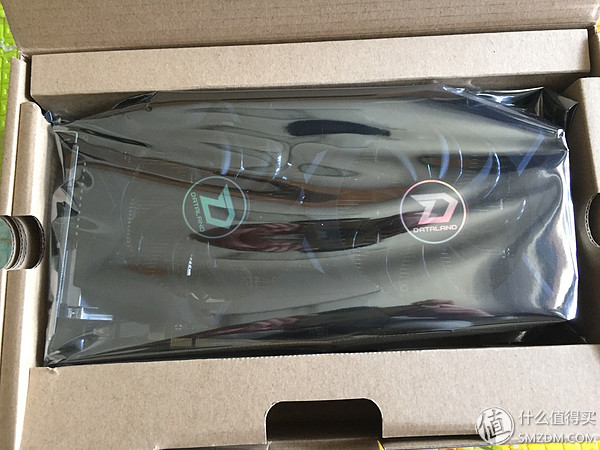

Open the box again. . . The graphics cards are lying inside. . Full of stuff. . . It can be seen that the label colors on the two cooling fans are still different. .

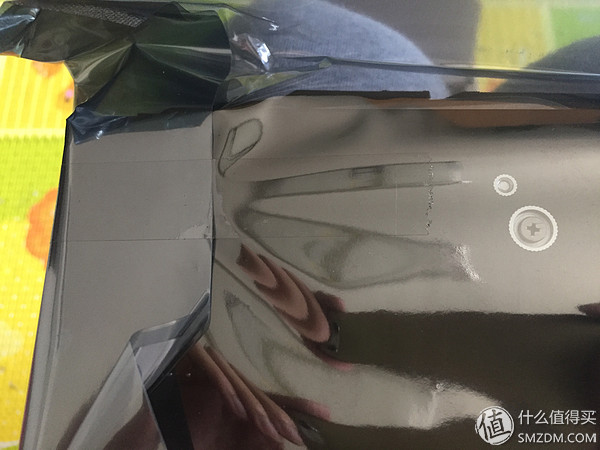

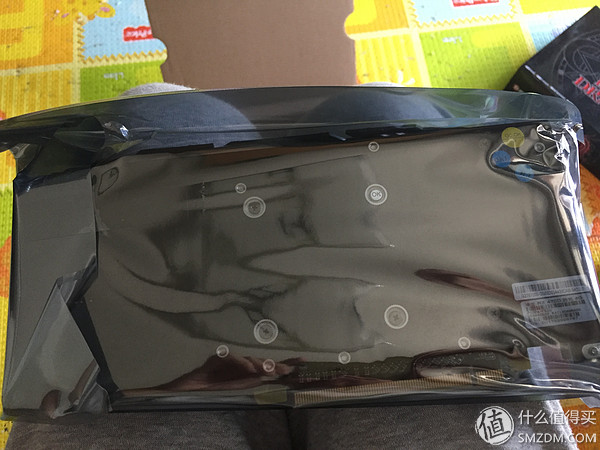

It is such an ordinary transparent plastic seal. . It is totally impossible to judge whether it has been demolished. . Hope that he is not a matchmaker. . .
Although packaging is a bit shabby, the actual card is still good. . There is a backplane. . it is necessary! !
Remove the video card, you can see there is something under the box. . .
There is a manual and a CD. .

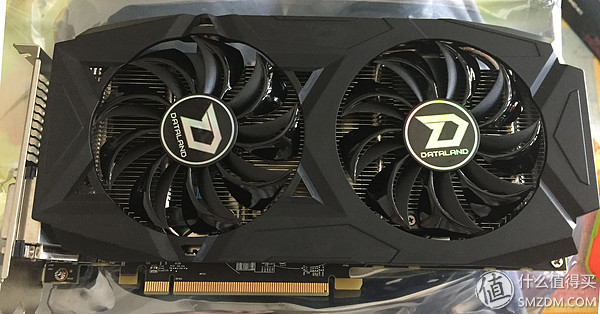

This is the RX470D body. . Pure black. . No fancy. . . light. . There is no. . . . There are also more than 1200 graphics cards. . Really save it. . . .

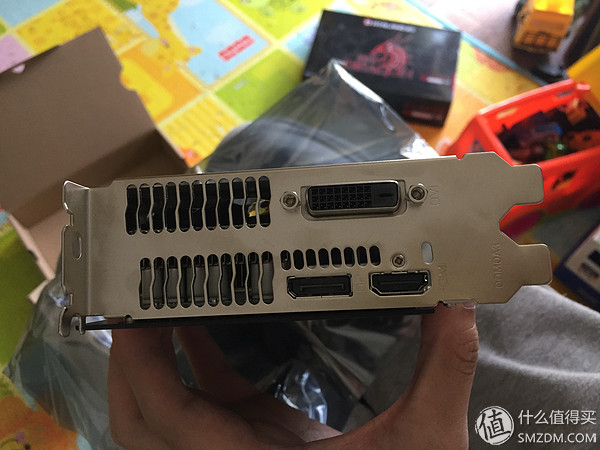

I/O interface, DVI, HDMI, DP one each. No dust plug. . . Generally enough. . Supports up to three screens. . How many people actually use three screens? .

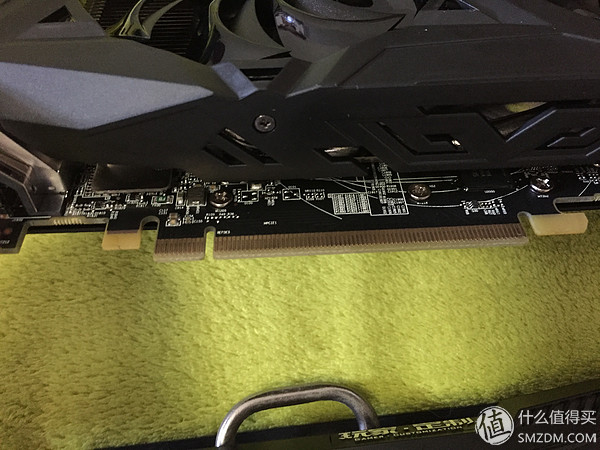

No gold finger protection cover. . Before you look at other people's clothes, there are only a few. . Why I did not. . Did I catch the plate?

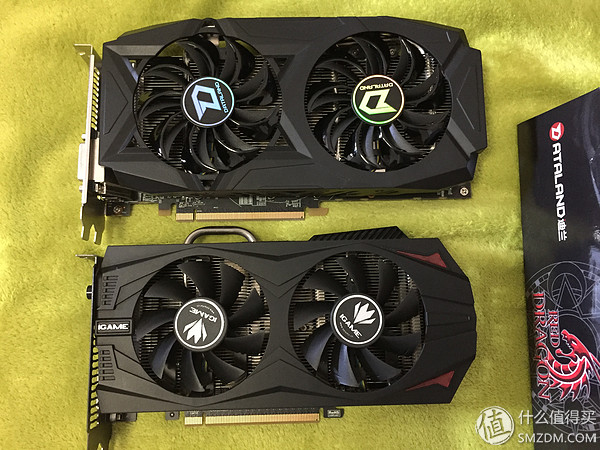

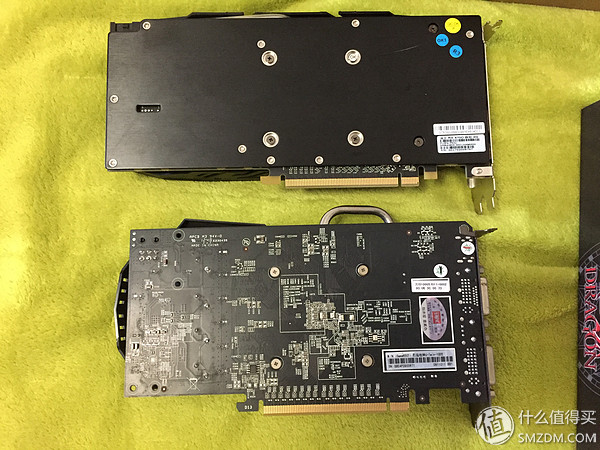

Compared with Colorful 650TI. . The following rainbow. . . Almost the size of Kazakhstan. . .
back. . . The RX470D has a metal back plate. . .

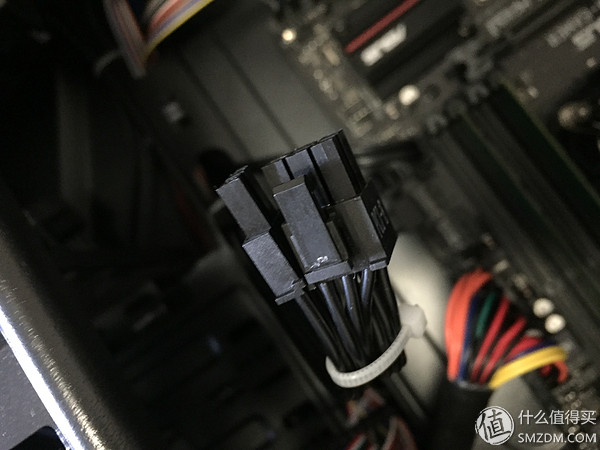

The power supply is originally 8pin. . Just before the graphics card is 6pin. . . Now I can finally plug in all of it. . .

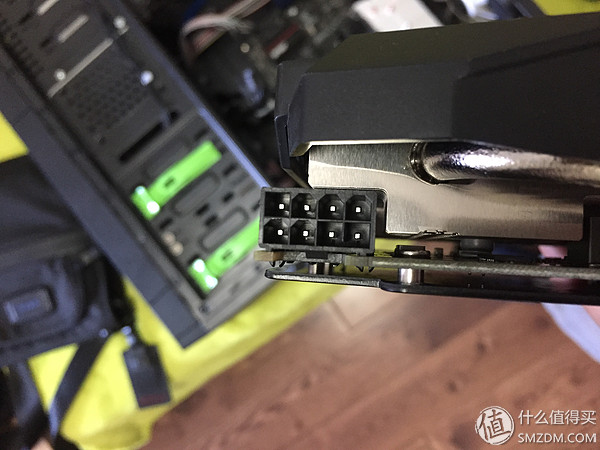

The Dylan RX470D is powered by 8pin. . . The strange thing is that the genuine Dilan RX470 is a 6-pin power supply, while the castrated version is 8pin. . Very wonderful. . . Before the big God dismantled the RX470D, the conclusion is that the design of this product is actually a shrinking version of the RX 470 4G X-Serial, rather than a shrinking version of the standard 470. . After brushing BISO, you can directly upgrade to RX 470 4G X-Serial

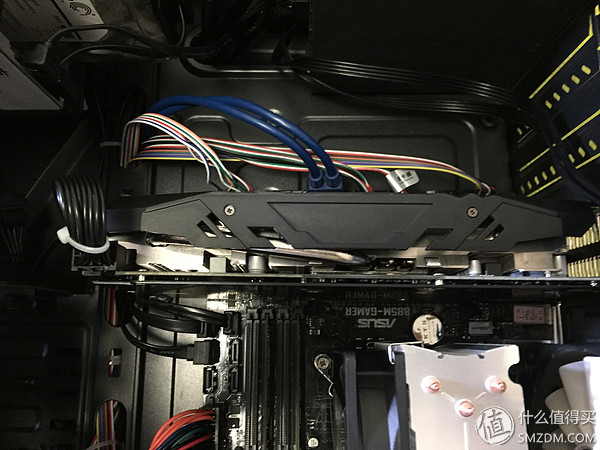

Plug into the host. . . What are the lines? . Please ignore it. .
The purpose of buying the Dylan RX470D is obviously to open the core to become the RX 470 4G X-Serial, so. . Open nuclear must be done. . . Now the RX470D is super easy to open and there is a ready-to-use one-button open-core tool available online. A few minutes to complete the nuclear work. .

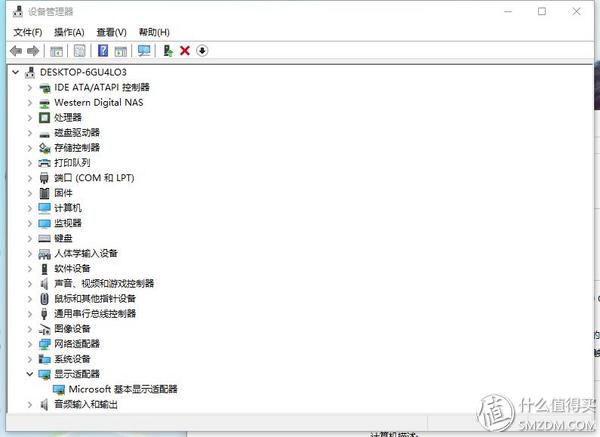

After the graphics card is replaced, the Universal Display Adapter starts to display in the device manager. It takes a while to recognize and automatically install the driver. . . Here we must particularly talk about, if it is N card to A card, please be sure to use graphics card driver uninstall tool, when loaded with N card, the driver unloaded, and then replace the video card. . Otherwise, after installing the A card, remove the N card driver, which is not clean. . .

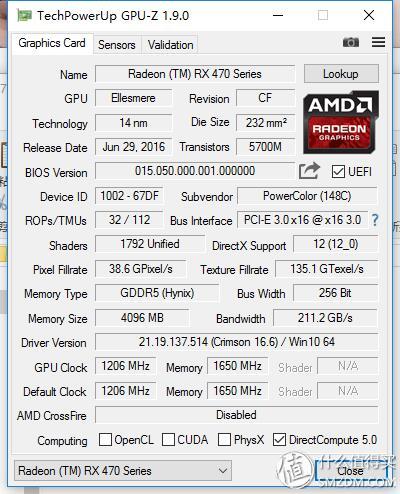

Use GPU-Z recognition. . Memory is Hynix, ROPs/TMUs is 32/112, Shaders is 1792, GPU frequency is 1206, memory frequency is 1650, standard 470D parameters. . .

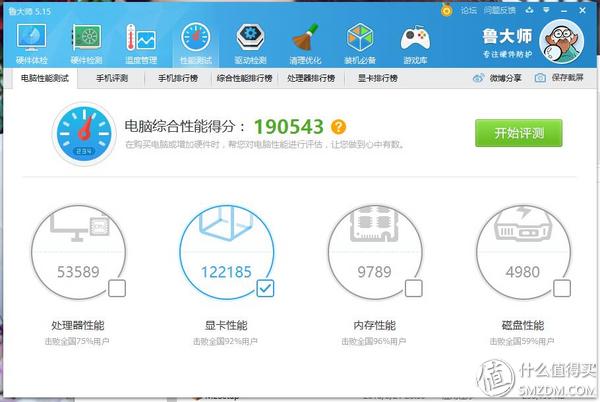

Entertainment Master score is more than 120,000. . .
Memory is Hynix, which is a one-click open nuclear tool that is downloaded from AMD. . .
Tool address link: http://pan.baidu.com/s/1slCX5Zv Password: a1jb, extract password shicunshigou

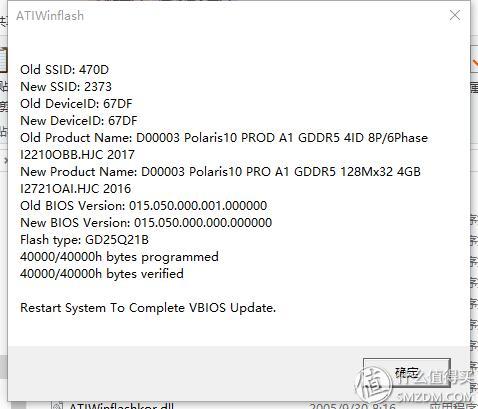

According to the tutorial inside the toolkit, select the Red Dev version of the BIOS, a key to open the core, which takes about 3 minutes. . . Then the following interface pops up. .
Then using GPU-Z detection, open the core results are as follows: ROPs/TMUs is 32/128, Shaders is a complete 2048, GPU frequency 1270, memory frequency 1750,

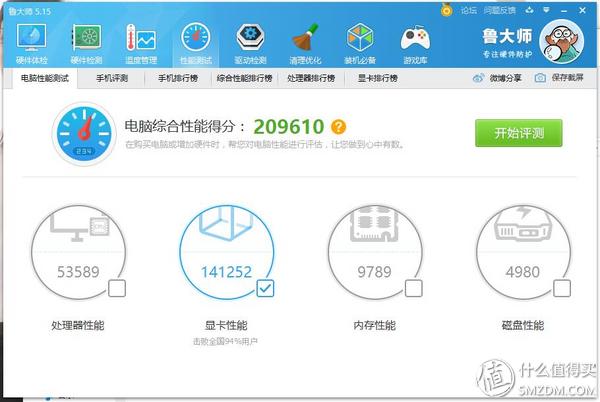

Entertainment master scored more than 140,000. . . 5 minutes. . . Become a full version of the 470 directly. . . Save 150 pieces. . .
The 470D of the major brands can all be perfectly opened, so it seems that the 470D is absolutely cost-effective. . . As for the temperature after the nuclear opening is too high. . . This one. . . In fact, the nuclear is not opened and the temperature is not low. . . But from my use case, I use it normally. . . It's okay, not so serious. . However, small chassis users are expected to be more headaches, and my normal mid-tower chassis indicates no pressure. . .
