LM4766 power amplifier application circuit diagram

The highest working power supply voltage --- 40W when the output power is ±30V8Ω

Typical working power supply voltage ±18V normal working voltage ±20-84V

Typical quiescent current 48mA

Harmonic distortion 0.06%

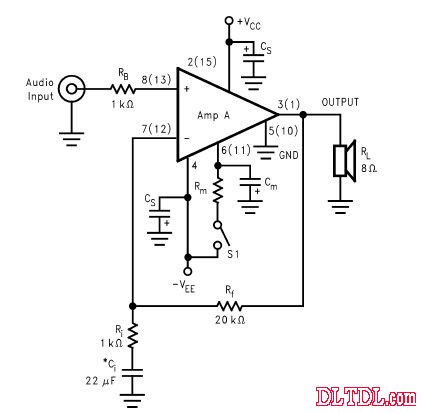

Figure 1 Typical mono connection

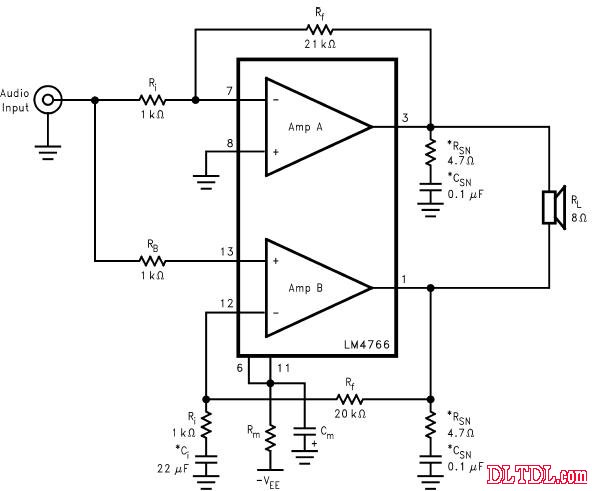

Figure 2 Typical LM4766 BTL connection

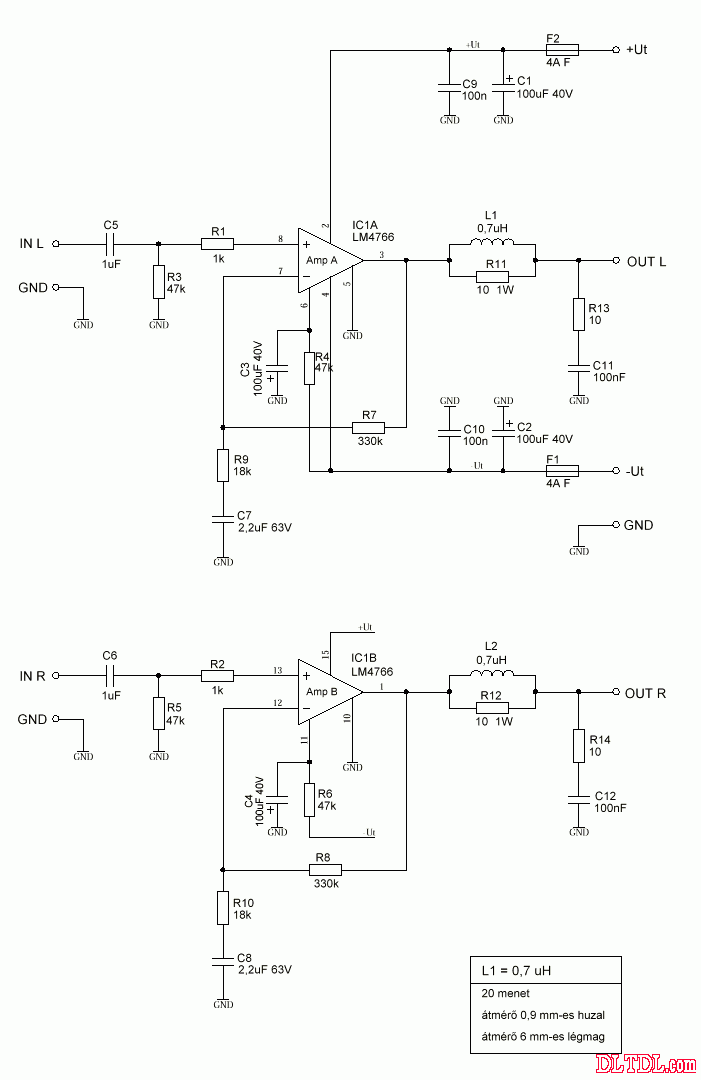

Figure 3 LM4766 dual channel

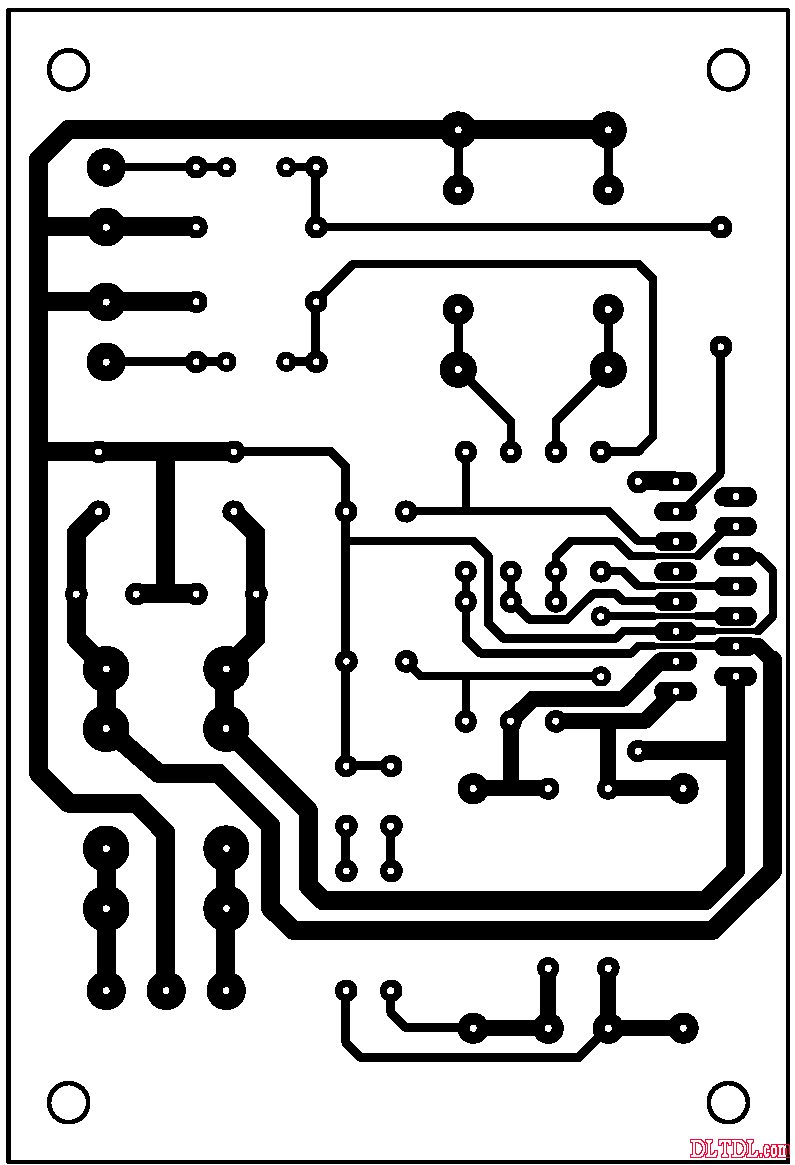

Figure 4 PCB board

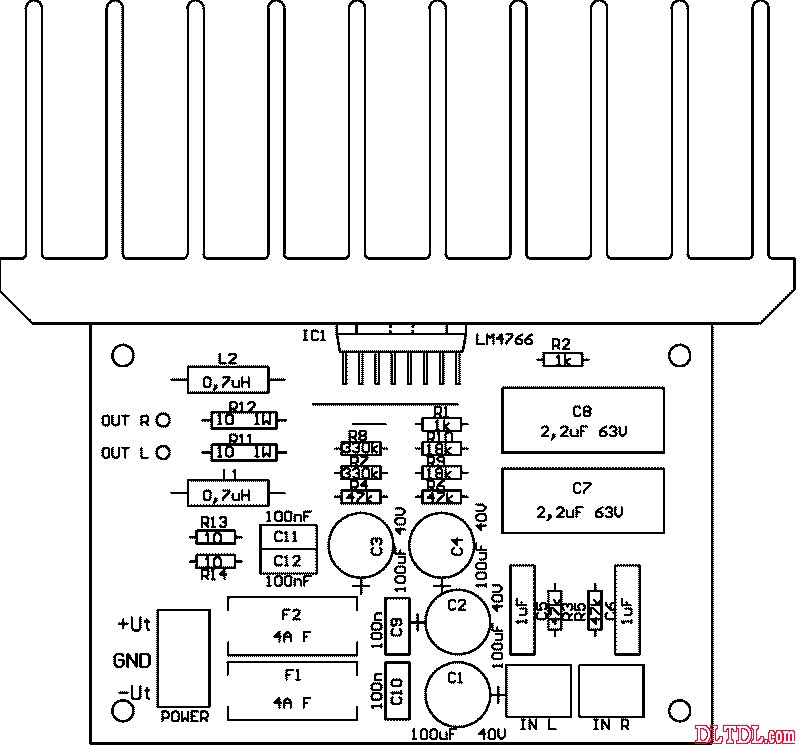

Figure 5 component layout
