To Aunt Zhang’s platform, soon the newcomer had the first piece of uncovered drying material and photographed the 599 mobile phone (which was really rich in wood). This hot chicken photographing level hopes to review it. . .
Lofree Luo Fei dot dot Bluetooth mechanical keyboard long battery life compatible MAC Bluetooth Edition - White 399 yuan Jingdong global purchase direct link Played a mechanical keyboard for a short period of time, a chance to come from a friend PY to this sprouting Lofree Lophi dot double-mode keyboard, take everyone to open a box, easily removed it, do not remove Not Shuhu ah.
Appearance Gallery
Shunfeng express parcels running from friends for miles
With the excitement, I got this keyboard and quickly brought it upstairs. Tearing the protective bag and protective film, leaking out the white box, thanking God for the box for no obvious bumps. No, thanks.

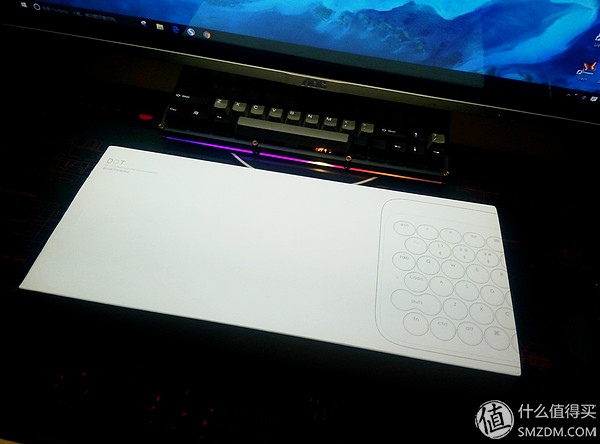

Whole body white simple wind box

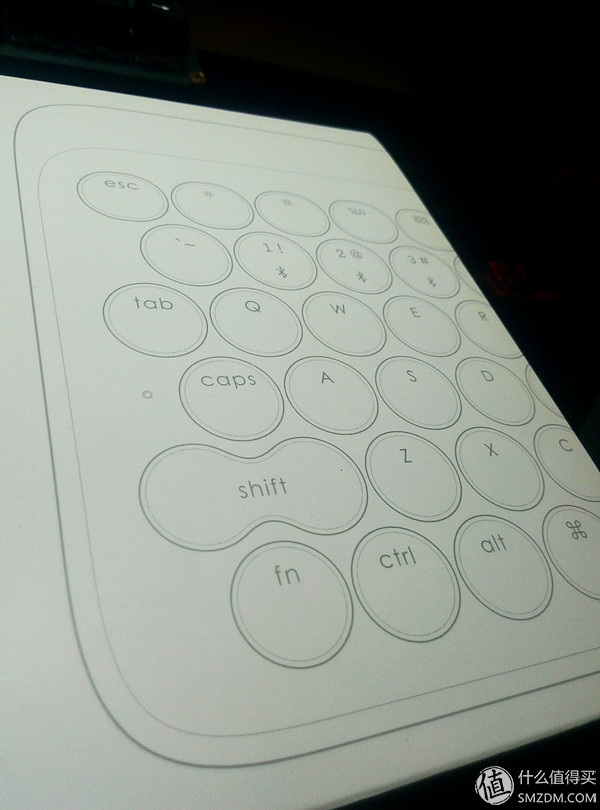

The right side of the box is a simplified drawing of the left half of the dot

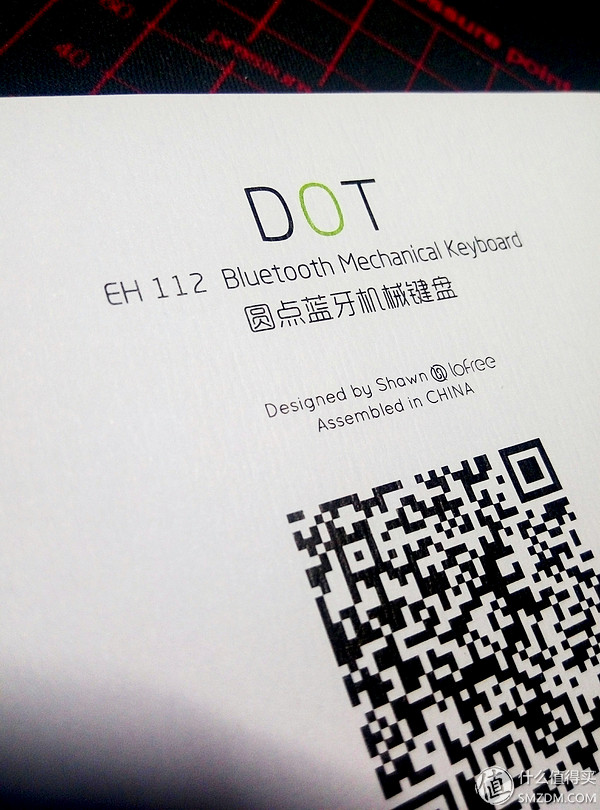

The upper left corner of the package is the keyboard model in English and Chinese description

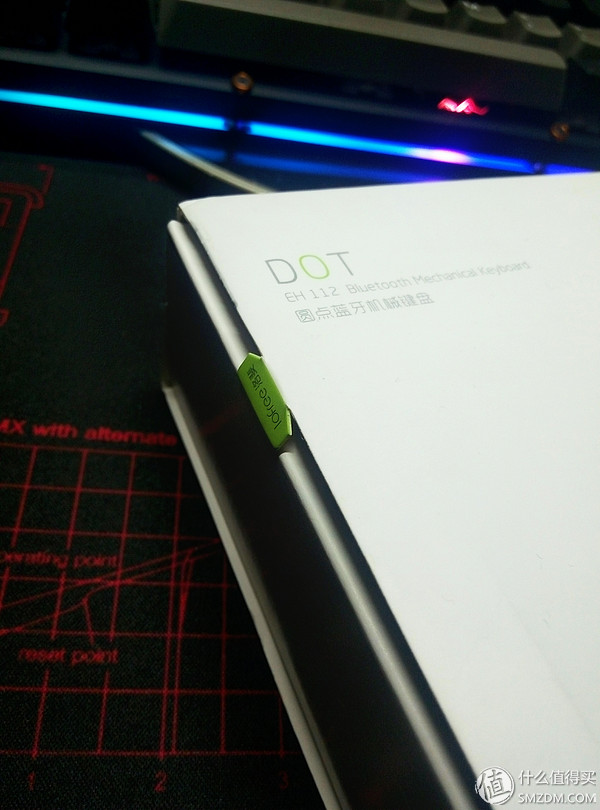

The whole package adopts a pull-out design, and a small green label is specially designed on the left side so that the user can squeeze it out of the internal packaging box. It is very fresh and green, and it is very easy to leave a good impression.

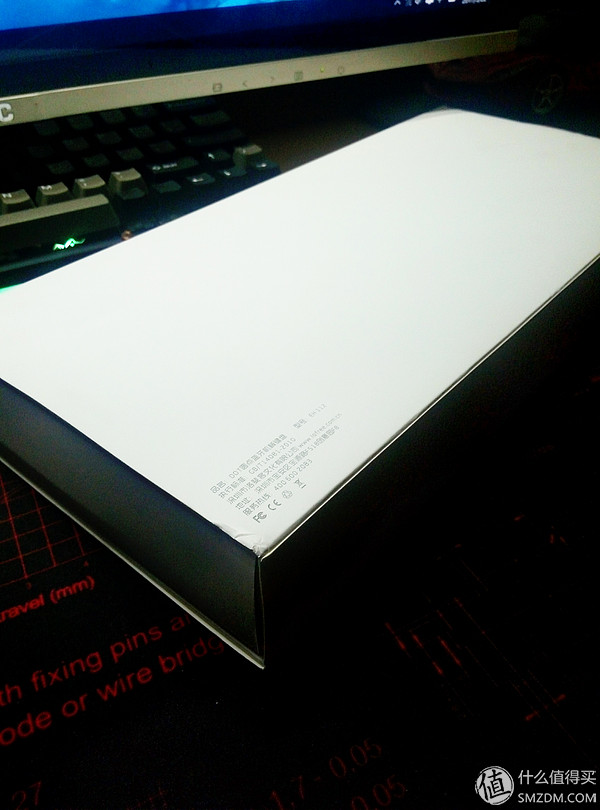

Back label and details
Side of the home LOGO
Now pull out the box inside, the same full body white, without any mark.

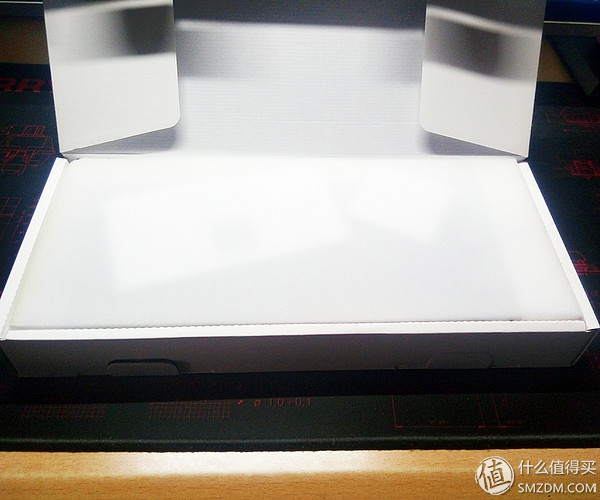

Open to come into view is a white foam sponge, it should play a buffer role.

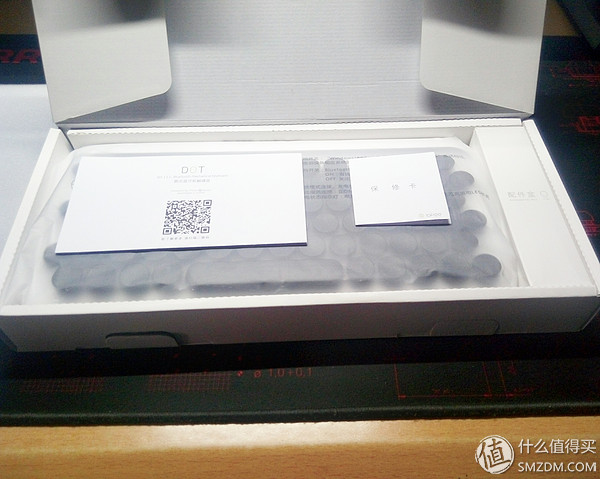

Remove the sponge is the instructions and warranty card, the following is a translucent CPE matte bag wrapped keyboard body, the right is the accessories box, also designed as a simple white wind box.

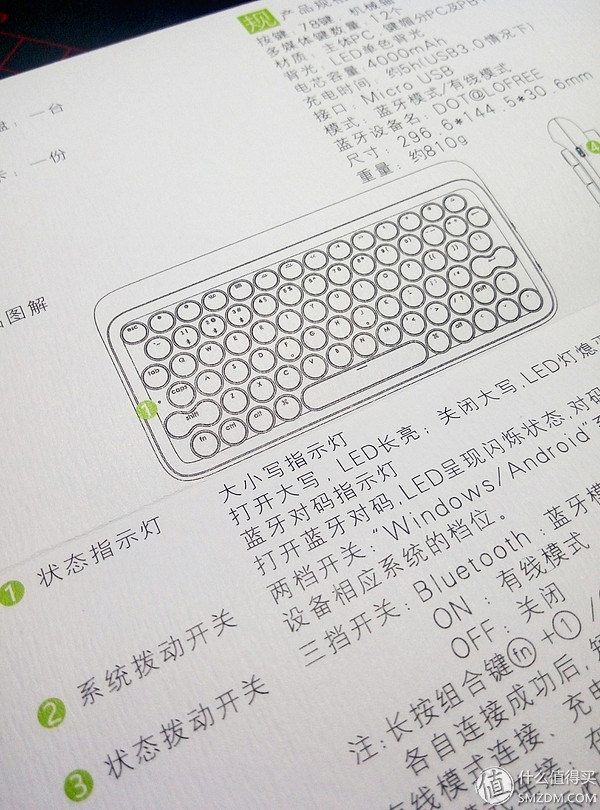

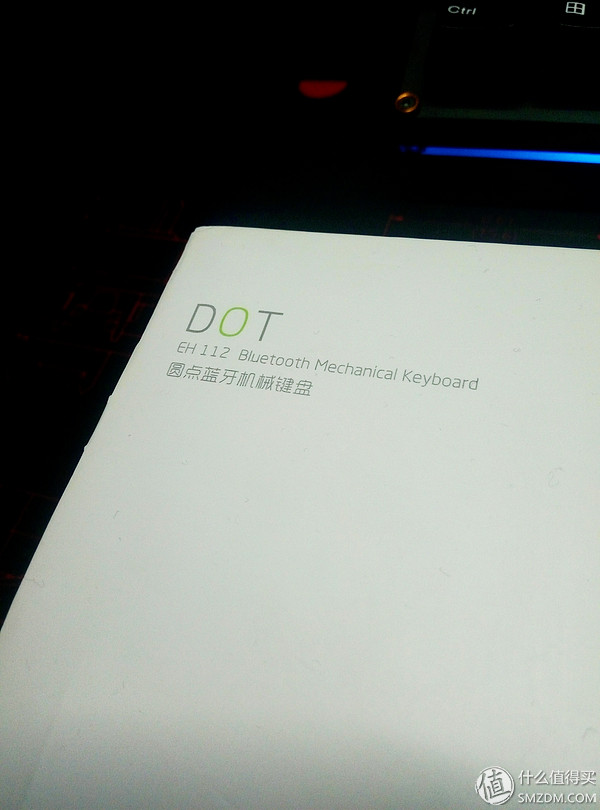

The manual and warranty card are printed on woodgrain paper. The hand feel is very good. The function of the manual is very comprehensive.

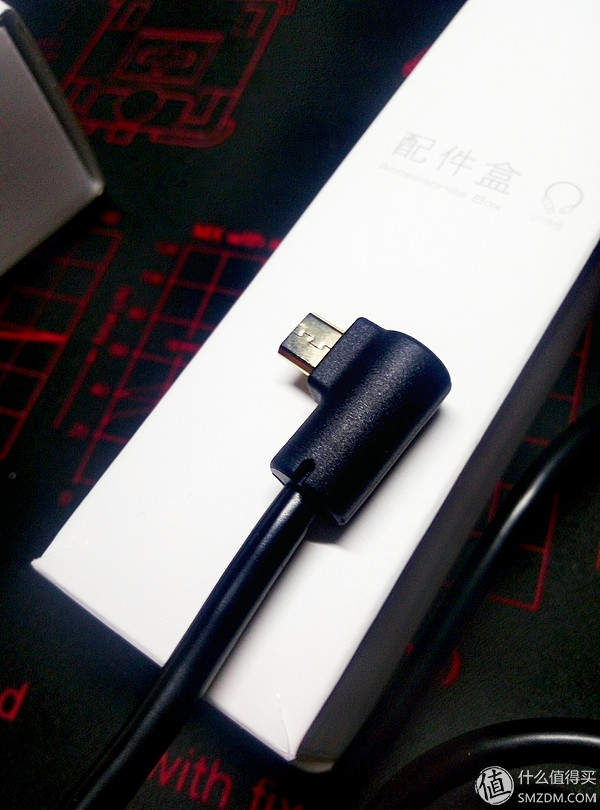

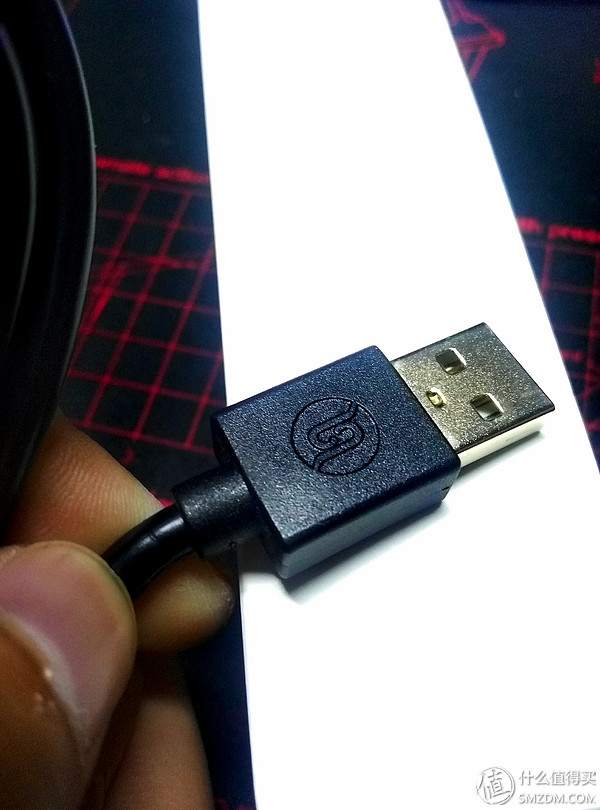

Accessories box is a MicroUSB data cable, workmanship is very good, wire is thick, USB head gold plated, also with anti-shielding magnetic ring, MicroUSB port position using 90 ° design, USB A port is also printed with its own LOGO.
啰嗦 这么 这么 这么 这么 这么 这么 这么 这么 这么 这么 这么 这么 这么 这么 这么 这么 这么 这么 这么 这么 这么 这么 这么 这么 这么 这么 这么 这么.

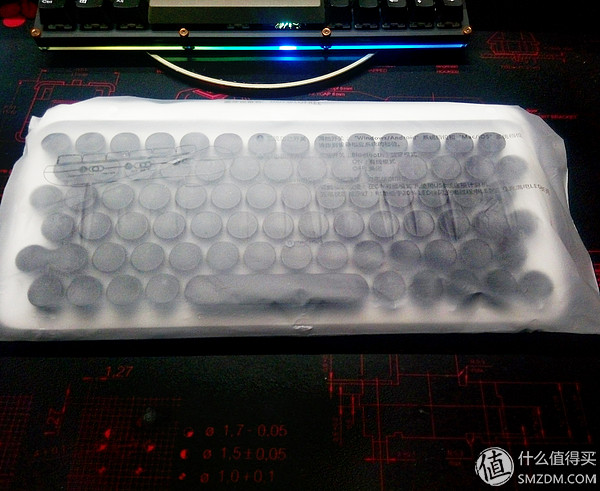

Instructions for use of the switch section are also printed on the CPE frosted bag

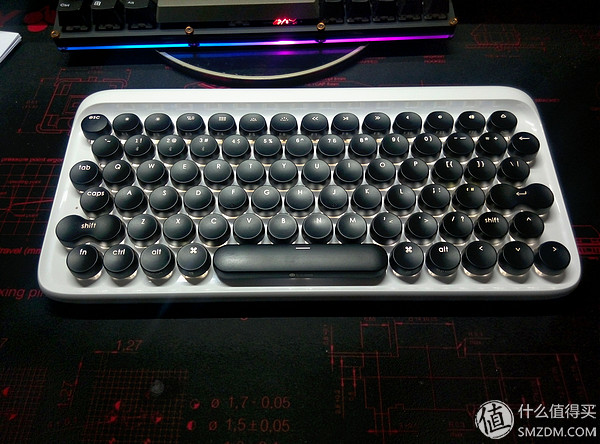

Keyboard body Sprouted keyboard body

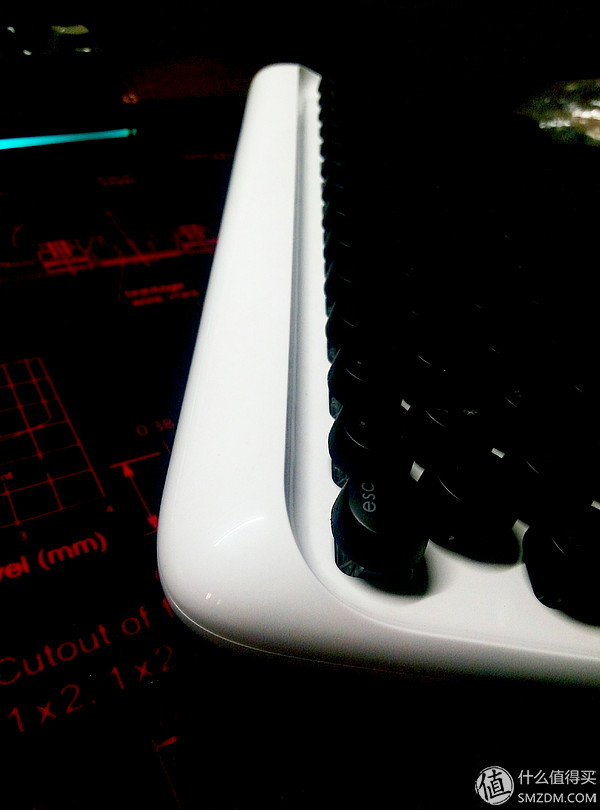

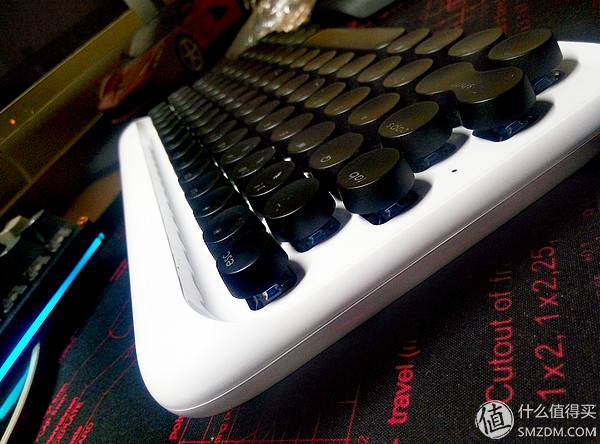

side
side

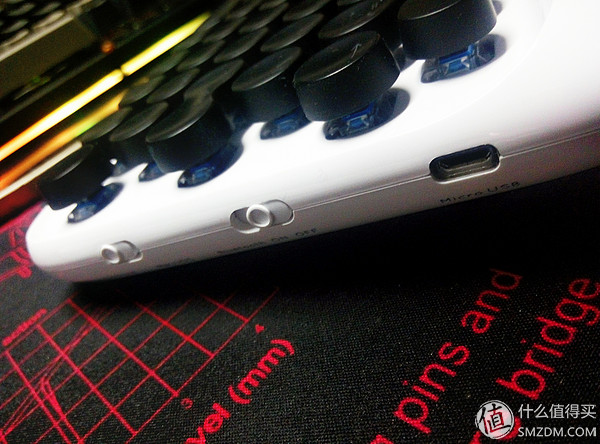

Switch and USB port location
Switch and USB port location

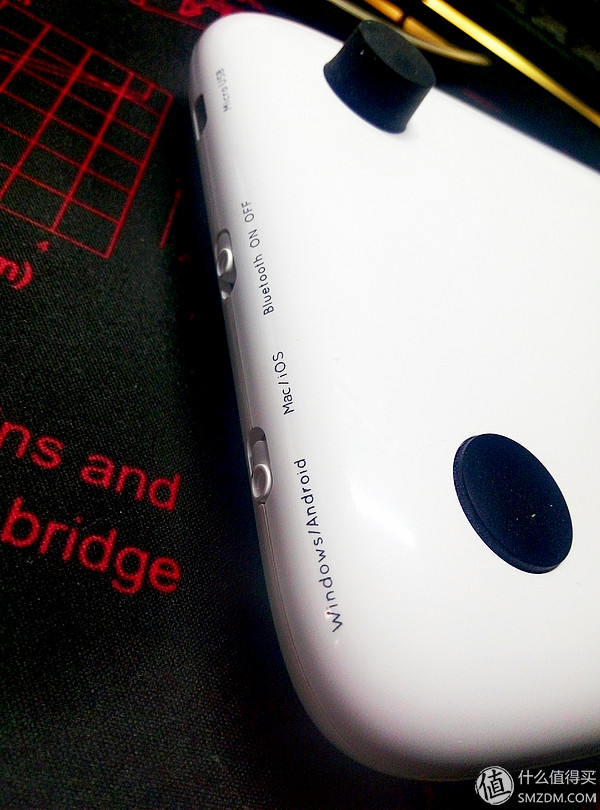

Looking at the mark on the switch on the lower right side, this keyboard supports the currently used Mac/iOS and Windows/Android devices, and switches and switches the special key positions in different use environments, mainly Win and Command. The switch in the middle is a three-level adjustment for switching between different modes, ie, Bluetooth mode, wired mode, and power-off, and also supports shutdown charging. The upper part is Micro USB socket.

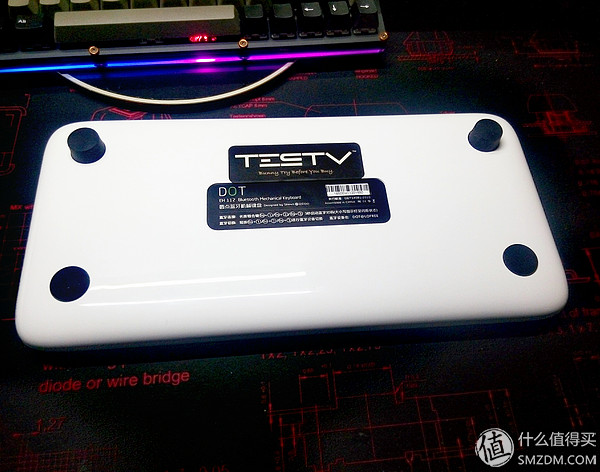

back

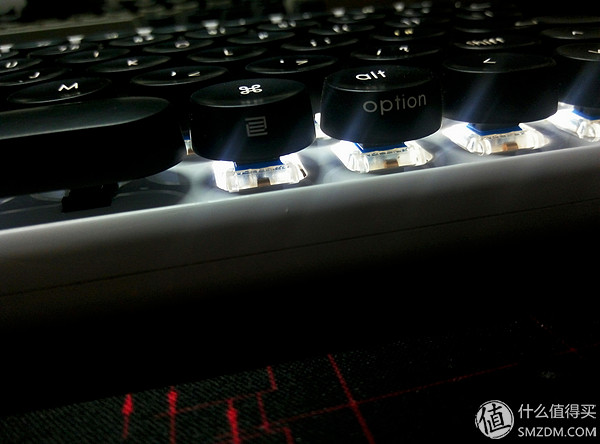

Lights effect
Lights effect

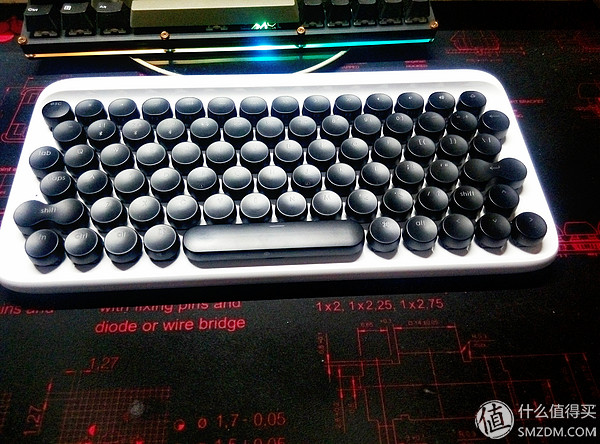

This keyboard uses a non-traditional 78-key design, key layout is also relatively niche, from the arrow keys can also see that the keys are relatively rare

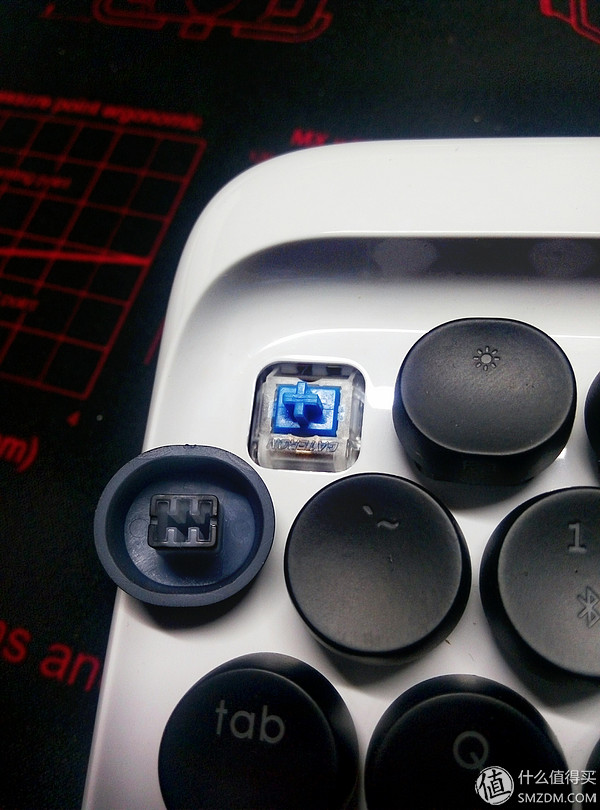

The shaft uses the Gardacron blue shaft, which is often referred to as the G-Cyan. This kind of keyboard with a somewhat typewriter feels that the green shaft is undoubtedly the most suitable.

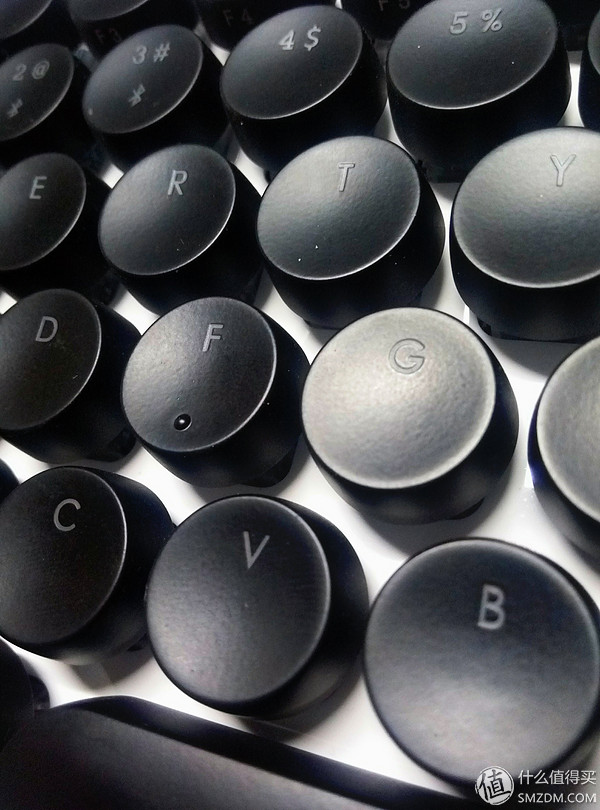

The keycap is made of ABS material, covered with film, and light-transmitting. It should be the same key technology as Razer. It will inevitably make oil when used for a long time. The surface of the keycap is slightly corrugated. The font of the keycap is small, and it is closed. It is still quite good looking. The keycap chrysanthemums are not the same as the ordinary cross chrysanthemums, just like the chrysanthemums of a punk stylewriter key that was previously purchased. In addition, the odd Shift is the left Shift and Enter keys. The two-axis design does not use balance bars or satellites. Axis, which also leads to a lot of left Shift and carriage return pressure than the ordinary key position, so the wonderful key position to change the key cap basically did not count, the space is used in the common steel satellite axis design, space length is also Very curious. The light uses a white patch LED and does not use a 3mm edgeless LED.

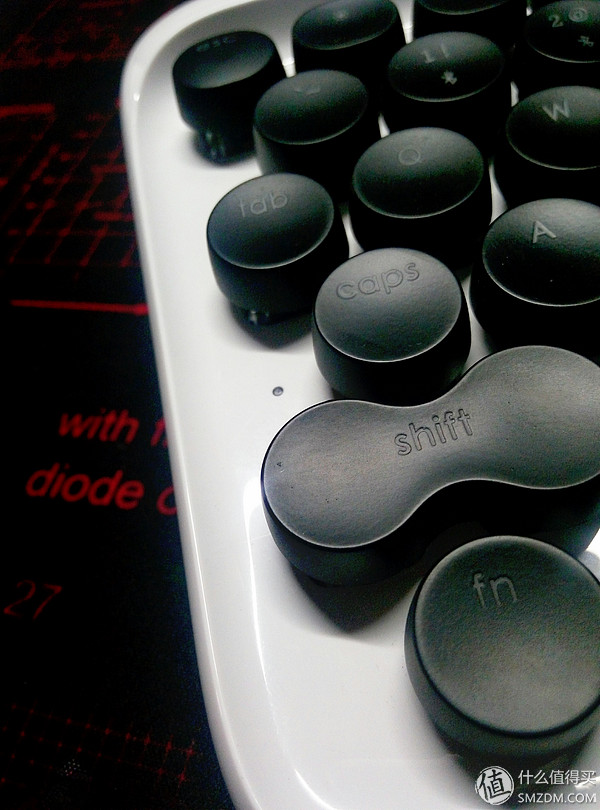

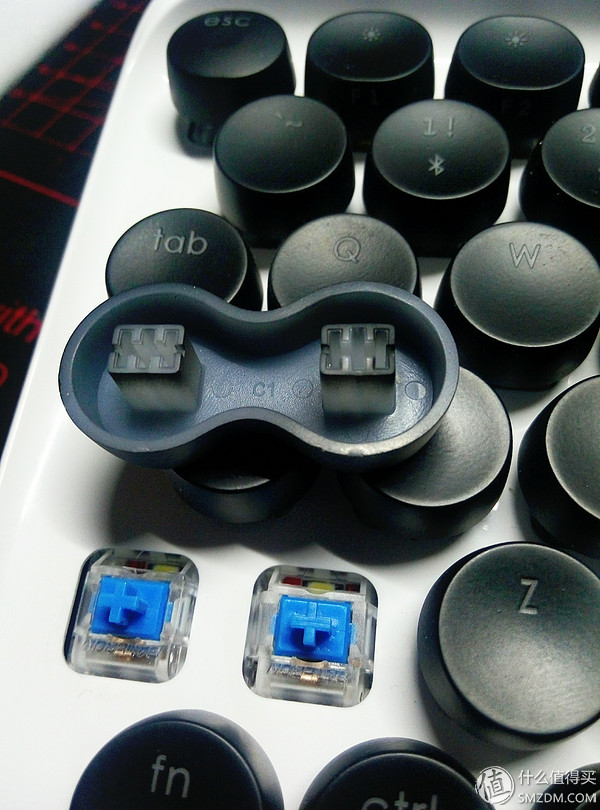

Two-axis Shift

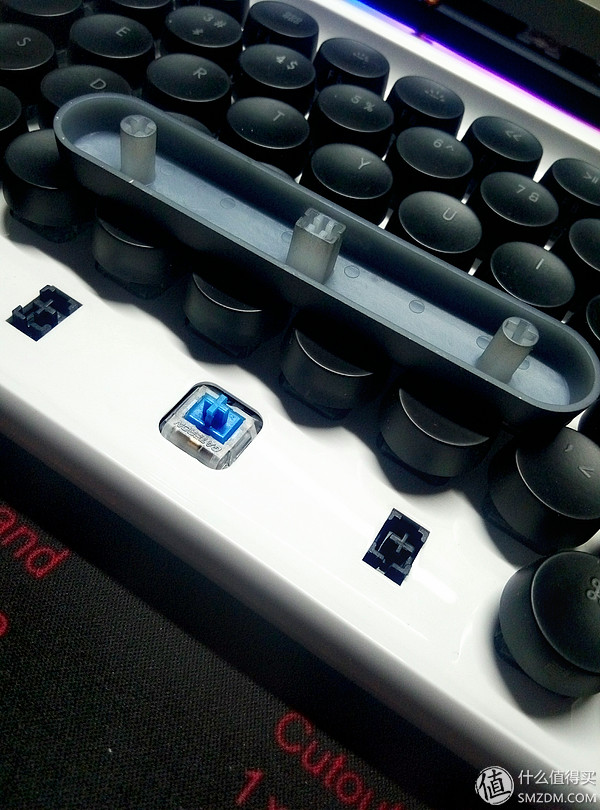

Satellite axis space

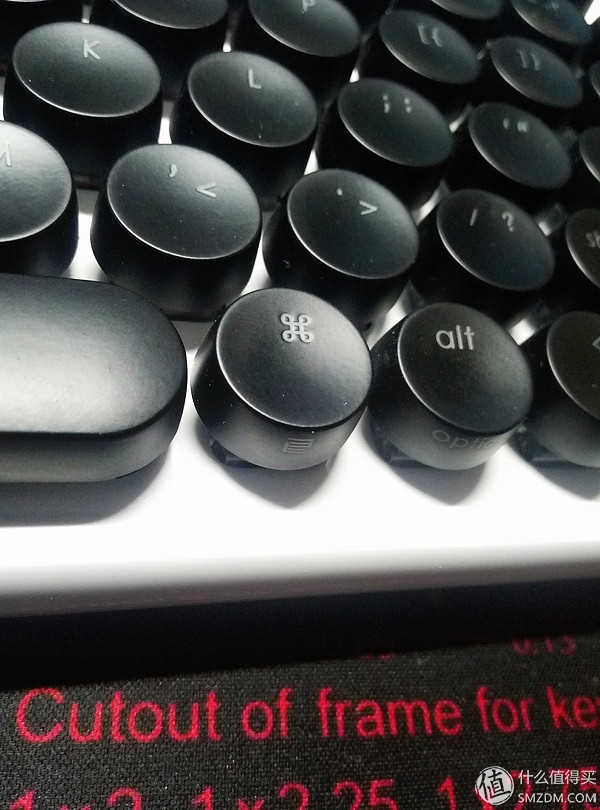

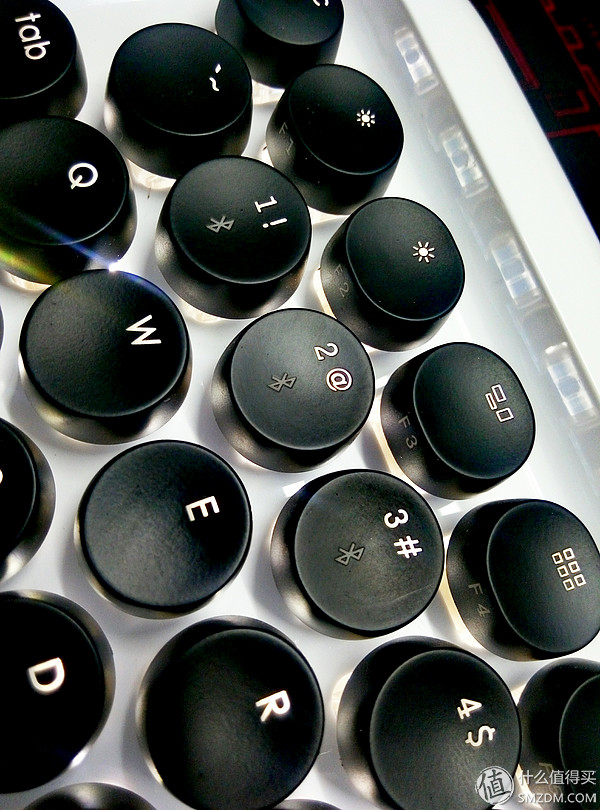

Part of the special switch button function side carved to the keycap.
Blind spot design
Caps light, also Bluetooth pairing indicator
First of all, the appearance of a matter of opinion, and certainly some people like some people do not like, for example, I do not like it very much, so the next step is to remove it and then redraw a shell design, then the key is not conventional, you need Adapted for a period of time, the key cap is also very curious, the first few times more easy to use touch, the key cap is not a high drop, typing feeling is not so good, but also a problem is that the keyboard shell cavity will emit a very The dreary sound, coupled with the squeaking of the blue shaft, caused the keyboard to be noisy when used. Said the shortcomings and then talk about the advantages, first of all the keyboard work well, the shell paint is very glossy, feel very comfortable, or Bluetooth dual mode, which is also more attractive place, followed by support for third gear adjustment of the white backlight , Battery 4000mah, can support long-term use without charging, Bluetooth mode supports switching between three devices.
Without dismantling Shu Hu ah, we must demolition, the process will not be described in more detail.

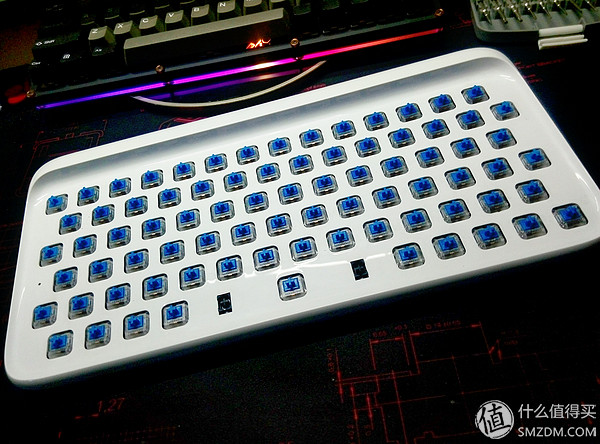

Remove the keycap

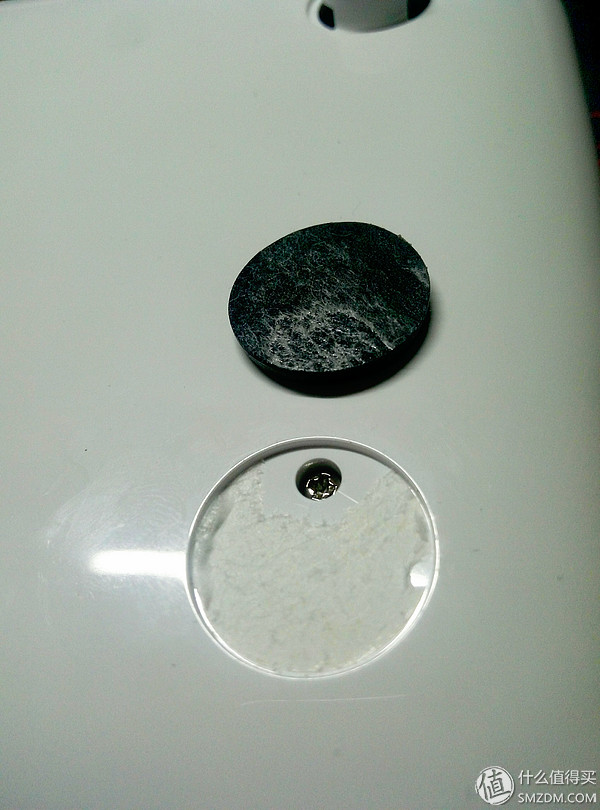

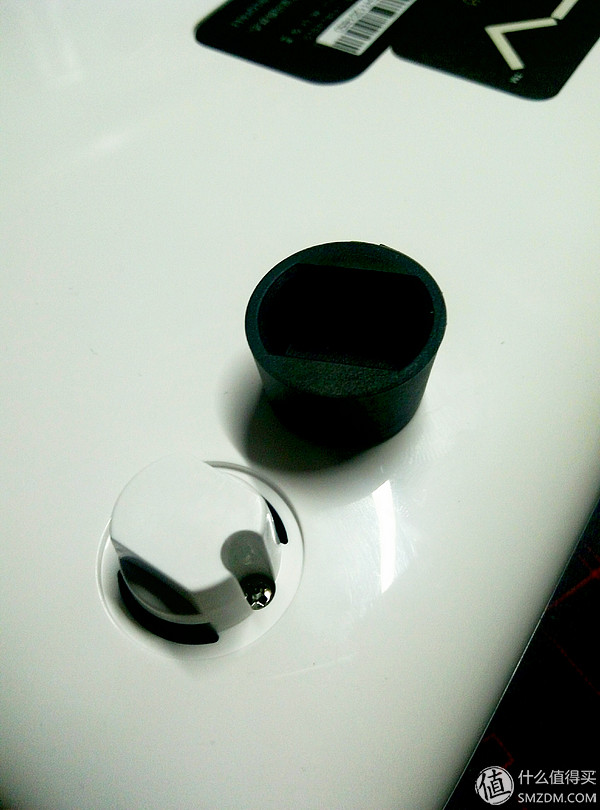

Remove foot screws
Dismantling pad screws

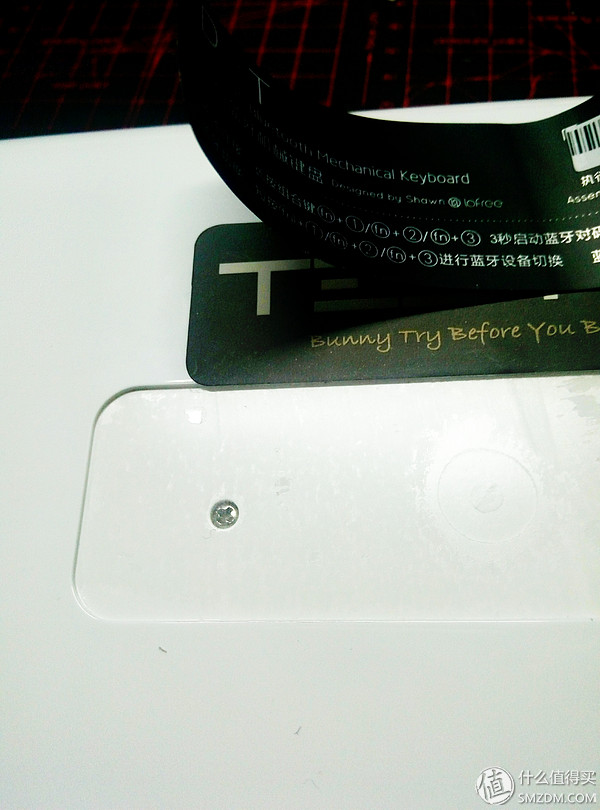

Remove the screws under the sticker

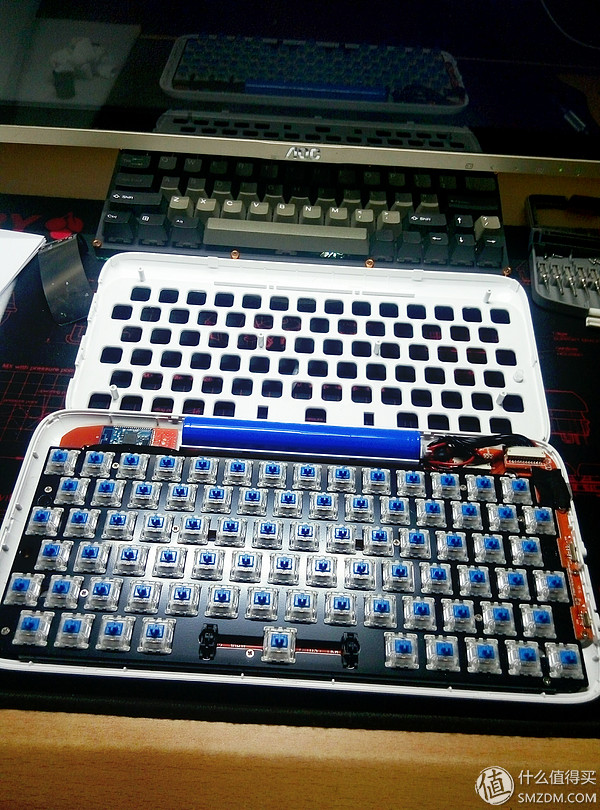

Remove the cover

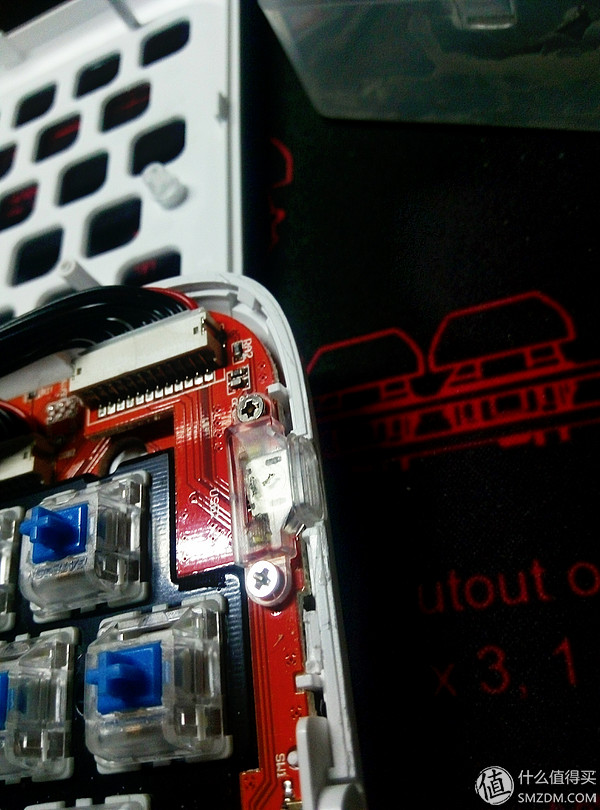

Framed MicroUSB Interface

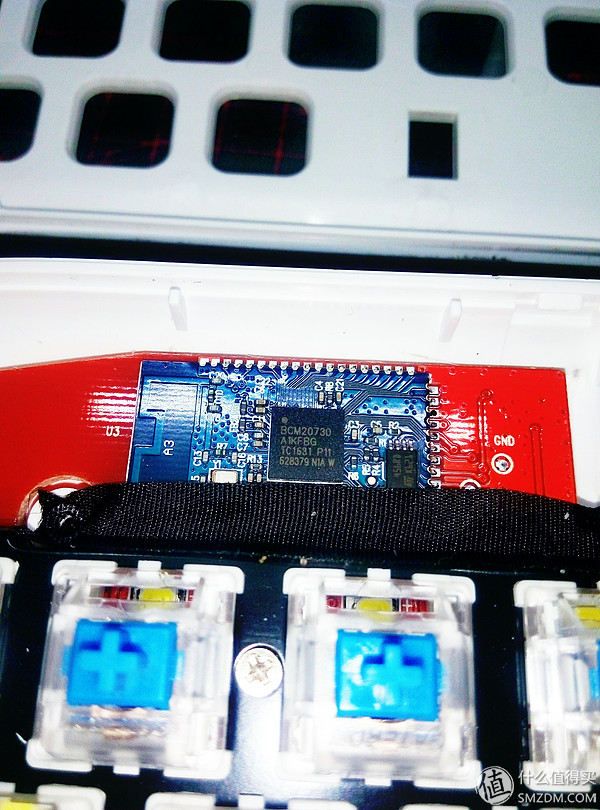

The same BCM20730 Bluetooth master as dual-mode Filco

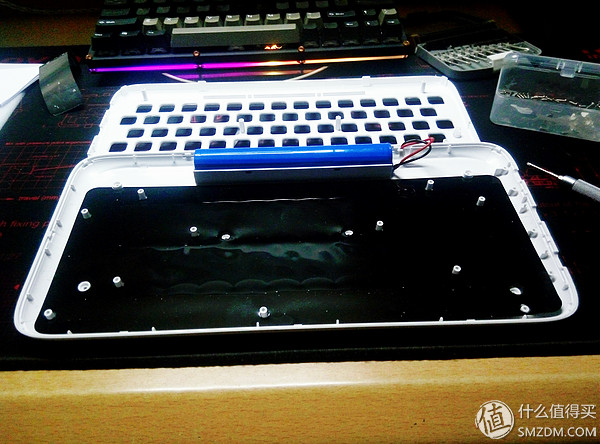

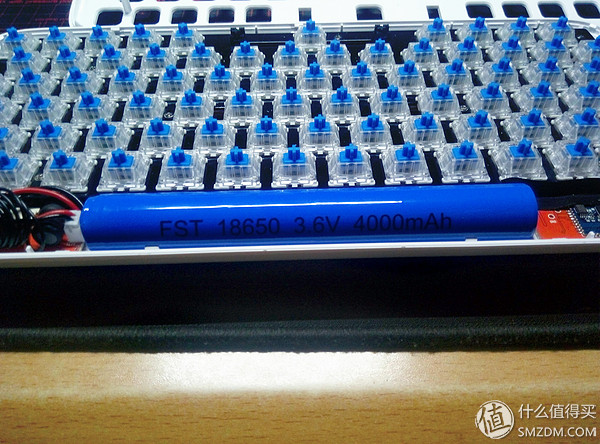

Two 18650 batteries, 4000
Split PCB design, connected by cables

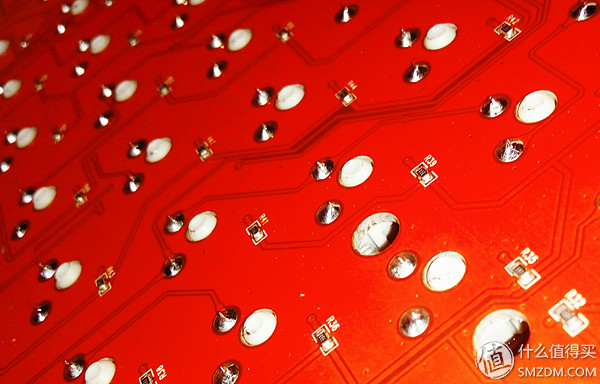

Full and shiny solder joints, no residual solder, should be washed plate

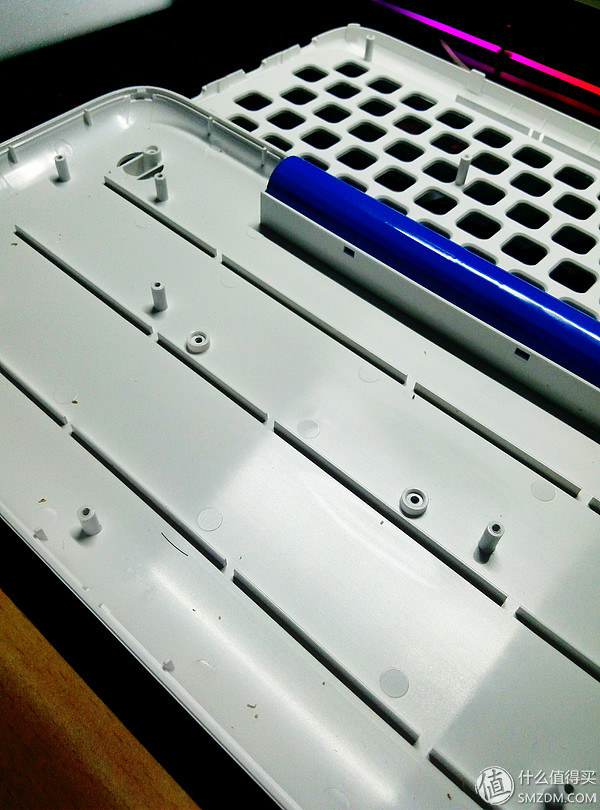

Bottom shell
Bottom shell stiffener
In general, this Lofei Lofree dot Dot dual-mode Bluetooth keyboard can be seen from the packaging design, product workmanship manufacturers devoted a lot of effort, the product is still very good, but due to the more exotic shape, wonderful Keys, strange keycap shape, destined to only be a niche products, Bluetooth dual-mode, with backlight, powerful battery life also add a lot to this product.
