[PConline evaluation] Recently, more and more manufacturers and brands have started cross-border products, such as Gigabyte, MSI has a radiator, Biostar has a mechanical keyboard ... today, Ning America and peripherals The brand, which is also a belief level brand, cooperated with Ray Snake to create a host that was very styling and very forcible. It was named MARS, and quickly took everyone to see it.
Ning American Stars MARS Razer Beliefs PC Reference Price: Loading... Image Reviews Quotation Parameters Overview
â—Appearance: non-cuboidal shape

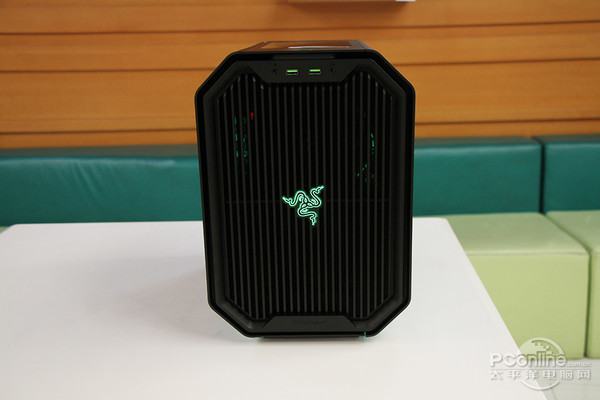

Chassis front
The front of the chassis is also simple, in the middle there is only a Razer LOGO, presumably understand the peripheral players are no stranger to this LOGO, the above is the two green USB 3.0 interface and audio headset hole.

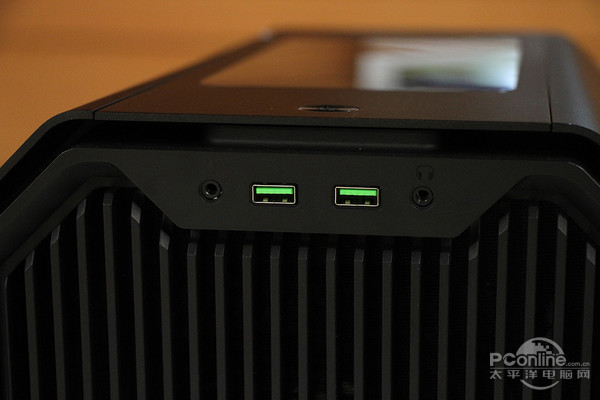

Front panel interface

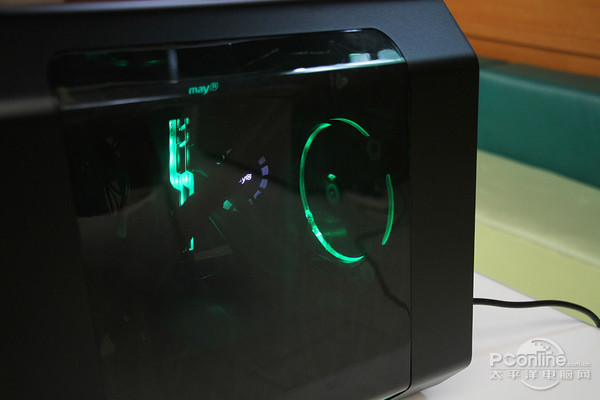

Diagonal cube design

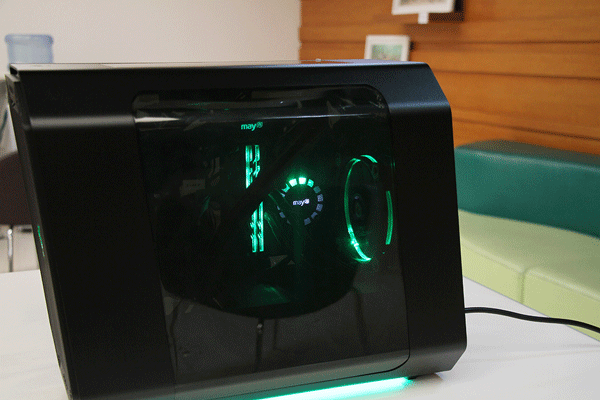

Chassis is a diagonal cube design with a side-to-face panel. After the chassis is lit, you can see the internal lighting effects, and then give them a few dark renderings.

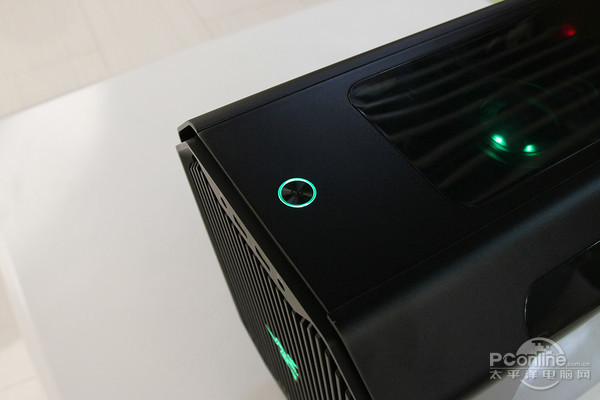

Top of the chassis
A power button is designed on the top front and the power button has a green LED light.
Chassis is at the top
There is also a translucent design above, you can see the graphics card cooling radiator light effect, turbo-type modeling + faint green light, very scientific and technical sense, there are also models, the belief really arrived.

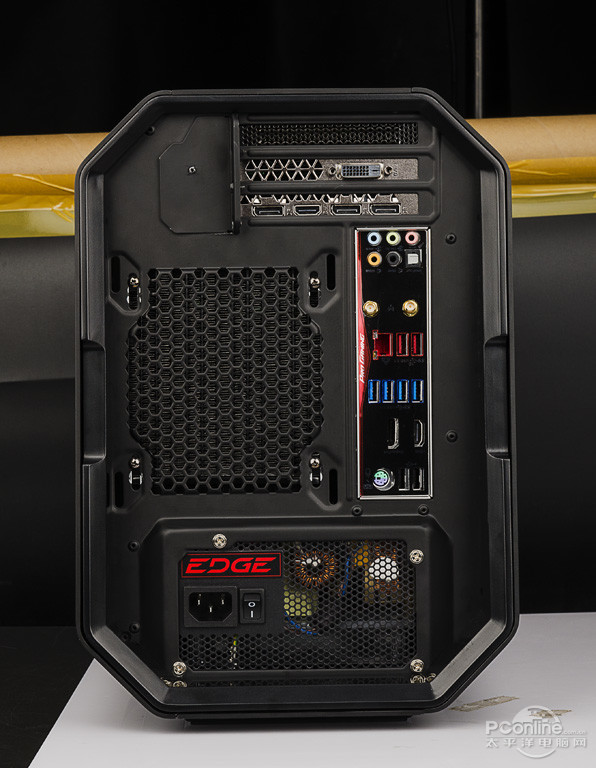

Chassis back
From here, it is clear that the interior of the chassis has been designed for power inversion, and the graphics interface is above the chassis. The output interface is currently the mainstream of the five, the Power Supply is Antec's EDGE series module power supply, the motherboard from the I/O logo can also be seen as ASUS PRO GAMING series.

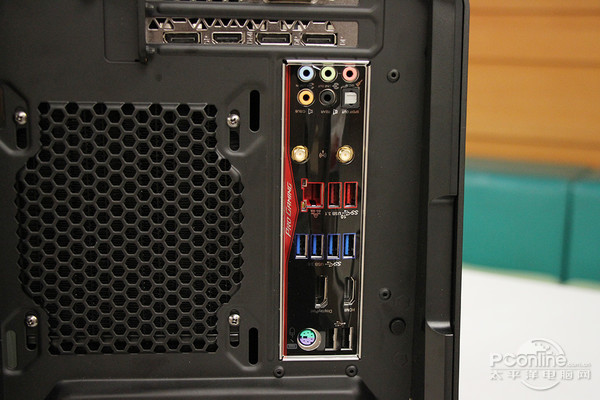

I/O interface
The I/O interface is also very forward-looking with two USB 3.1 interfaces, with a maximum speed of 10Gb/s, which will be very useful after the popularity of USB 3.1 devices in the future. Another bright spot is the WIFI antenna interface, the other is the interface that ordinary hosts should have, not to elaborate.
Light control small button
The I/O interface has a button to control the light bar at the bottom of the chassis, which can switch the light effect according to your own mood.
The appearance of the chassis looks almost the same, Razer as a top light factory, the control of the lighting effect is not covered.
The host quoted a price of 11,111 yuan in Ning America’s flagship store. The price of the unit was broken. How would the configuration be? Or is it that the price is added to the lamp factory halo? We quickly dismantled it.
GALAXY GTX1070 ashes custom water cooled version
Power Antec EDGE 500W-G Full Module Power + Green Custom Line Chassis Antec CUBE Razer Custom Edition Chassis Radiator 120mm (CPU) + 240mm (Graphic Card) Dual Water Circuit Cooling Price Ning America Degree Price 11111 yuanâ— Dismantling: GTX1070+CPU/graphics card dual water cooling!
Disassemble the side plate

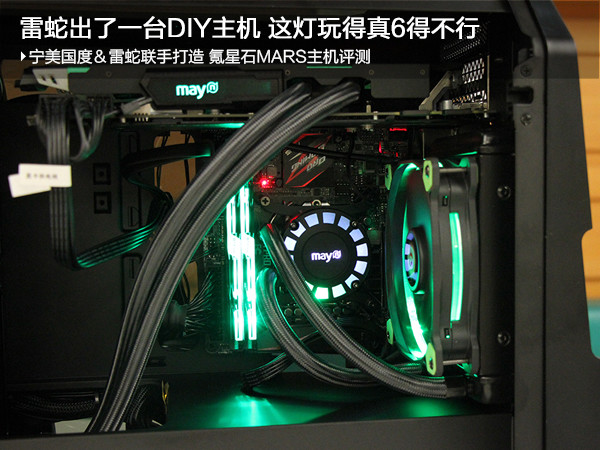

Inside the chassis
With less side plate obstructions, it was discovered that the internal light efficiency turned out to be so bright. It can be seen that the CPU and the graphics card have adopted integrated water cooling, the CPU is 120 cold row, the graphics card is 240 cold row, the first feeling of heat dissipation effect is the lever drop. But also think that the wire is a bit messy, if the water-cooled line can be bypassed from the edge of the inside will look good at a grade.

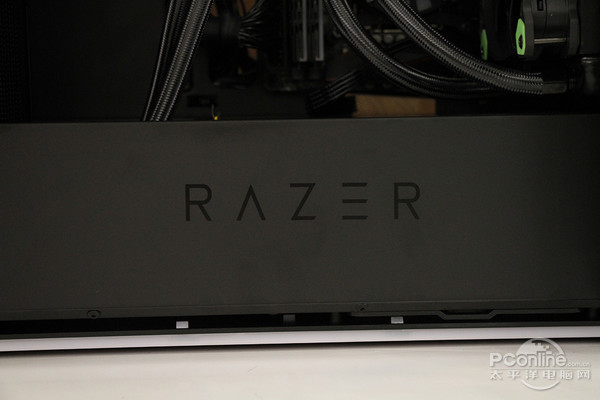

Thunder snake LOGO below

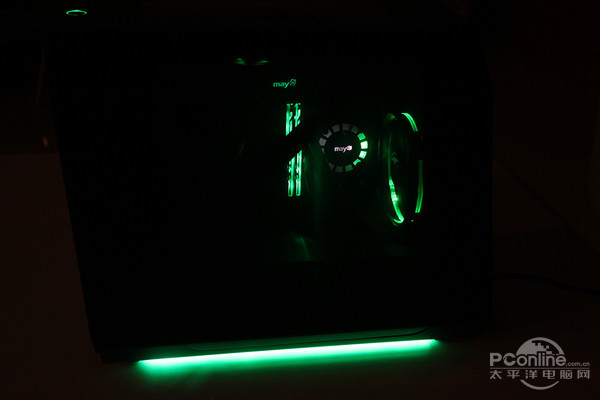

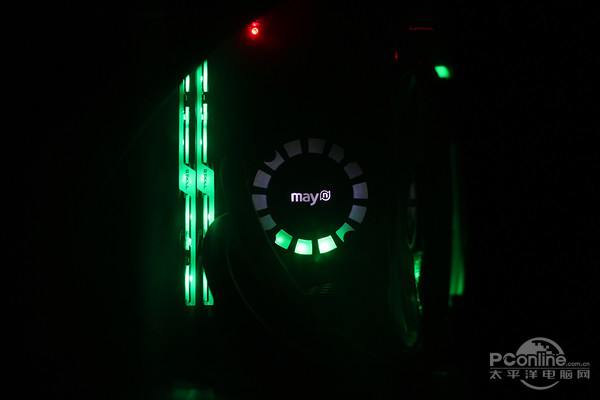

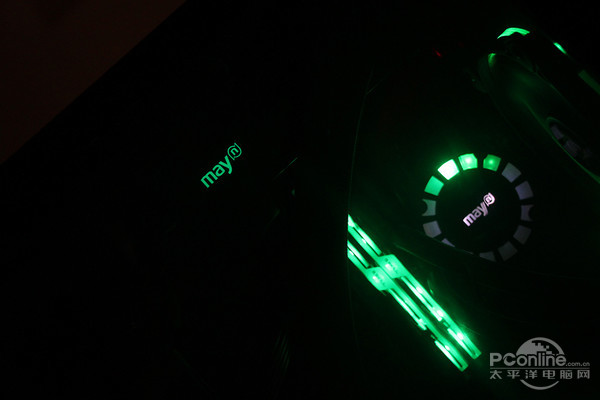

Turn off the lights
This lighting effect really is a slip, turn around ~

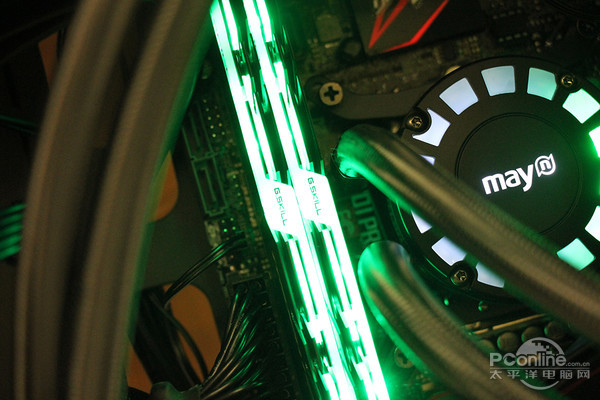

The memory is Zhiqi's green light of faith. The main board is ITX size so there are only two memory slots. A total of 16GB of dual 8GB memory is enough to satisfy all current games.

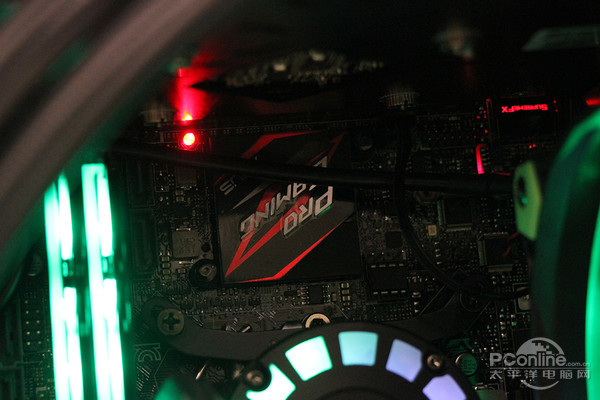

Motherboard: ASUS Z170I PRO GAMING
Due to the limitation of the chassis size, the motherboard can only use the ITX board type. The board selected here is also unambiguous, directly on the ASUS PRO GAMING series, Z170 chipset, and ample expansion capabilities (in the ITX motherboard).
I found a problem when I saw this - where does SSD go? In fact, there is an M.2 interface supporting NVMe on the back of the motherboard. Since the motherboard is cooled by various cables, the motherboard is not removed, and the SSD can be unlocked after a while.

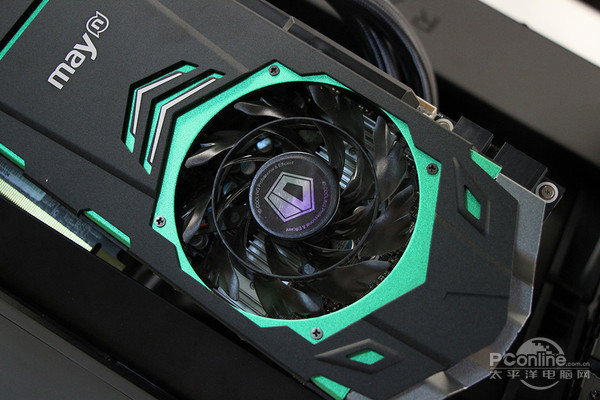

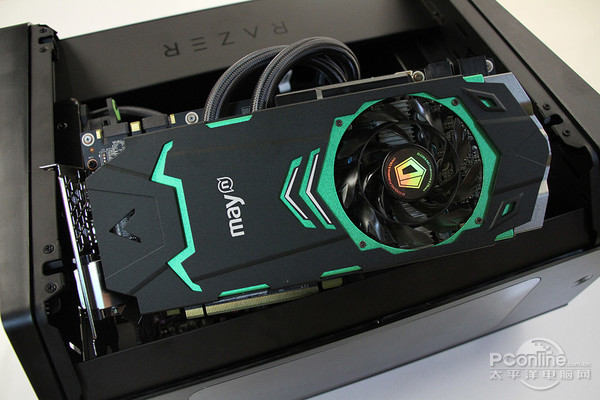

Graphics custom cooling
Radiators are all custom-made in the United States, the design is still very good, take a look at it.
Water cooled radiator

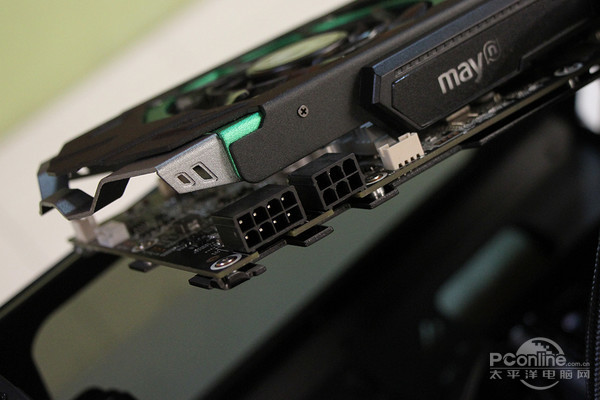

External graphics card power supply
Through the back of the PCB board, you can see the GALAXY graphics card, GTX1070 ashes without fan customization. That is, this card is specifically for other brands used to do radiator modification, or relatively rare.
ID-Cooling & Ningmei Customization
The dismantling here is almost the same, this Taiwan Ning America & Razer custom host, in fact there are many hardware brands involved in the customization, including Antec, Corsair, ID-Cooling, GALAXY, which is a comparison in the DIY host Uncommon, but it will also be a direction for high-end DIY consoles.
Most DIY hosts will have a configuration list with price, but this host may not be able to do so, because many accessories are custom-built and cannot find the corresponding model.
Anyway, the Tmall flagship store sells for 11,111 yuan, the configuration is i7-6700+GTX1070+ custom chassis + dazzling lighting effects + custom graphics + two custom integrated water-cooled radiator. If it is a similar configuration of its own, then the cost budget will be in the early 10,000 yuan, plus so much after the addition of beliefs in custom, the premium is about 1,000 yuan, do you think the value of it?
By the way, on the Tmall baby page, you can see that buying the host also sent a Razer & Ningmei custom weaving bracelet, which will surely play.
Razer & Ningmei Customized Comet Stone Bracelet
At the end of the article, we show you the bracelet. Now, let's test the host first. Of course, in fact, performance is put there, i7-6700+GTX1070 is already very high-end, and more important is to test its cooling capacity, to see if the custom water cooling is spent!
â— Performance measurement: water cooling effect is not virtual

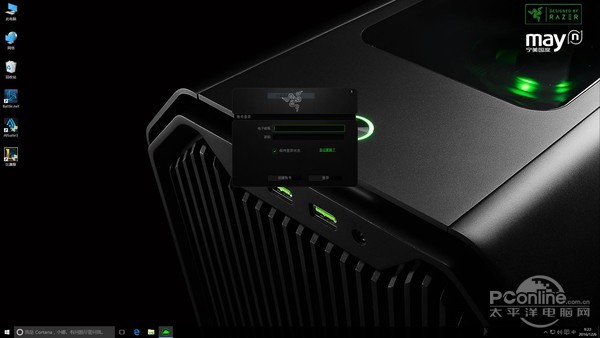

Boot interface

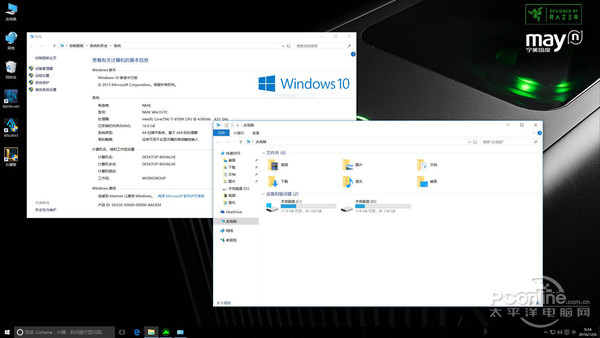

After booting, the desktop is also very large. The desktop wallpaper is the host's own photo. The first time you turn on the computer, several games are installed. And boot automatically launched a Razer software, then I will not log in, X out after the continued evaluation.
CPU and partition conditions
The CPU is the top configuration of the Skylake architecture, Intel i7-6700, running all games currently on the market will not be a bottleneck. Because there is no mechanical hard disk in terms of hard disk, there is only one M.2 SSD with a capacity of about 250 GB, which is divided into two zones.
Core hardware
CPU has been said in front, the memory is a dual 8GB dual channel, video card is a custom version of GALAXY, the frequency is slightly higher than the public version, the actual performance is in fact no difference, the difference is mainly reflected in the cooling capacity.

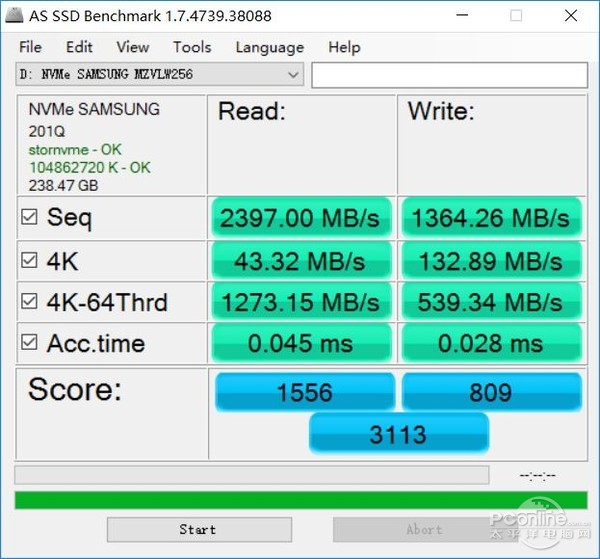

â— SSD performance measured: Samsung NVMe performance to force
The M.2 SSD is not a retail model that is circulated on the market. It is an OEM-specific model. Beastmaster's notebook is equipped with a similar SSD. Look at this SSD, performance is also very Niubi, read speed is broken 2GB/s, write speed is also 1.3GB/s, 4K read and write is also very high. High-speed reading and writing and 4K speeds are obvious for the daily experience of using computers. For example, high boot speed, fast game loading, fast software opening, and so on. In any case, this SSD will definitely not cause an experience bottleneck.
â— CPU performance measured:
The chess score of about 16,000 is the normal performance of the i7-6700K, indicating that the mainboard, CPU, and memory all have stable performance.

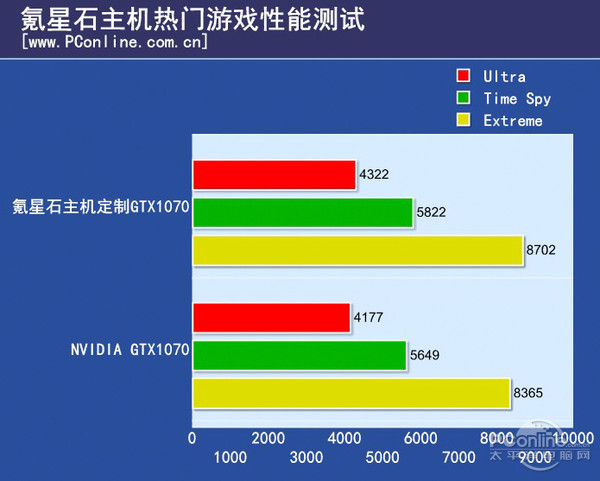

â— 3DMARK theoretical performance comparison:
It can be seen that due to the slight increase in frequency and the increase in power supply scale and radiators, the GPU running on the host computer is higher than the public version of the GTX1070. Although it looks like there are two or three hundred percent, it is actually Running the game will not be much different.

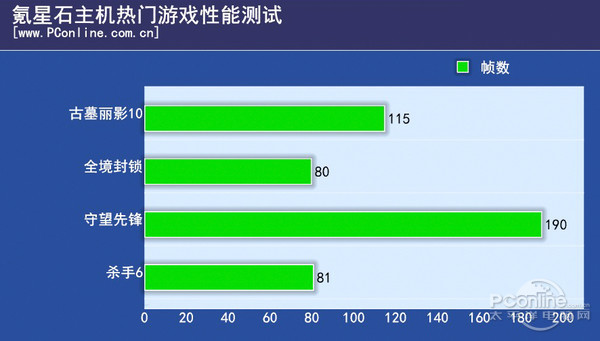

â— Game performance measured:
Simple ran several popular stand-alone games and e-sports game watch pioneers, are the highest quality 1080P, you can see this Razer & Ningmei custom comet stone host is completely free of stress running these games , then most of the games on the market can be played under high effects.
â— graphics full load temperature test:
We use the Furmark, the doughnut commonly used in the industry, to make the graphics card fully loaded and see how full the temperature is.

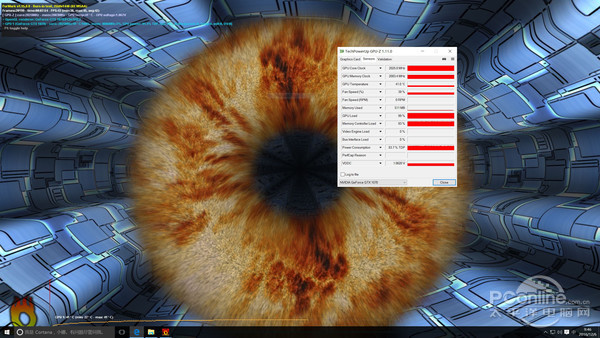

Furmark screenshot
It is now in Guangzhou, December, indoor temperature is probably more than 22 °C, after a full load for some time, the maximum temperature of the graphics card is only 41 °C, 41 °C what is the concept? Many motherboards already have this temperature when they are on standby, and it is obvious that the cooling power of this video card is very strong. I also feel a bit skeptical about this temperature figure, so turn on the GPU-Z and observe that the video card is really at full load.

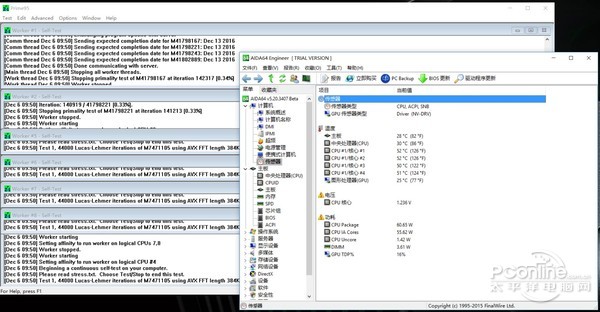

â—CPU full load temperature test:
The full load of the CPU is also Prime95, which uses the most primitive violence. After the core is fully loaded for a period of time, the maximum temperature is only 52°C, which is also very cool.
â— Test summary:
In the test section, we performed performance tests on the CPU, graphics card, and SSD respectively. Both the CPU and the graphics card showed a normal level, indicating that the major components such as the main board, graphics card, CPU, and memory all played normally, and there was no bottleneck.
Then, in order to test the stability of the machine, a full load temperature test was performed on the CPU and the graphics card. The temperature of the two devices was very, very low, and should be lower than most of the machines on the market.
â—PConline evaluation room summary:
This Ning America & Ray Snake custom comet stone MARS is very high-end in the hardware selection, i7-6700K + GTX1070 enough for players to laugh at most games.
In addition to the configuration of the high, the host still has a lot of highlights, at least, is fully reflects the Razer's best light design ~ Lighting experience accumulated in the peripherals, notebooks are well transplanted to the host body.
In the future, it is one of the main highlights of this host. The Ning America is a provider of a complete machine solution. It is good to take the custom parts because the competition is based only on purchasing and assembly. In the end, it is likely to become a price war. Imagine that in the end, A home ASUS motherboard + Asus graphics card, B home can also purchase the same accessories, and finally slowly become your cheap 50 I am cheaper 100 price Fighting, this is not good for brand management.
There are many custom-made accessories, including two heat sinks, memory modules, chassis, and graphics cards, and it is very clever to add the Ning American brand LOGO on the CPU water-cooling head and the graphics water-cooling head. Georgia, from these perspectives, this satellite has been successful as the first host of Razer and Ning.
The price, if you assemble an ordinary i7-6700K+GTX1070 host, the cost will probably be in the range of 9500~10000. The price of this customized host is more than 1K, but it includes a lot of custom parts and Razer. The premium of the brand itself is not worth considering.
However, the lack of space is not lacking, or the hard disk capacity of the e-commerce host is common. Although it is no longer a crappy 120GB level, the conventional chassis can be used to solve the capacity problem by adding mechanical hard disks in the later period. The custom-made Iridium rock host does not see the mounting position reserved for the mechanical hard disk, so it is later expanded. Hard disk, then you can only choose the "fixed location" there is no need for SATA 3.0 SSD, but the SSD unit capacity price is still high. Although about 250GB of space will not be a problem in the short term, but after one year? It may look stretched.
â—Finally: Razer & Ning US Custom Meteor Stone Bracelet
Now you can buy this Starfish MARS custom host to send this bracelet. It feels only suitable for Ray Snake fans. It's a bit weird when I go out → _→
Looked at watching a bit familiar, the original Pacific Internet APP side of the integral mall has this thing!
