Molex's EXTreme GuardianTM power connector system now offers two to six circuit harness component versions

Harness probe HRS150-H can be customized for other specifications

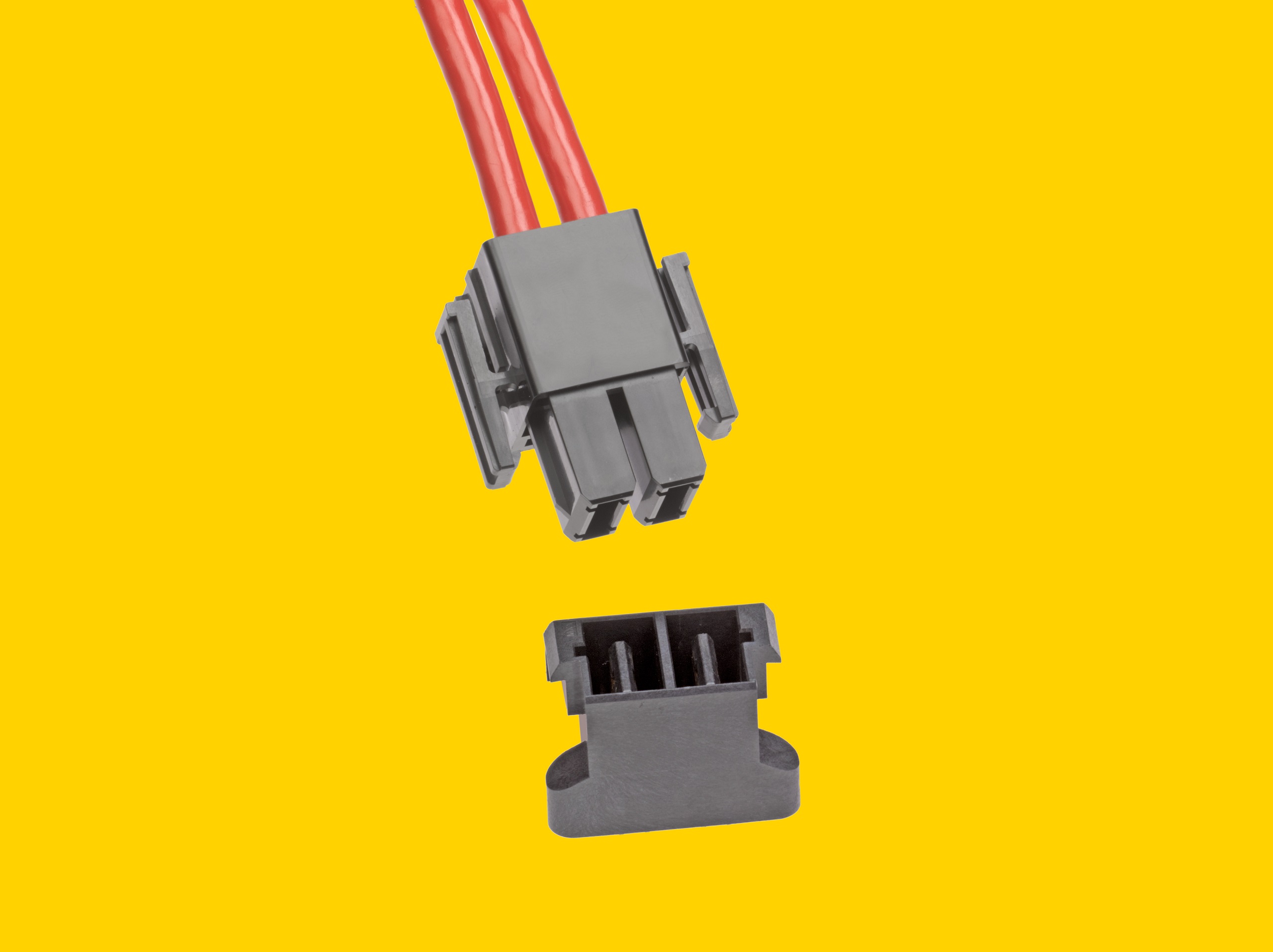

Molex Corporation announces the addition of 2, 3, 4, 5 and 6 circuit harness connector assemblies for the EXTreme GuardianTM power connector system. These new components include uncoated self-locking cable socket housings, terminal positioning assembly hooks (TPAs), and self-locking vertical and right angle plugs, providing more options for power supply manufacturing to meet high power densities in the computing and communications markets. Design needs. The system delivers 80.0A per blade (185.0A per inch) with minimal form factor, while providing electromagnetic interference (EMI) and radio frequency (RFI) shielding.

Jeff Torres, global product manager at Molex, said: "The growing demand for computing power is putting more and more pressure on manufacturers to deliver higher power. At the same time, sub-components are required for reliable, highly redundant power supplies. Occupying less and less physical space, the EXTreme Guardian solution is designed to meet these challenges by meeting the high power requirements of today's network and data communications equipment while achieving a very small midline spacing of 11.00mm, compared to traditional Compared to the power supply, the size of the printed circuit board can be greatly reduced."

The EXTreme Guardian solution is UL and CSA certified, capable of handling voltages up to 600V, supporting high voltages, while possible voltage drop and I2R (irreversible dissipated power) losses can be kept to a minimum. The product features recessed recessed terminals and four level-of-layer plug-in (FMLB) for heat exchange of power supply units and network downtime. Printed circuit board connectors use positioning hooks for precise through-hole positioning of the connector on the board and additional manufacturing options including through-hole soldering and press-fitting. The wire crimp terminal accepts 10, 8, 12/12 or 6 AWG wires, and the terminal positioning assembly (TPA) option minimizes terminal exit problems, while the integral mortise lock secures the cable. Free of accidental disconnection.
