Seventh-generation Kaby Lake architecture Pentium G4560 unpacking the first sun, by the way Hengping evaluation intel nuc5PPYH
Reasons to purchaseRecently, I was asked by a friend to buy a computer for the elderly at home. I was asked to check the news on the Internet and look at the video. The host computer was as small as possible, and it was better to be quiet. Originally prepared to directly buy intel nuc, because his own home in 2016 installed an intel nuc5PPYH. As a result, intel just launched its seventh-generation Kaby Lake architecture processor. This is the toothpaste factory's good-heartedness. For the first time, it has decentralized Hyper-Threading to a Pentium-class processor. This is the following product:
domestic
New starting: intel Intel Pentium Pentium G4560 CPU 499 yuan shipping dual-core four threads, cost-effective than i3. Tmall SiZe digital franchise store sells for 499 yuan, Pentium new product of Intel KabyLake architecture starts, dual-core four thread, the performance rises gratifyingly. Value Friends broke the original: Hyper-threaded Pentium boxed, 3.5G, four-thread Pentium G4560 is Intel's KabyLake architecture under the CPU products, 14nm process, LGA1151 interface, began shipping in the first quarter of 17 years. Compared to Tullahán Turalyon| towards 373 Comments 283 Collection 196 Direct Links View details Originally wanted to wait for the Jingdong shelves, the results wait until the Chinese New Year, Jingdong has not put on the seventh generation of Pentium, no way, and finally bought in Taobao.
G4560_ Taobao search Pentium G4560s.taobao.com direct link Choosing the cpu leaves the motherboard, memory, hard drive chassis, and the like. Saying that since December last year, Aunt Zhang has seen valued friends drying ASRock deskmini110.
I put the host in the bag: ASRock ASRock DeskMini 110 STX platform installed record In my previous notebook purchase article, I said that college students must be very careful when buying a notebook. Otherwise, it is likely to bring about tragedy and helplessness. #Opening season#Preparing for the opening season! University freshman laptop selection strategy # starting season # preparation for the opening season! University freshman laptop selection Raiders ... long warning ahead! One may never finish reading. Suggest everyone can... Go-on| Likes 159 Comments 212 Favorites 624 View Details
1.92L Palm Pocket Office Machine - ASRock Deskmini STX Barebones Installation Test Preface: Just a few days ago just finished the "8L Xiaoqiang", the previous review see: the first trial itx steel gun host - my mini agent i7+1060" 8L Xiaoqiang "Installed show # original innovator # first trial itx steel gun host - my mini agent i7 + 1060 # original innovator # first trial itx steel gun host - my mini agent i7+1060"8L Xiaoqiang" installed s.... .JoeLeeYN| Likes 67 Comments 101 Collections 391 View Details
Mini cannon - Deskmini 110 host solar and Intel I5-7500 running points, buying reasons worth visiting a day to buy, see the value of friends Go-on sun list, after reading suddenly want to buy a small host Use, usually pay little attention to hardware, the occasional use of a laptop at home, found that for several years did not pay attention, and now the host can actually do so small, in addition NVME interface is really too advanced. The landlord has been using a laptop, and the home-use notebook has been in use for four years. It can also be updated. There are two main reasons why you want to change the sub-hosts. | Like 36 Comments 106 Favorites 165 View Details
Not much talk, and quickly get on the train, by the way, and I bought intel nuc5PPYH a year ago to be a comparative evaluation.
The configuration is as follows:
CPU: Seventh Generation Kaby Lake Architecture Pentium G4560
Wikipedia Intel Intel Pentium Pentium G4560 CPU Pentium G4560 is Intel's Kaby Lake architecture CPU product, 14nm process, LGA1151 interface, began shipping in the first quarter of 17 years. Compared to the Pentium series CPUs of the previous generation Skylake architecture, this generation of Pentium high-end models was upgraded to a dual-core, four-thread design. The G4560 is one of them. The decentralization of Hyper-Threading technology to the Pentium series means a tremendous increase in performance. G4560 Running at Value 16 Reviews 0 Original 0 Good 1 Direct Access View details Barebone system: ASRock deskmini
ASRock DeskMini 110/COM (Intel H110/LGA 1151) 999 yuan ASRock DeskMini 110/COM is a machine that locates commercial machines, strictly speaking, it is actually a commercial machine chassis and a Mini-STX motherboard. Small space has gained a volume advantage, only 1.92L inside, but the graphics card basically do not have to think. Internal H110 motherboard, support LGA1151 specifications of the CPU, choose a variety, but the cooling fan also need to buy their own. With two DDR4 Jingdong direct links to Wikipedia Memory: Gloway DDR4 8G 2133 notebook memory
Glouway DDR4 8G 2133 notebook memory 329 yuan Jingdong direct link The hard disk is the Flash Di 240G

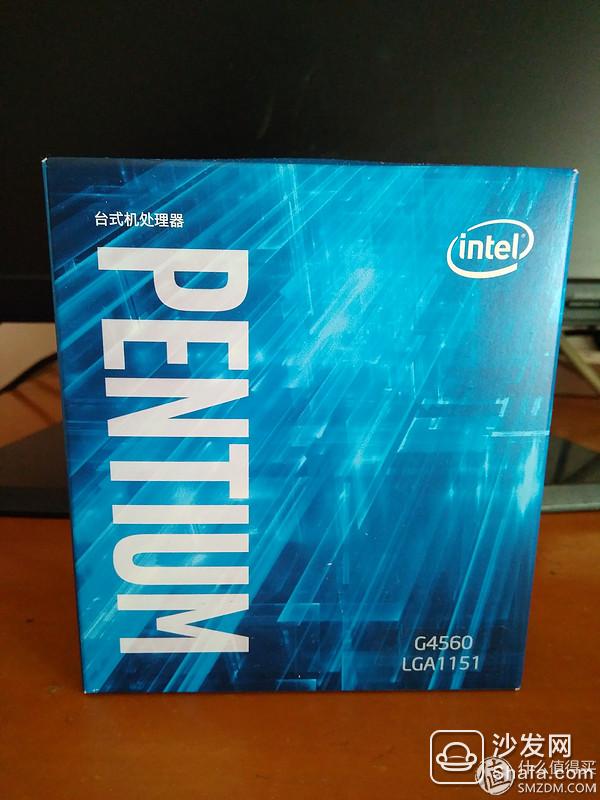

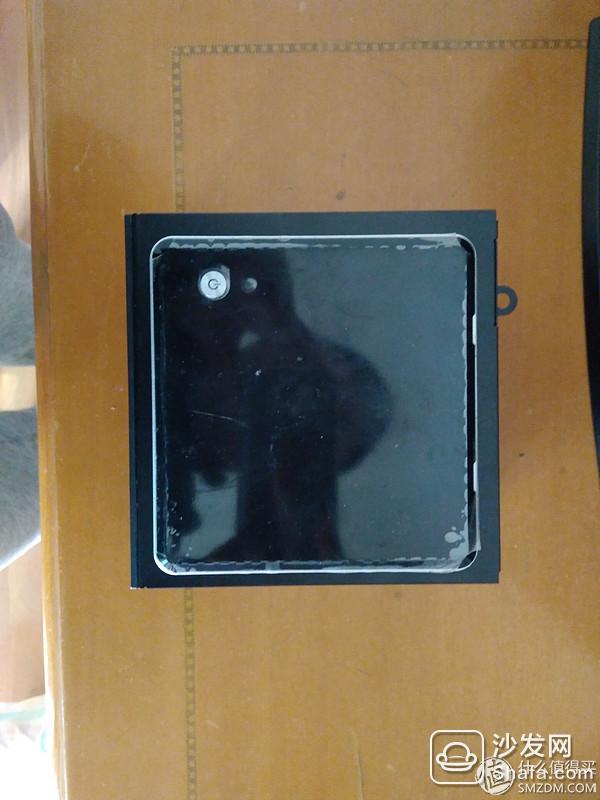

Appearance GalleryOne day after the order was placed, it was delivered and opened.

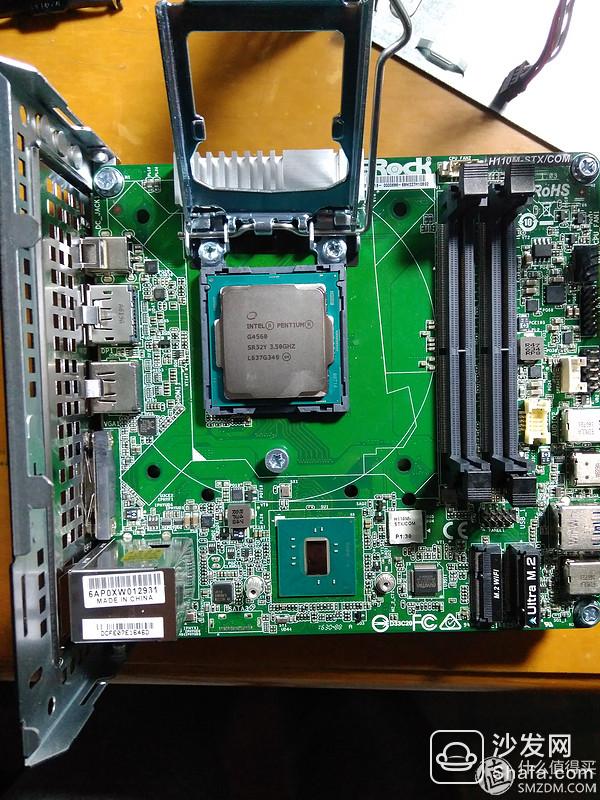

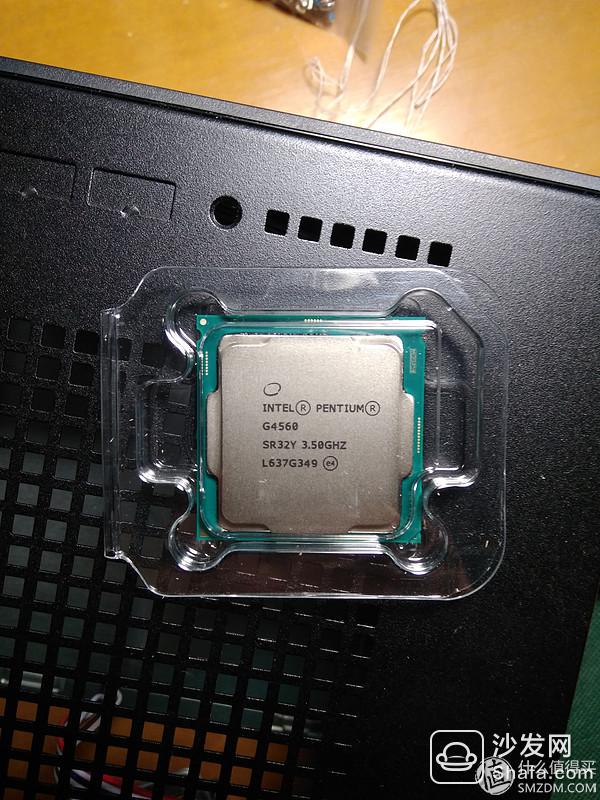

CPU:

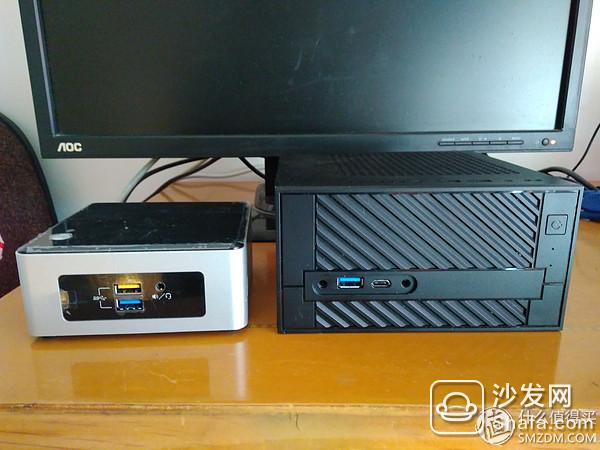

Not much to say nonsense, Bahrain machine and intel nuc5PPYH put together to compare:

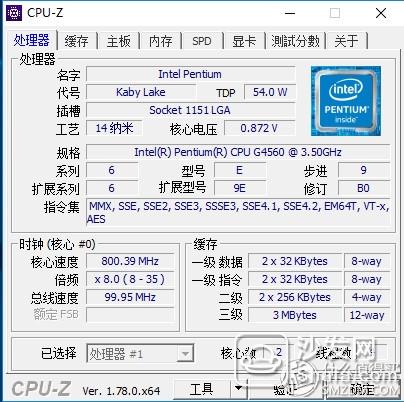

Not much to say, put on the system, use cpuz to identify the body:
Haha, 4 threads.
Now and intel nuc5PPYH to be a comparative evaluation, because there is a Dell-3158 notebook CPU is I3 6100U, by the way together to compare. In advance description: intel nuc5PPYH and Pentium G4560 are newly installed clean system and then run points, Dell3158 too lazy to reload the system directly to run points, non-rigorous evaluation, entertainment only, for your value friend reference.
The three machines are configured as follows:

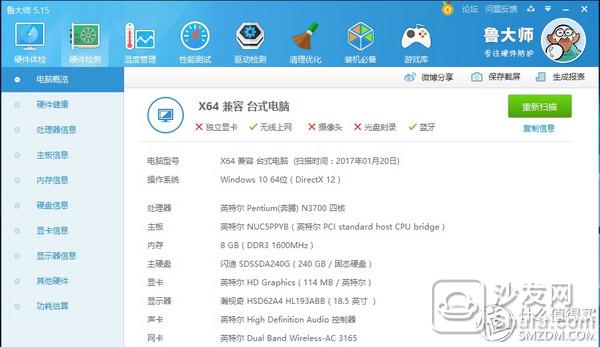

Intel nuc5PPYH
Pentium G4560

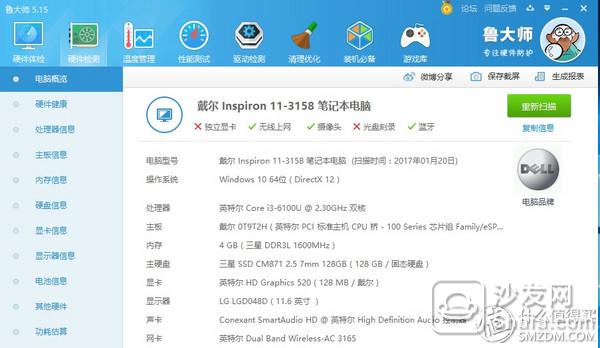

DELL 3158
First, Cpuz run points:
N3700-CPUZ
Running the N3700-CPUZ

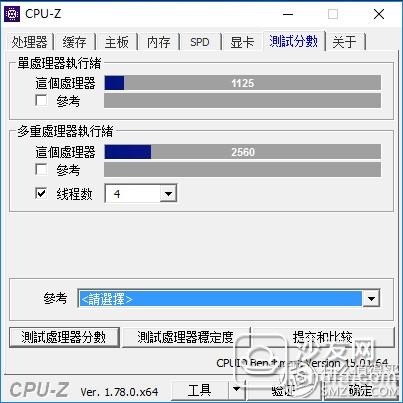

G4560-CPUZ
G4560-CPUZ running points
I3 6100U-CPUZ
I3 6100U-CPUZ running points
CPUZ run points Hengping

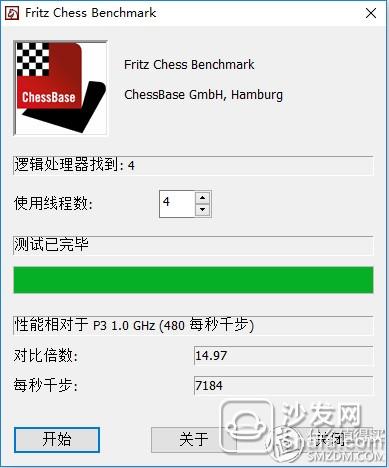

Second, chess:
N3700 Chess
G4560 Chess
I3 6100U Chess
Chess running points
Because of the limited time, but also installed this Pentium G4560 did not play the game's needs, so there is no nuclear display 610 game running points, hope you forgive me.
To sum up, personal experience, if you don't like it, just spray it, haha.
About the seventh-generation Kaby Lake architecture Pentium G4560, this is the Pentium-class CPU for the first time to eat hyper-threading. Judging from the CPUZ's running points, compared with the previous generation Pentium G4500 single-core score is basically the same, multi-core score is 15% higher than the previous generation Pentium G4500, and the box price Pentium G4560 and Pentium G4500 only a difference of 20 yuan, the price advantage is obvious, very It is worth starting with.
Comparison between G4560 and G4500
If you are not in a hurry, you can wait for the Pentium G4600 or Pentium G4620 official version of the full release of the market, and now the price of boxed Pentium G4600 or Pentium G4620 too pit father.
About ASRock deskmini110, individuals are very satisfied. The size is similar to intel nuc, but the advantages are as follows:
First, the upgrade space is large: the intel desktop-class cpu support for the 1151 interface below 65W, from Celeron to I7, Fengyi by people, there is always a suitable for you. In contrast, intel nuc, you buy a Pentium level, can you upgrade to the canyon?
Second, the space advantage: radiator tolerance, the original box fan adapter no problem. Three HDDs hung up NUC;
Third, the performance advantage: desktop-class CPU hanging mobile-class CPU, not BB directly to see points;
Fourth, the price advantage: According to Jingdong calculated the next price, made the following comparison:
1500 yuan level:
Intel NUC5PPYH mini smart computer (Pentium quad-core N3700 processor): 1299 yuan
Pentium G4560 boxed + ASRock deskmini: 479+999=1478 yuan
The price difference is 200 and the performance is double.
2500 yuan level:
Intel NUC6I3SYH mini smart computer (Core i3-6100U processor): 2499 yuan
I5-7500 boxed + ASRock deskmini: 1579+999: 2578 yuan
With a price difference of 100, the desktop-grade I5 is a mobile grade I3.
More than 3500 yuan level:
Intel NUC6i5SYKL mini smart computer (Core i5-6260U processor): 3599 yuan
Intel NUC6I7KYK Mini Smart Computer (Core i7-6770HQ Processor) 骷髅 4991 yuan
I7-7700 boxed + ASRock deskmini: 2499+999=3498 yuan
The performance is comparable to the canyon, the price is only equivalent to i5-level NUC.
Finally, thank you all for reading the full text and wishing a happy New Year! All the best!
