The semi-module, full module and non-module of the computer power supply: the semi-module is soldered on the power supply that must be used by some computers (CPU8P and motherboard 24P can not be removed), and the extended power supply line can be plugged in or removed as needed. under.
All modules are all plugged in with all the wires, all of which can be removed.
For non-modules, the output lines are all soldered to the board and cannot be removed.
What does the module power supply mean?In the computer power supply, two types of non-module power supply and modular power supply are mainly used, and the module power supply includes a full-module power supply and a semi-module power supply.
First of all, the non-module power supply and the module power supply are identical in internal structure and function. They are all computer power supplies, and the functions are all for the computer. The only difference is that the module power supply adopts modular interface output, which is designed with power and power lines separated. The power supply provides interfaces and power lines, and users can connect and use according to requirements.

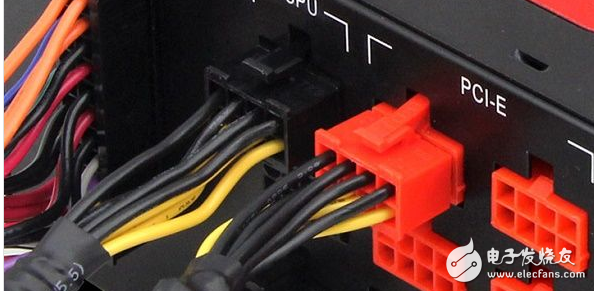

Module power supply provides power output interface
The non-module power supply is like this. The power cable is directly led out from the power supply. The output cable is fixed. Only a few wires can be used to connect several wires. The use is limited. For example, if a computer uses a graphics card, a hard disk, or a motherboard to supply power, but the output power cable is a lot, it will be confusing. In addition, in some high-end computers, if there are many hard disks and dual graphics cards, and the general non-module power supply output lines are few, it is easy to cause the power supply interface to be insufficient.

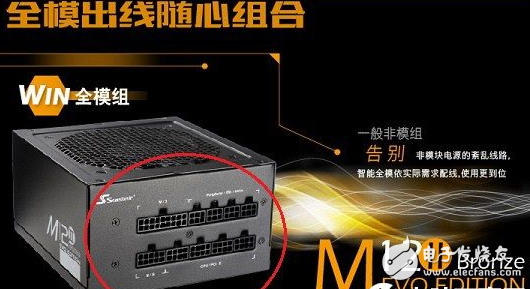

Full module power supply
Therefore, we can simply regard the module power supply as a high-profile version of the non-module power supply. It adopts a snap-on interface design. The power cable and the power supply itself can be freely disassembled and opened independently to help users install and use on demand, provide power supply interface and Power cords, users can be combined according to actual needs, can make the wire more concise or expand more powerful.
